StarTech.com

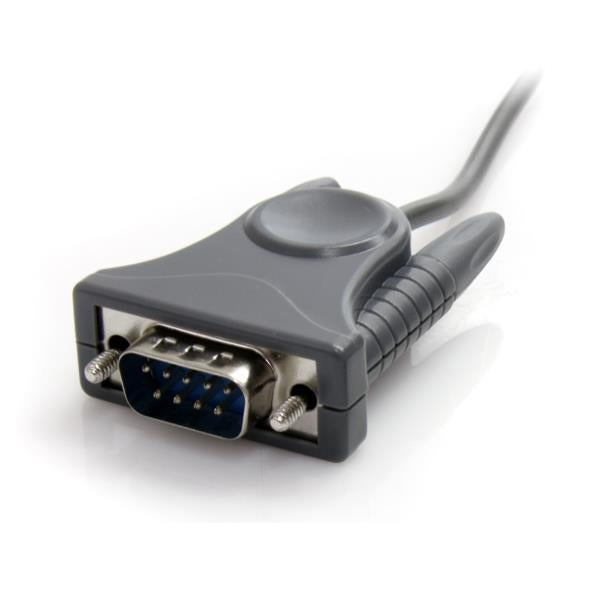

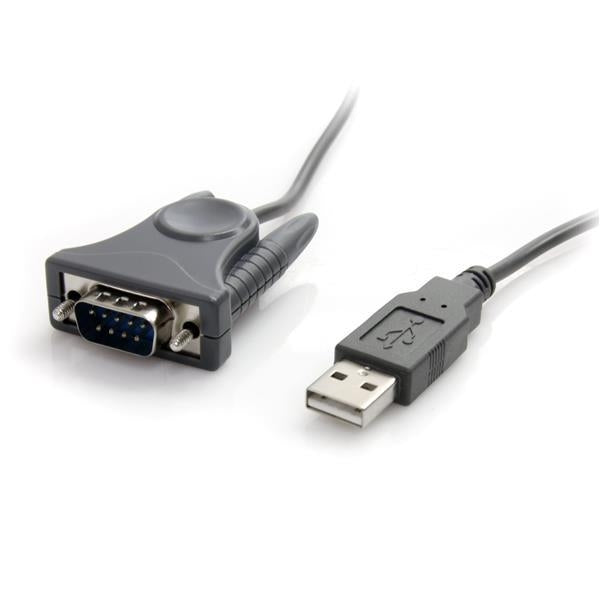

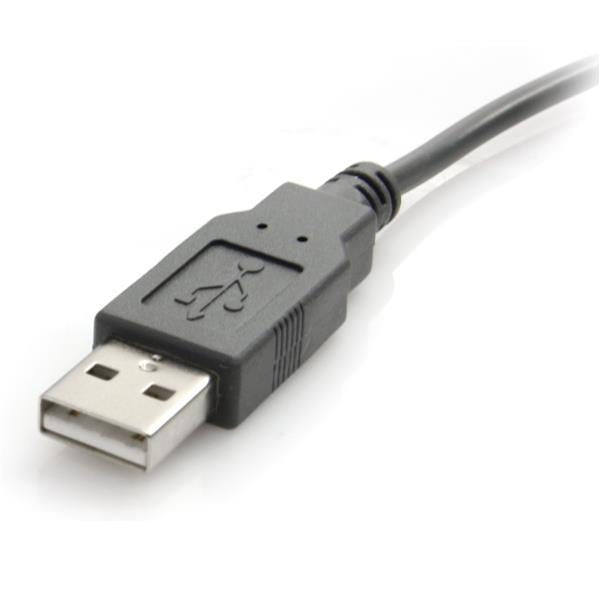

StarTech Cable USB to RS232 DB9/DB25 Serial Adapter Cable Retail (ICUSB232DB25)
$31.98 CAD
/
Shipping calculated at checkout.
Item model number: ICUSB232DB25
- USB powered; No external power adapters needed
- Supports serial transfer speeds up to 250Kbps

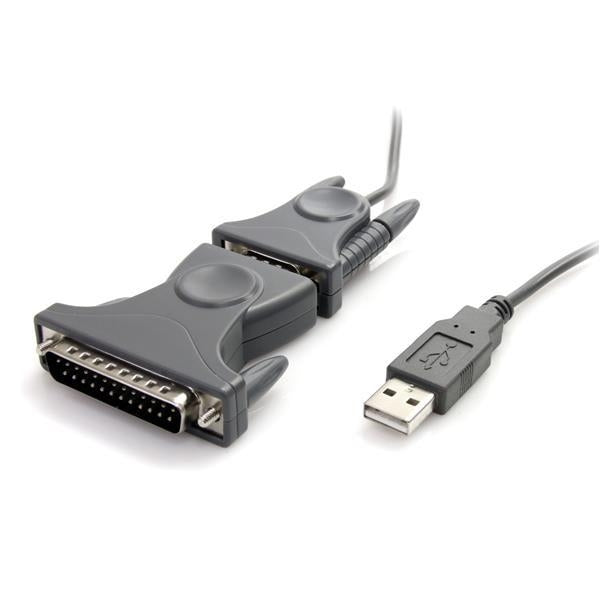

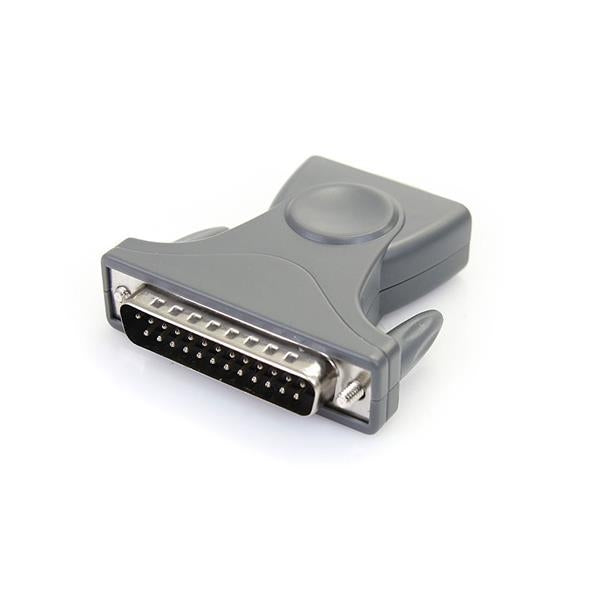

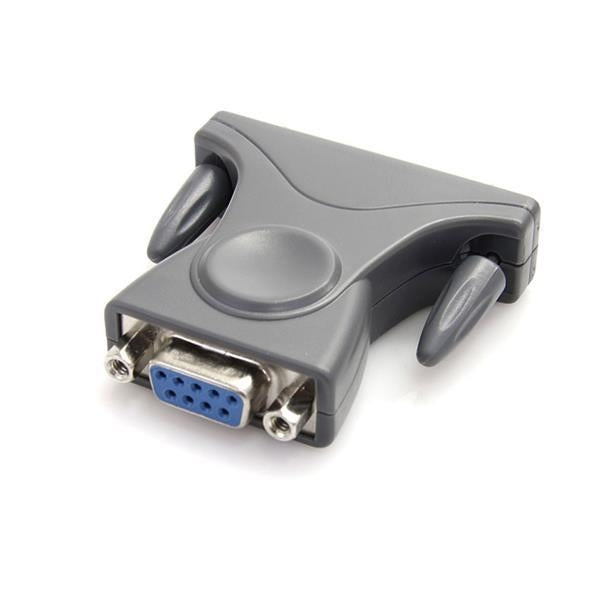

- Includes a DB9 to DB25 pin adapter for 25-pin RS232 serial communication
- Supports USB transfer speeds up to 12Mbps
- Plug-and-Play and Hot Swap Support
- Windows certified (WHQL) drivers
- 3ft cable length
- Supports remote wake-up from Modem input signals and USB power management
- Compliant with USB Rev. 2.0 Full-Speed specification
- Electronics Industries Association (EIA) standard RS-232-C compliant
- USB to Straight-Through RS232 Serial Adapter
Specification
| Ports & interfaces | |||
|---|---|---|---|
| Gender | Male/Male | Connector 1 | USB 2.0 |
| Connector 2 | DB-25 + DB-9 | ||
| Design | |||
|---|---|---|---|
| Cable length | 0.9 m | Material | Plastic |
| Colour of product | Grey | ||
| Performance | |||
|---|---|---|---|
| Baud rate | 230.4 Kbit/s | Data bits | 4, 5, 6, 7, 8 |
| FIFO (First In, First Out) | 512 B | Flow Control type | N, XON/XOFF |
| Stop bits | 1, 1.5, 2 | Chipset | Prolific - PL-2303 |
| Performance | |||
|---|---|---|---|
| Compatible operating systems | - Windows PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10 - Windows Server 2003, 2008 R2, 2012, 2016 - Mac OS X 10.6 to 10.12 - Linux 2.4.x to 4.4.x LTS Versions only | Parity bit | Even, Mark, N, Odd, Space |
| Operational conditions | |||
|---|---|---|---|
| Operating temperature (T-T) | 0 - 70 °C | Relative humidity | 5 - 85% |
| Storage temperature (T-T) | -40 - 85 °C | ||
| Weight & dimensions | |||
|---|---|---|---|
| Weight | 70 g | ||
| Packaging data | |||
|---|---|---|---|
| Package weight | 90 g | Package height | 137.5 mm |
| Package depth | 175 mm | Package width | 37.5 mm |

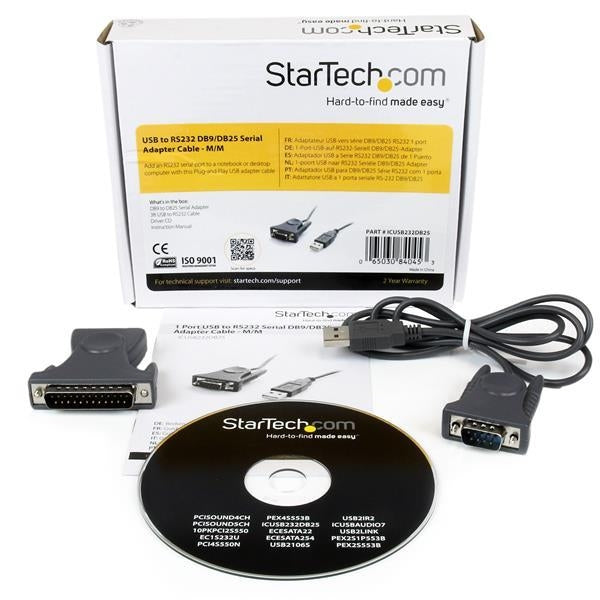

| Packaging content | |||
|---|---|---|---|
| Manual | Yes | Drivers included | Yes |
