Item model number: MXT101MMHQ75
  • Triple-coaxial + twisted-pair wire for crystal clear display

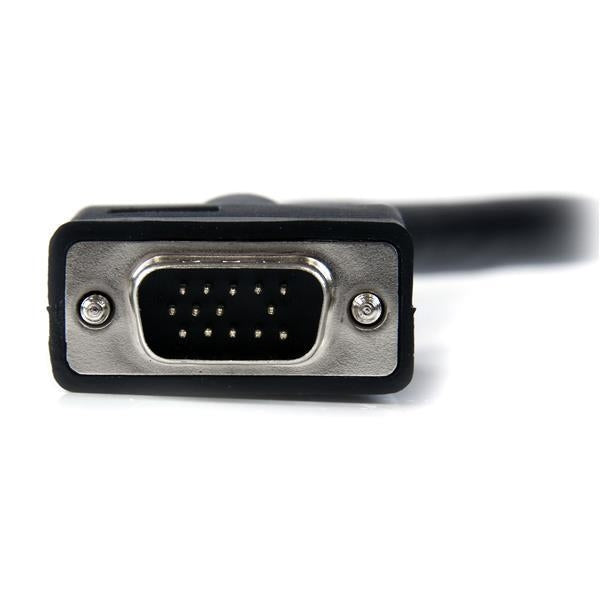

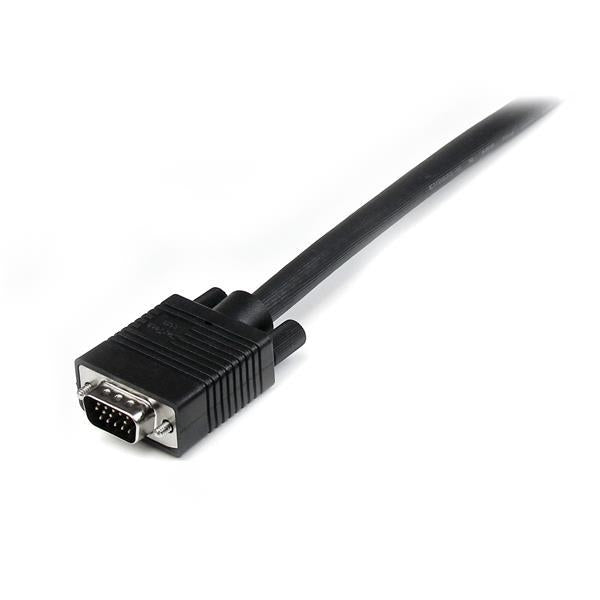

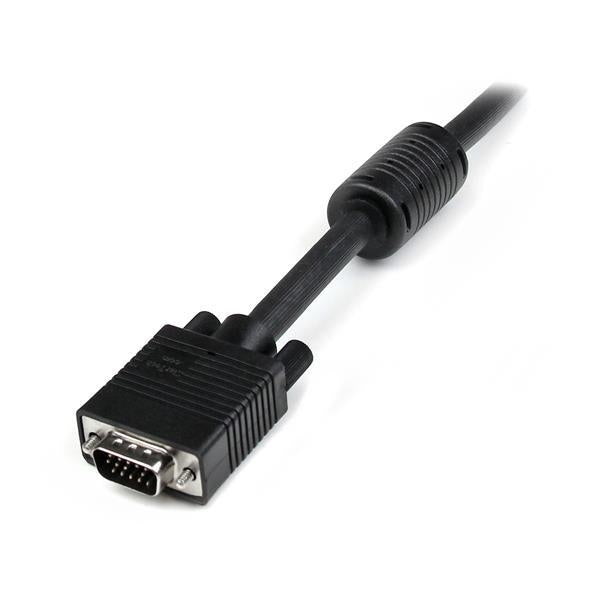

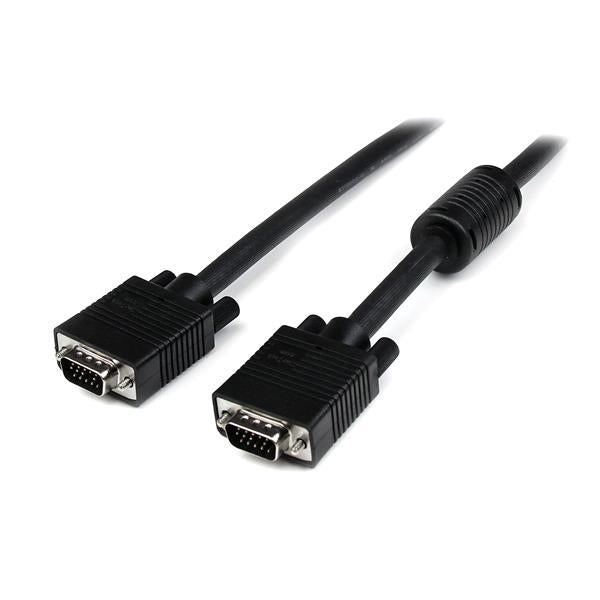

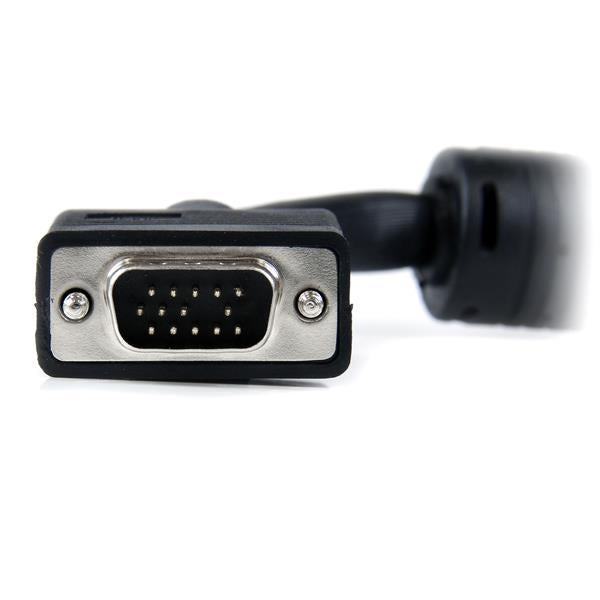

  • Durably constructed cable, with high quality HD15 connectors
  • Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor

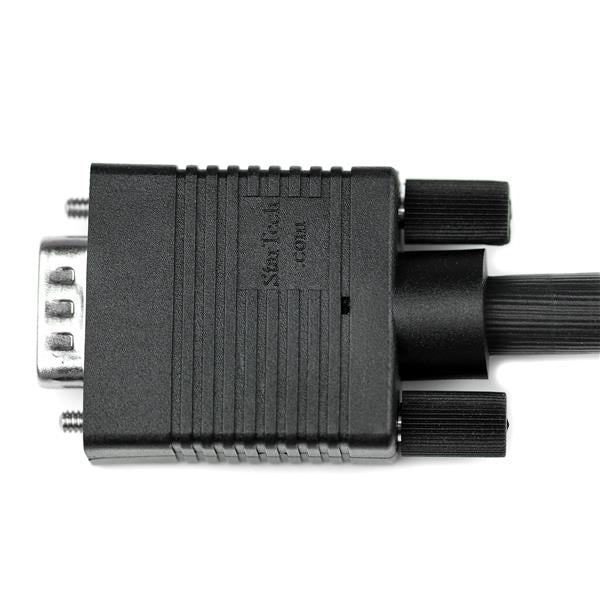

  • High quality VGA connectors with molded PVC strain relief




Features
Jacket material Polyvinyl chloride (PVC) Cable length 22.9 m
AWG wire size 28 Gender Male/Male
Connector contacts plating Nickel Colour of product Black
Connector 1 VGA (D-Sub) Connector 2 VGA (D-Sub)
Certification UL2919
Operational conditions
Operating relative humidity (H-H) 0 - 80% Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) -20 - 80 °C
Weight & dimensions
Package height 460 mm Package depth 353 mm
Package width 70 mm Weight 2.5 kg
