Item model number: MDP2DVIMM6BS

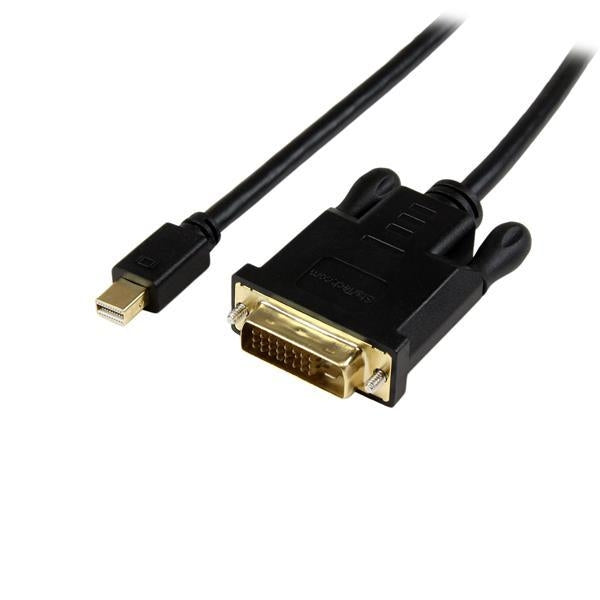

  • Active Mini DisplayPort to DVI conversion

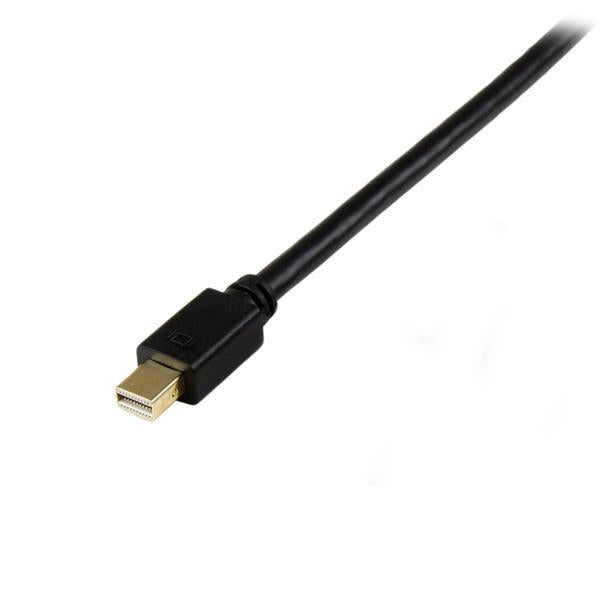

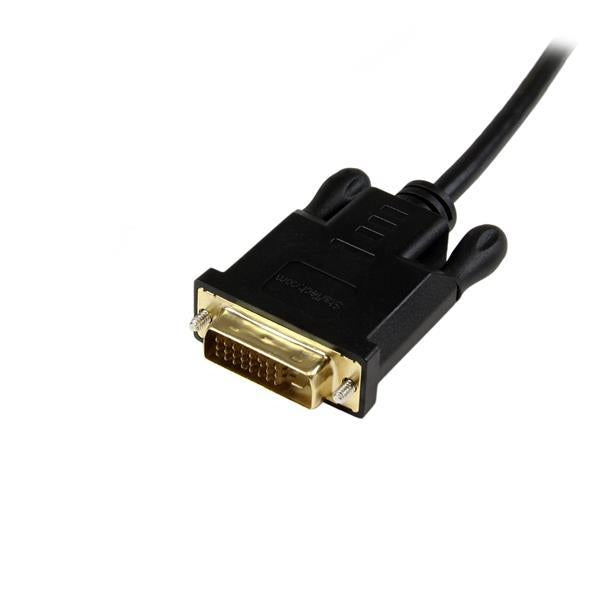

  • 1x Male DisplayPort connector, 1x Male DVI connector
  • Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal
  • Supports resolutions up to 1920 x 1200
  • Plug-and-play Installation




Features
Converter type Active Supported graphics resolutions 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Maximum resolution 1920 x 1200 pixels Connector 1 gender Male
Cable length 1.8 m Connector 2 gender Male
Connector 1 form factor Straight Plug and Play Yes
Connector 2 form factor Straight RoHS compliance Yes
Colour of product Black Connector 1 Mini DisplayPort
Connector 2 DVI-D Chipset PS171A
Certification CE, FCC
Operational conditions
Operating relative humidity (H-H) 40 - 85% Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) -10 - 70 °C
Weight & dimensions
Width 40 mm Package weight 123 g
Package height 20 mm Height 16 mm
Package depth 220 mm Depth 1855 mm
Package width 200 mm Weight 119 g
Packaging content
Quantity per pack 1
