Item model number: ICUSB422

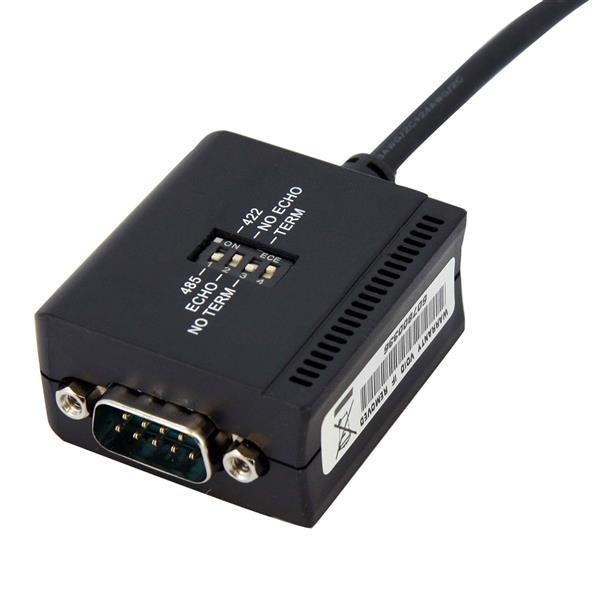

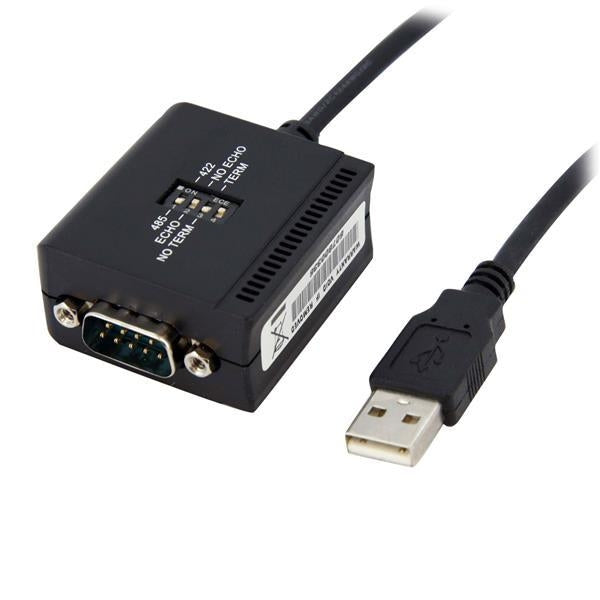

  • USB to Straight-Through RS422/485 Serial Adapter
  • Supported baud rates from 300bps to 921.6 Kbps
  • Being able to rename devices no matter how many are plugged in
  • Supports COM Port retention
  • Configurable port for RS422 or RS485 support
  • Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware
  • Backwards compatible with USB 1.1
  • Integrated adapter and cable eliminates the need for additional cables
  • Two interface modes; 4 wire RS422(TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-)

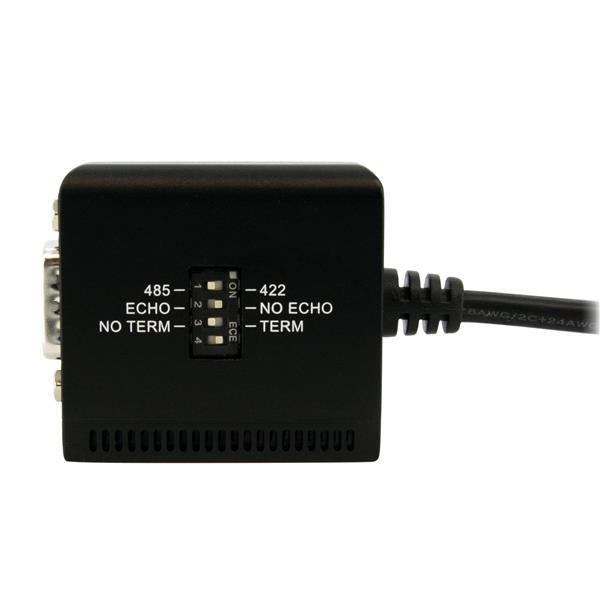

  • 120 OHM terminator that can be Enabled/Disabled by DIP switch
  • Transmission Echo for RS485 collision detection




Ports & interfaces

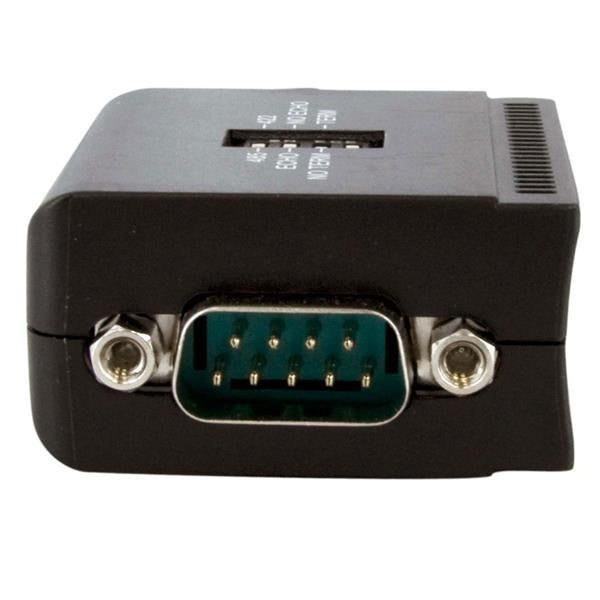

Gender Male/Female Connector 1 DB9 M

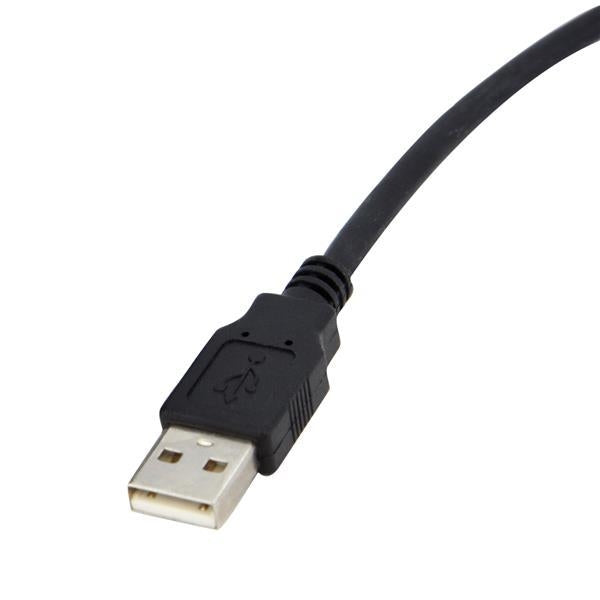

Connector 2 USB-A FM
Design
Cable length 1.8 m Colour of product Black
Weight & dimensions
Weight 100 g
Packaging data
Package length 23 cm Package height 160 mm
Package depth 230 mm Package width 40 mm
Other features
Minimum system requirements Win 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ 2008(32/64bit)/ CE(4.2/5.2/6.0) Mac 9.8/OS X Linux 2.4.x + Dimensions (WxDxH) 41.5 x 1778 x 22.1 mm
