Item model number: DISPLPORT3L
  • High-resolution support of up to 4k x 2k
  • Support for High Bit Rate 2 (HBR2) bandwidth of up to 21.6 Gbps
  • Supports the DPCP (DisplayPort Content Protection) standard in addition to HDCP
  • Backward compatible with DisplayPort 1.1
  • Designed and manufactured to DisplayPort standards

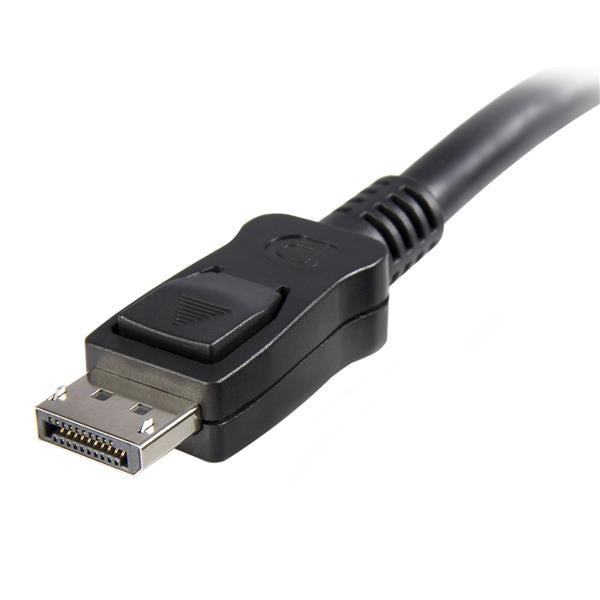

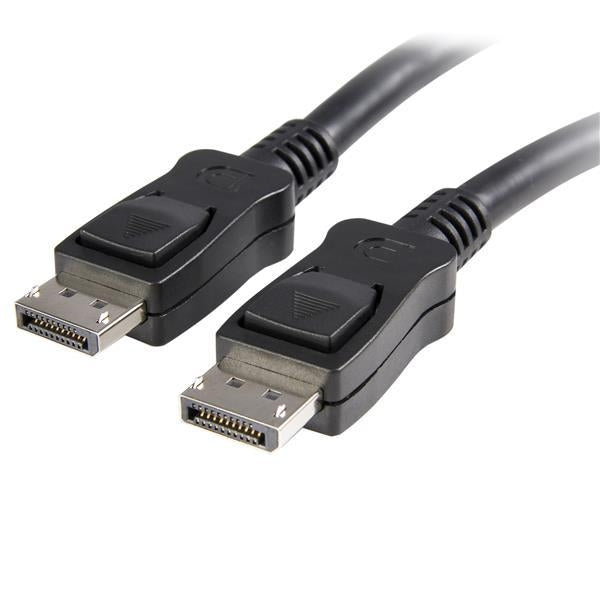

  • Molded latching connectors with strain relief




Features
Jacket material Polyvinyl chloride (PVC) Cable shielding Aluminum mylar foil
Latching connectors Yes Connector 1 gender Male
Cable length 0.9 m DisplayPort Content Protection (DPCP) Yes
AWG wire size 30 Connector 2 gender Male
Connector contacts plating Nickel Cable rating CMG (CM)
Colour of product Black Connector 1 DisplayPort
Connector 2 DisplayPort DisplayPort version 1.2
Features
Data transfer rate 21.6 Gbit/s HDCP Yes
Maximum resolution 4096 x 2160 pixels Plug and Play Yes
RoHS compliance Yes Number of conductors 19
Weight & dimensions
Package weight 90 g Package height 159 mm
Package depth 157 mm Package width 24 mm
Cable diameter 6.5 mm Weight 65 g
Packaging content
Quantity per pack 1
