Item model number: ICUSB232V2

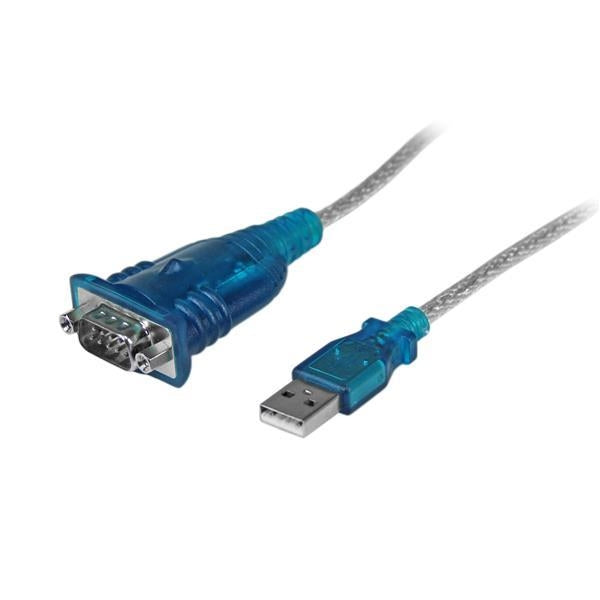

  • USB to Straight-Through RS232 DB9 Serial Adapter
  • High-speed 921.6Kbps Baud Rate
  • Compatible with Windows® 8, Mac OS X® and Linux
  • Compatible with USB 1.1 or higher ports
  • USB-powered - no external power adapter required
  • Single cable, small footprint design for portability




Ports & interfaces

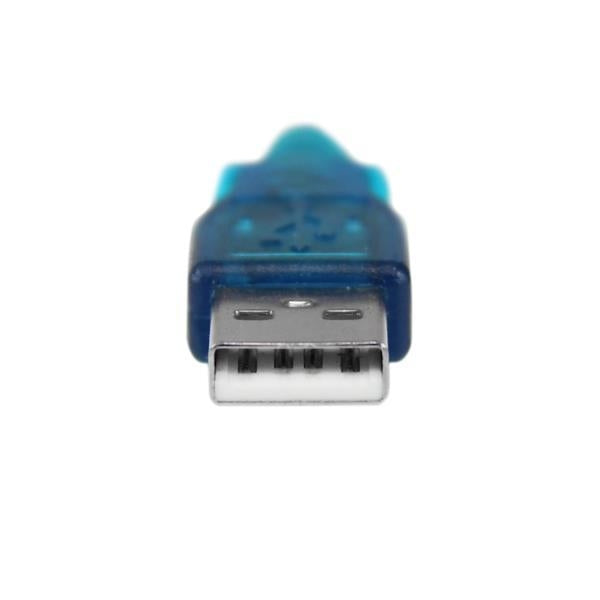

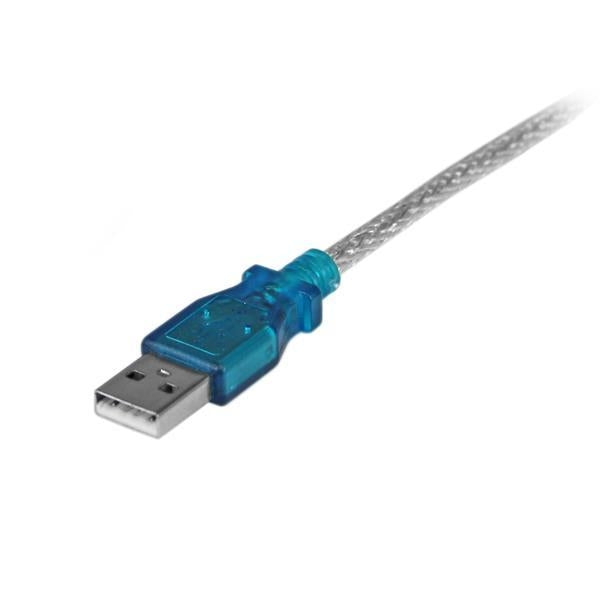

Gender Male/Male Connector 1 USB2.0 A

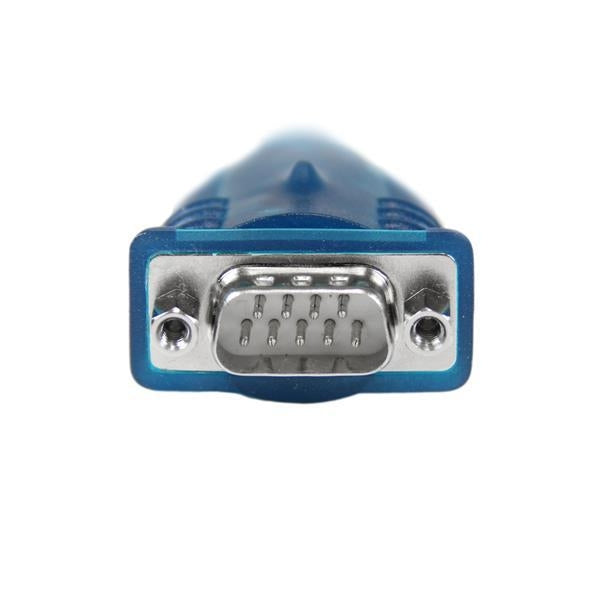

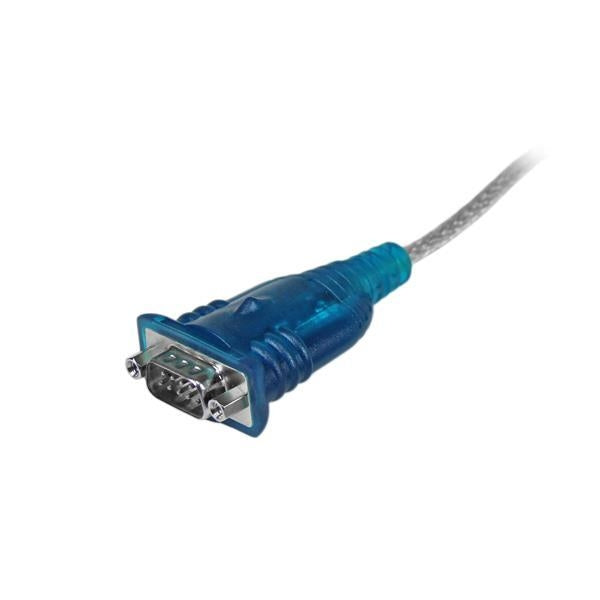

Connector 2 RS232 DB9
Design
Cable length 0.43 m RoHS compliance Yes
Colour of product Blue, Silver Certification Microsoft WHQL, CE, FCC
Performance
Data bits 5, 6, 7, 8 FIFO (First In, First Out) 512 B
Flow Control type N, RTS/CTS, XON/XOFF Compatible operating systems - Windows 2000, XP, Vista, 7, 8, 8.1, 10 - Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016 - Mac OS 9.x, 8.x, 10.6 to 10.12 - Linux 2.4.31 to 4.4.x LTS
Stop bits 1, 1.5, 2 Chipset Prolific - PL2303RA
Performance
Parity bit Even, Mark, N, Odd, Space
Operational conditions
Operating temperature (T-T) 0 - 60 °C Relative humidity 0 - 65%
Storage temperature (T-T) -20 - 80 °C
Weight & dimensions
Width 35 mm Height 20 mm
Depth 430 mm Weight 52.5 g
Packaging data
Package weight 62.5 g Package height 20 mm
Package depth 220 mm Package width 200 mm

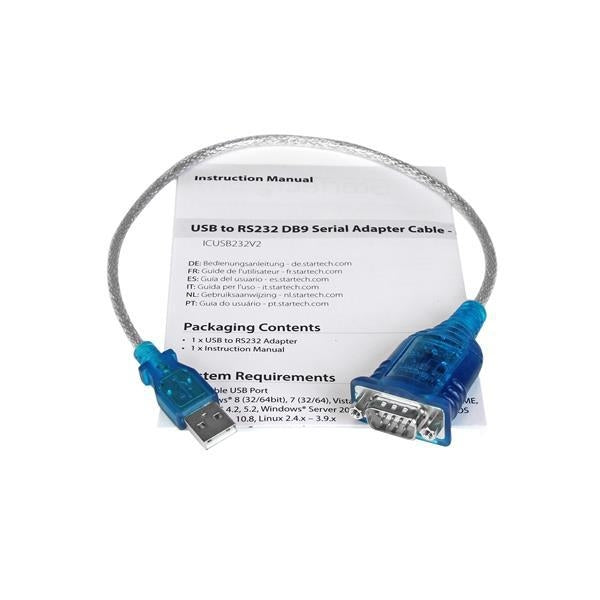

Packaging content
Manual Yes Quantity 1
