Item model number: ICUSB2321X

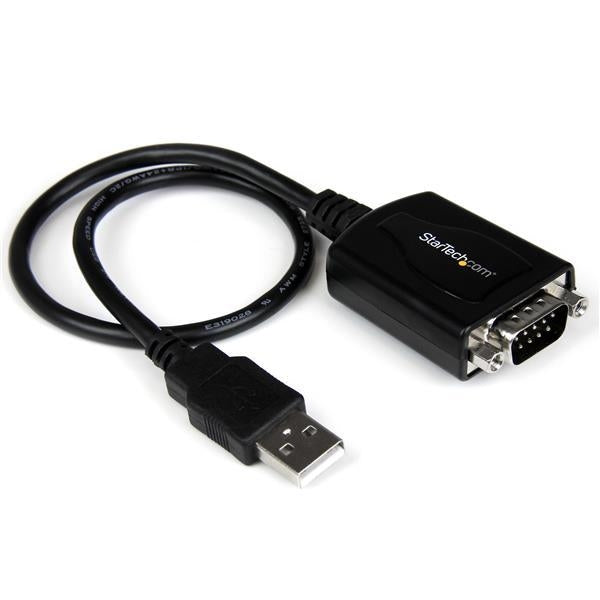

  • USB to Straight-Through RS232 Serial Adapter
  • COM Port assignments maintained across reboot
  • Single cable design for portability
  • Baud Rate up to 230 Kbps
  • Powered by an available USB port - no external power adapter required
  • Designed to make serial port expansion quick and easy
  • Provides dual buffers for upstream and downstream data transfer
  • Supports automatic handshake mode
  • Enables and disables enumerations




Ports & interfaces

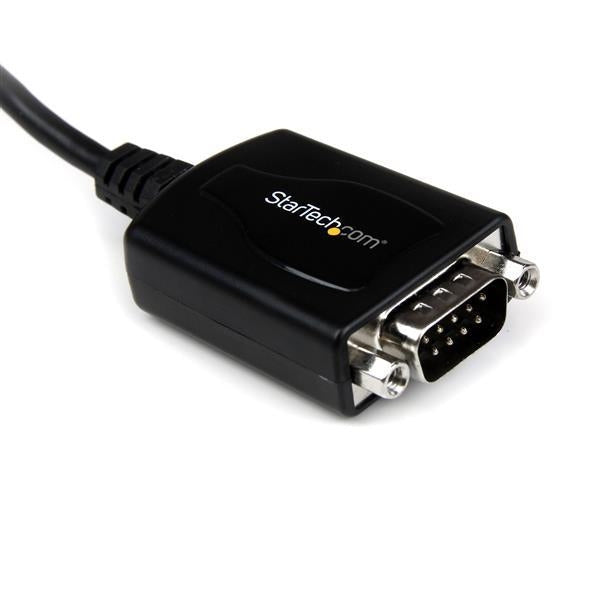

Gender Male/Male Connector 1 DB-9

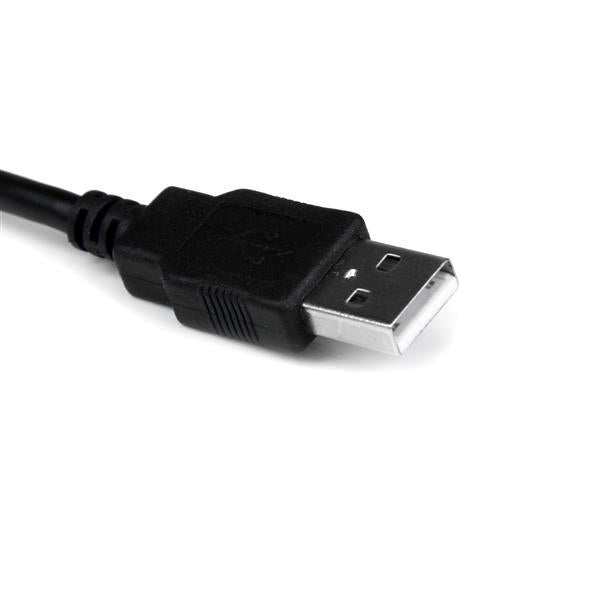

Connector 2 USB 2.0 A
Design
Cable length 0.42 m RoHS compliance Yes
Material Plastic Colour of product Black
Certification CE, FCC
Performance
Baud rate 230.4 Kbit/s FIFO (First In, First Out) 32 B
Compatible operating systems - Windows XP, Vista, 7, 8 - Windows Server 2003, 2008 R2, 2012, 2016 Chipset Texas Instruments - TIUSB3410
Operational conditions
Operating temperature (T-T) -10 - 80 °C Relative humidity 5 - 85%
Storage temperature (T-T) -20 - 100 °C
Weight & dimensions
Width 35 mm Height 13 mm
Depth 420 mm Weight 33.4 g
Packaging data
Package length 8.15 mm Package weight 100 g
Package height 135 mm Package depth 207 mm
Package width 35 mm

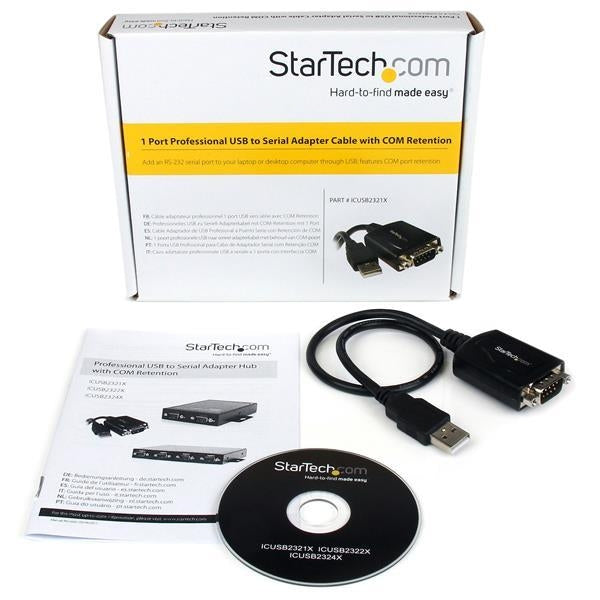

Packaging content
Manual Yes Drivers included Yes
