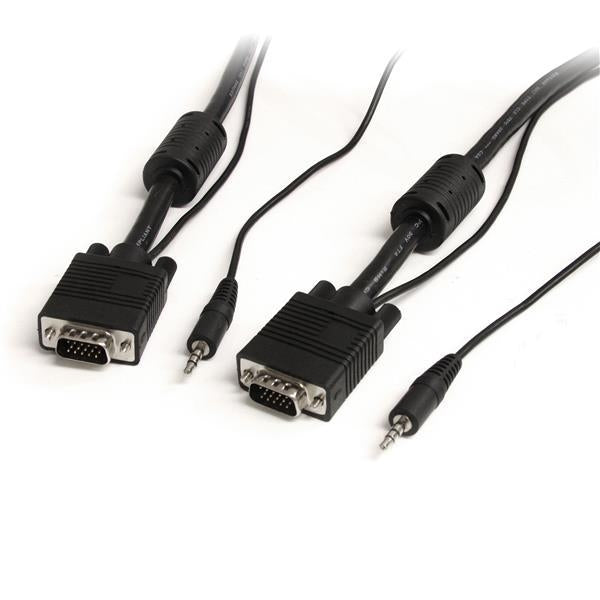

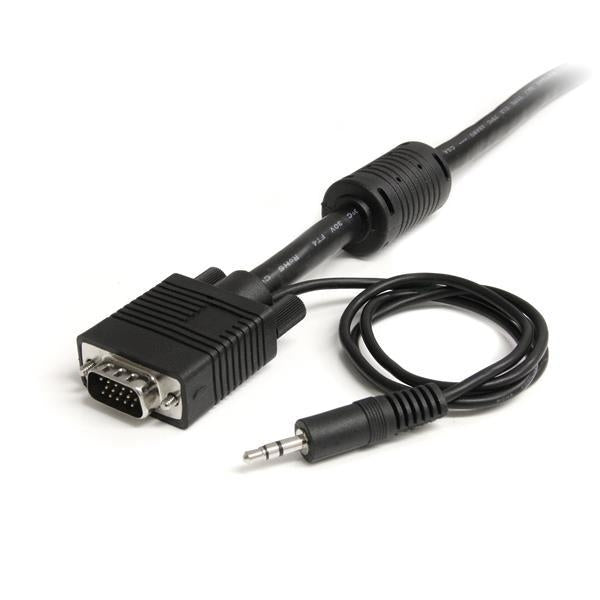

Item model number: MXTHQMM15A
  • Triple-coaxial + twisted-pair wire for crystal clear display
  • Impedance matched at 75 Ohms for full brightness and vibrant picture color
  • Molded connector ends with strain relief
  • Ferrite core eliminates EMI interference




Features
Cable length 4.57 m Gender Male/Male
Connector contacts plating Nickel Colour of product Black
Connector 1 VGA (D-Sub) + 3.5mm Connector 2 VGA (D-Sub) + 3.5mm
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Operational conditions
Operating relative humidity (H-H) 0 - 80% Storage temperature (T-T) -20 - 80 °C
Weight & dimensions
Package weight 568 g Package height 40 mm
Package depth 330 mm Package width 255 mm
Weight 550 g
