Item model number: ST122UTPA

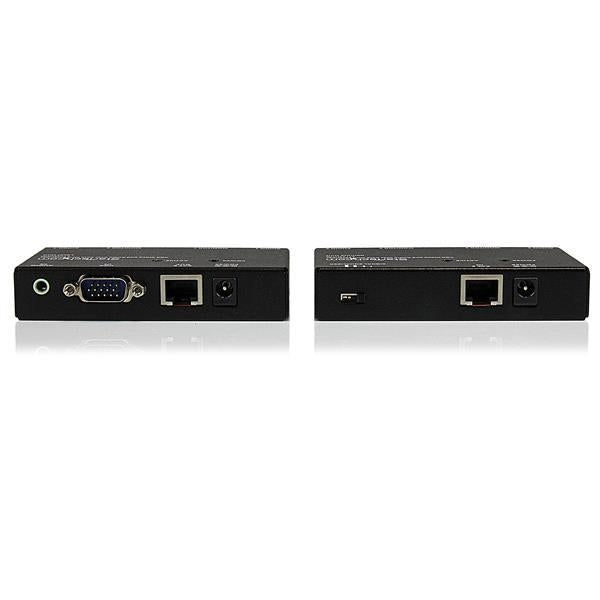

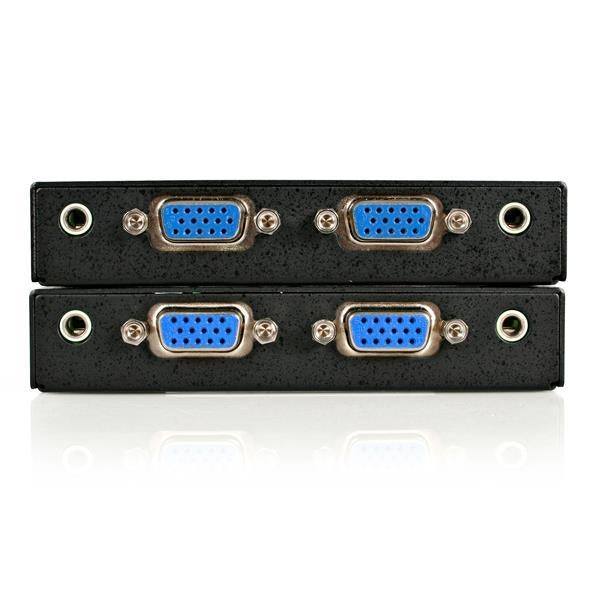

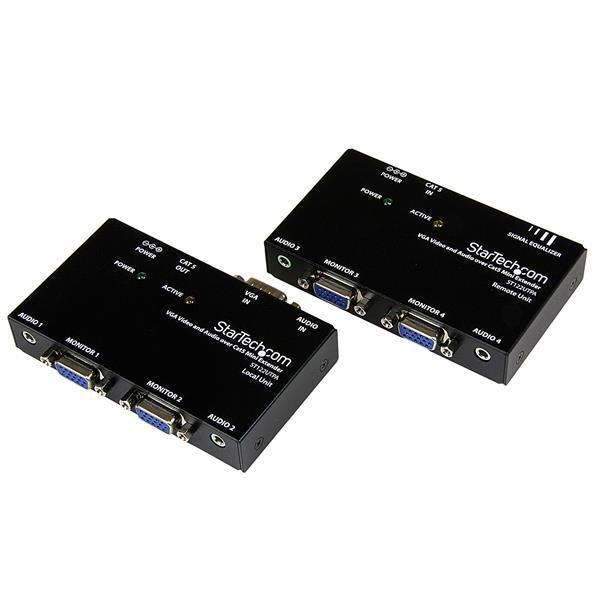

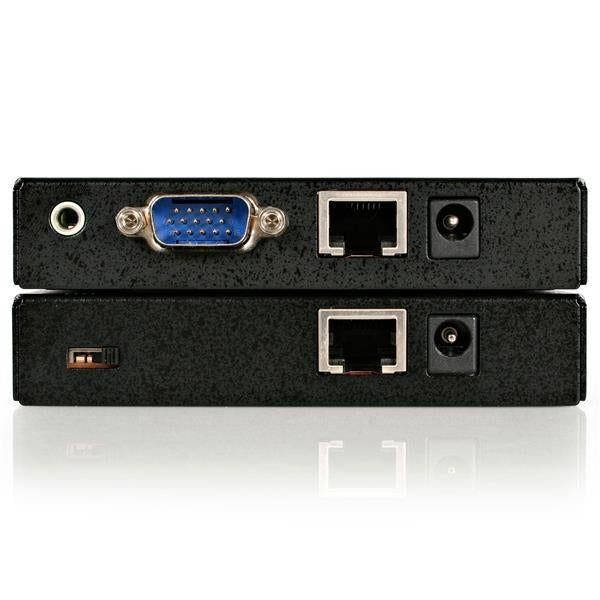

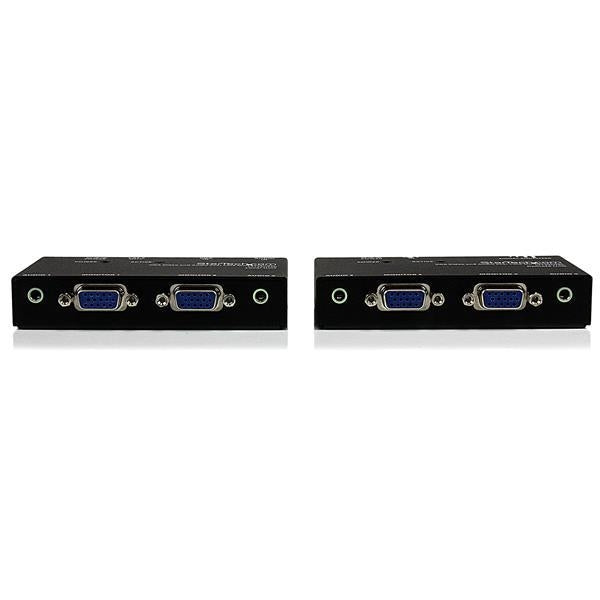

  • Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
  • Extends VGA and analog audio up to 500ft / 150m
  • Included mounting brackets
  • Pure hardware design, no software or drivers required
  • Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission




Technical details
Supported graphics resolutions 1024 x 768 (XGA),1280 x 1024 (SXGA),1440 x 900 Daisy chain No
RoHS compliance Yes Material Aluminium
Audio support Yes Maximum transfer distance 150 m
Colour of product Black Cable types supported Cat5e,Cat6
Type AV transmitter & receiver Certification CE, FCC
Ports & interfaces
VGA (D-Sub) input ports 2 RJ-45 output ports 1
Audio output 2 x 3.5 mm VGA (D-Sub) output ports 2
Audio input 2 x 3.5 mm RJ-45 input ports 1
Ports & interfaces
DC-in jack Yes
Power
Output current 0.5 A External power adapter Yes
Operating voltage 12 V Power consumption (typical) 6 W
Weight & dimensions
Receiver dimensions (WxDxH) 83 x 60 x 20 mm Transmitter dimensions (WxDxH) 83 x 60 x 20 mm
Transmitter weight 181 g Receiver weight 181 g
Packaging data
Package weight 1.2 kg Package dimensions (WxDxH) 92 x 242 x 188 mm

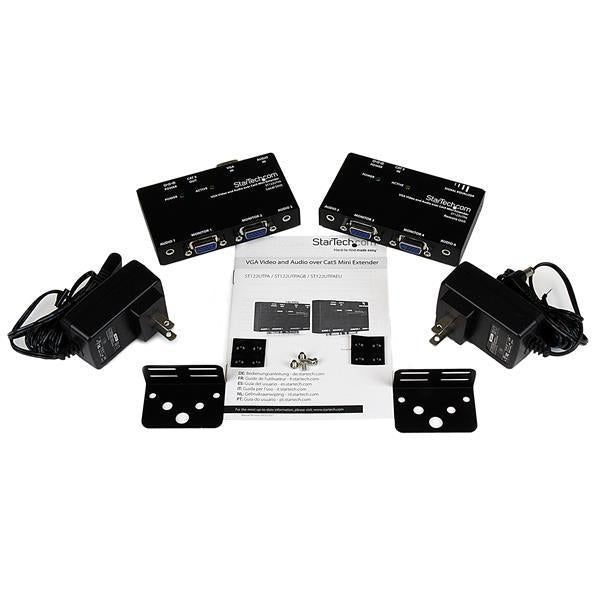

Packaging content
Manual Yes Mounting brackets included Yes
AC adapter included Yes
