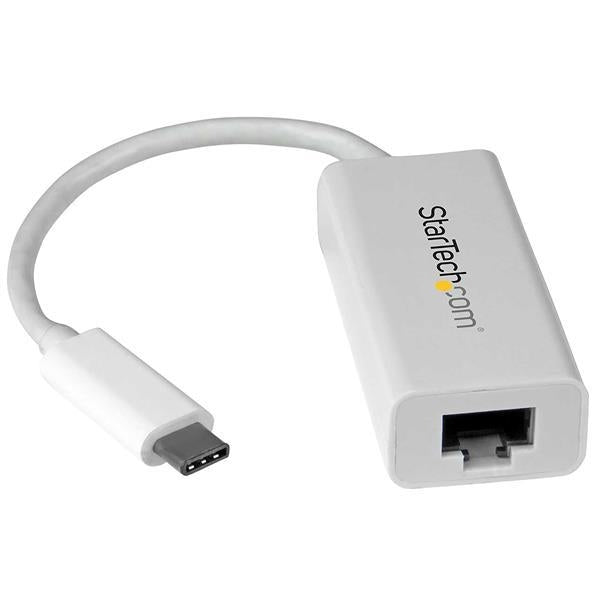

Item model number: US1GC30W
  • Add a Gigabit Ethernet network connection to your computer through the latest USB 3.1 Gen 1 (5 Gbps) technology and USB Type-C
  • Works with the newest MacBook, Chromebook Pixel™and other laptop and desktop computers with a USB-C port
  • Thunderbolt 3 port compatible
  • Native driver support in Chrome OS™, Mac OS 10.10, Windows® 8.1 for easy set-up
  • Powered directly from the USB port
  • Compact, lightweight design for maximum portability
  • Supports 10/100/1000 Mbps auto-detection
  • IEEE 802.3, 802.3u and 802.3ab compatible
  • IEEE 802.1Q VLAN Tagging support
  • Built-in Checksum and Large Send Offload
  • Up to 9K Jumbo Frame support
  • Wake-On-LAN support
  • IEEE 802.3az Energy Efficient Ethernet support




Ports & interfaces
Ethernet LAN (RJ-45) ports 1 USB version 3.0 (3.1 Gen 1)
Internal No Interface Ethernet
Connectivity technology Wired Host interface USB
Bandwidth
Full duplex Yes Data transfer rate (max) 5000 Mbit/s
Networking
VLAN tagging Yes Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000BaseT(X) Ethernet LAN Yes
Jumbo frames 9000 Jumbo frames support Yes
Networking standards IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u Chipset Realtek RTL8153
Ethernet LAN data rates 10,100,1000 Mbit/s
Power
USB powered Yes
Design
Housing material Plastic Colour of product White
Performance
Wake-on-LAN ready Yes
Performance
Mac operating systems supported Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks Linux operating systems supported Yes
Server operating systems supported Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012 Auto MDIX IEEE Yes
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Weight & dimensions
Width 25 mm Package weight 92 g
Package height 30 mm Height 15 mm
Package depth 170 mm Depth 210 mm
Package width 140 mm Weight 24 g
Certificates
Certification CE, FCC RoHS compliance Yes
Operational conditions
Operating relative humidity (H-H) 5 - 90% Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -10 - 80 °C
