Item model number: ARMSLIM

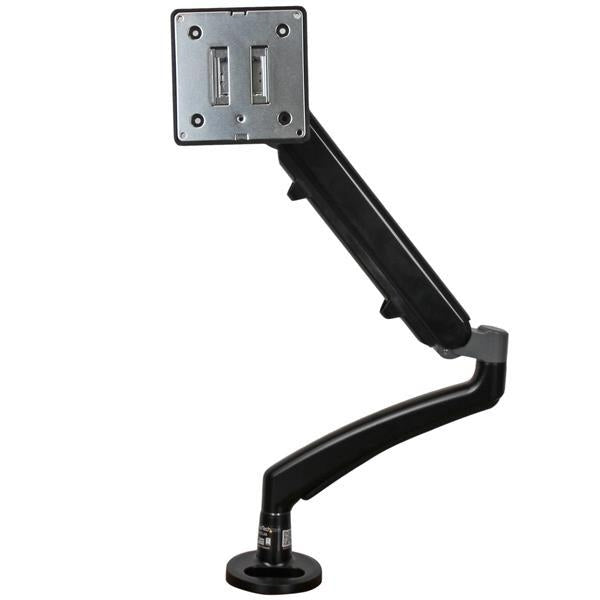

  • Slim, articulating monitor arm with a wide range of motion
  • Spring-assisted height adjustment
  • TAA compliant for GSA Schedule purchases
  • Supports displays from 12 to 26” (15lbs / 7kg capacity)
  • 360° rotation around the support post and at the elbow

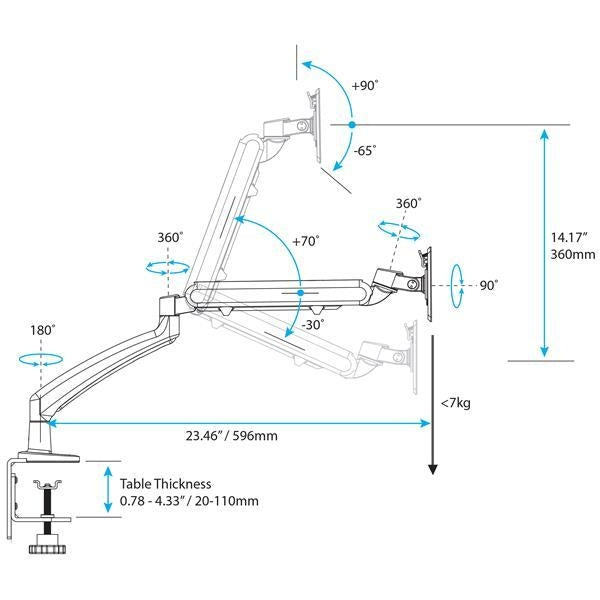

  • +90° / -65° Tilt and 360° Pan
  • Maximum arm extension of 23.46in (596mm)

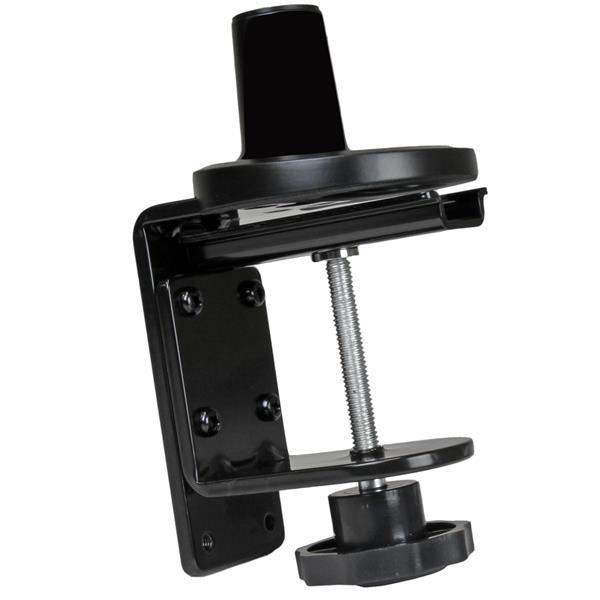

  • Includes convertible desk / grommet-mount clamp
  • Clamp fits desks up to 4.33in (110mm) thick
  • Integrated cable management




Mounting

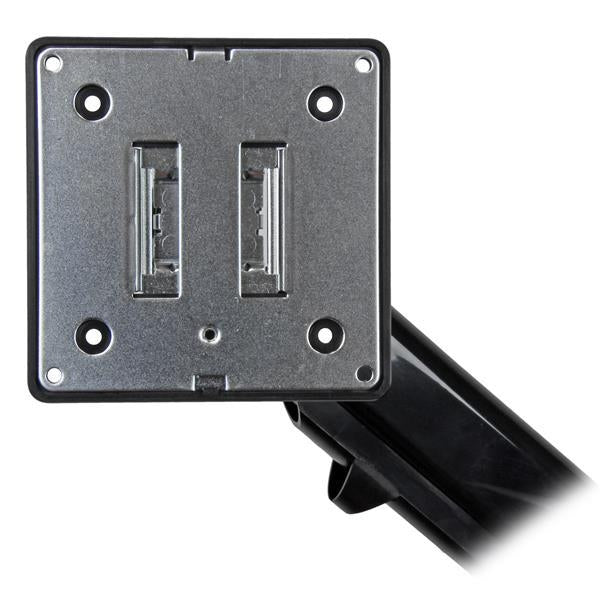

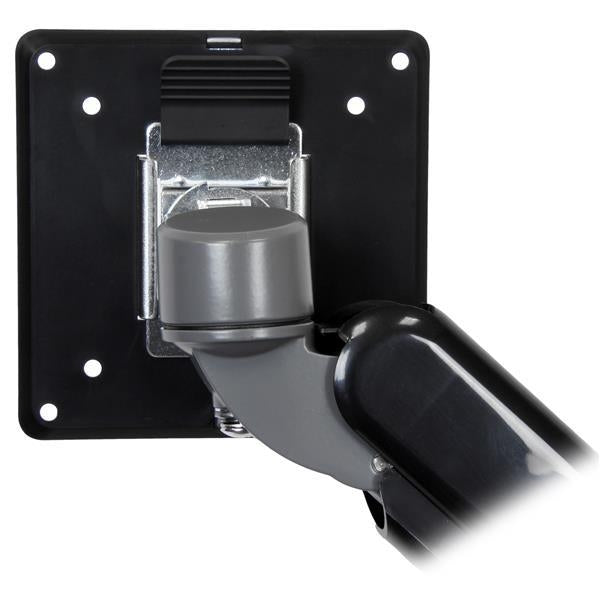

Minimum VESA mount 75 x 75 mm Maximum VESA mount 100 x 100 mm
Mounting Clamp Number of displays supported 1
Desk thickness (min) 2 cm Minimum screen size compatibility 30.5 cm (12")
Desk thickness (max) 11 cm Maximum weight capacity 7 kg
Maximum screen size compatibility 66 cm (26")
Ergonomics
Pivot angle 0 - 360° Cord management Yes
Height adjustment range 0 - 596 mm Swivel angle 180°
Height adjustment Yes
Ergonomics
Pan range 0 - 360° Angle of rotation 360°
Tilt angle range -65 - 90°
Design
Colour of product Black Material Plastic, Steel
RoHS compliance Yes
Weight & dimensions
Package weight 4.2 kg Package height 128 mm
Package depth 460 mm Package width 345 mm
Weight 2 kg
Packaging data

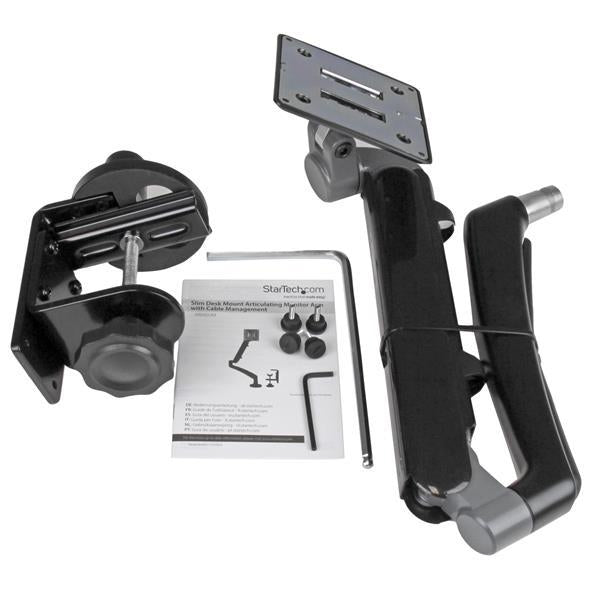

Manual Yes Screws included Yes
Clamp included Yes Wrench included Yes
