Item model number: PEX4M2E1
  • Boost system speed and performance by adding a PCIe M.2 SSD to your PC
  • Supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives
  • Compatible with PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0
  • Fast and easy setup with native OS support
  • Installs into x4, x8 or x16 PCIe slots

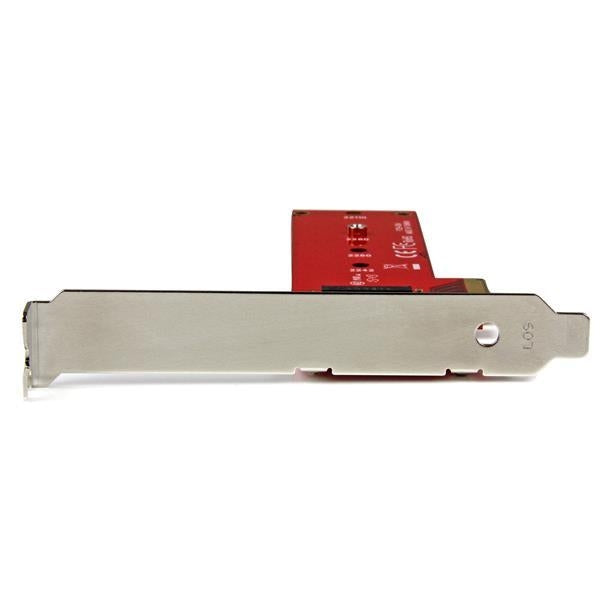

  • Equipped with a full-profile bracket, and includes a half-height/low-profile bracket for installation in small form-factor computers




Ports & interfaces
Output interface M.2 Internal Yes
PCI Card form factor Full-height (low-profile) Host interface PCIe
Performance
Hot-swap No Plug and Play Yes
Design
RoHS compliance Yes Colour of product Red
Certification CE, FCC
Operational conditions
Storage temperature (T-T) -25 - 70 °C Operating temperature (T-T) 5 - 50 °C
Operational conditions
Operating relative humidity (H-H) 15 - 90%
Weight & dimensions
Width 121 mm Package weight 150 g
Package height 45 mm Height 184 mm
Package depth 218 mm Depth 179 mm
Package width 157 mm Weight 46 g
Packaging content

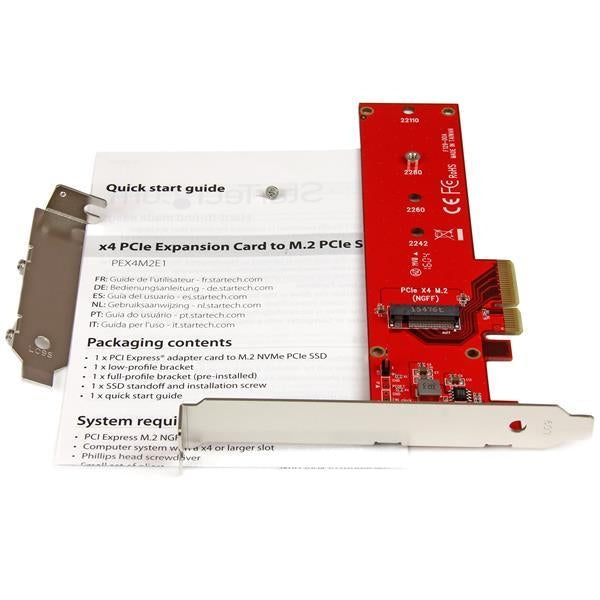

Mounting brackets included Yes Quick installation guide Yes
