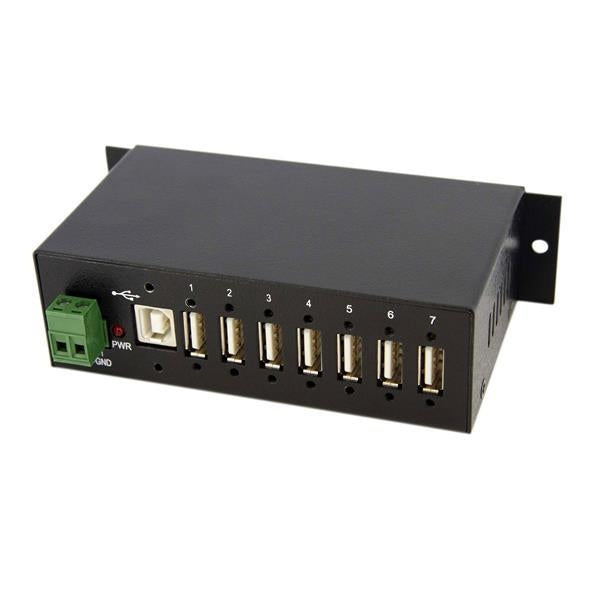

Item model number: ST7200USBM

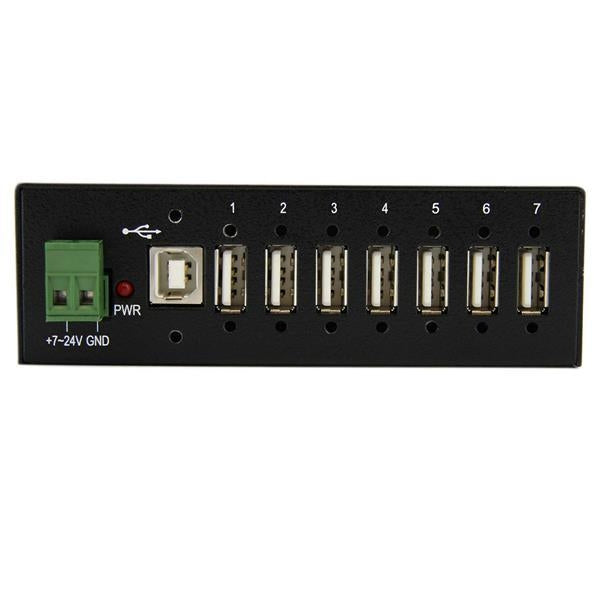

  • Provides 7 USB 2.0 ports
  • USB bus powered or external terminal block with support for 7 ~ 24VDC input
  • Compact and lightweight design with surface or DIN rail mounting options

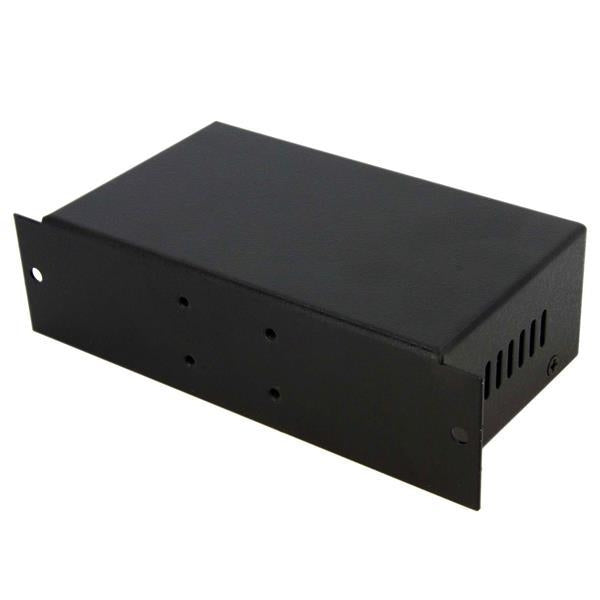

  • Industrial strength, all-metal enclosure
  • High Speed USB 2.0 compliant, with transfer rates up to 480 Mbps
  • 15KV ESD protection
  • Plug-and-Play and Hot-Swap compatible
  • Includes a 2 meter screw-locking USB cable




Ports & interfaces
Hub interfaces USB 2.0 USB 2.0 ports quantity 7
Terminal block port Yes Ports quantity 7
Host interface USB 2.0
Performance
Data transfer rate 480 Mbit/s Hot-swap Yes
Plug and Play Yes Certification CE, FCC, RoHS
Power
Input voltage 7-24
Design
Material Steel Colour of product Black
LED indicators Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95% Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -20 - 85 °C
Weight & dimensions
Width 61.5 mm Package height 160 mm
Height 36.3 mm Package depth 284 mm
Depth 133 mm Package width 52 mm
Weight 500 g

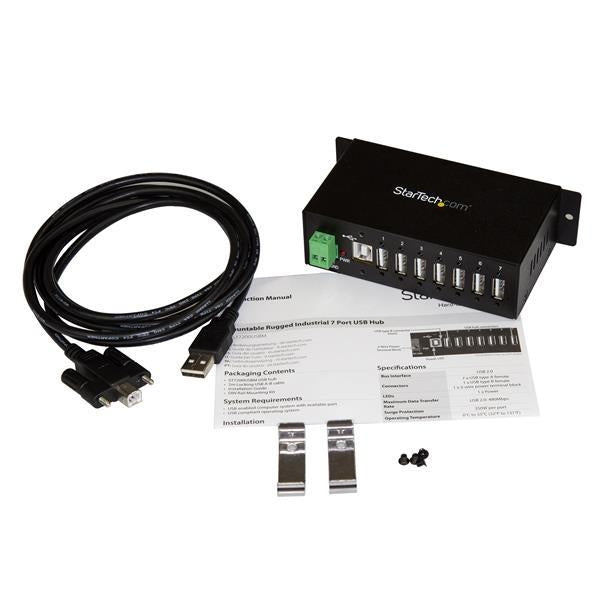

Packaging content
Manual Yes Cables included USB
