Item model number: HSB1SATSASBA
  • Hot swap drives between systems, using a 3.5” SATA or SAS drive in a 5.25” front bay
  • Durable aluminum construction
  • Trayless design for ease of use
  • Supports SAS I/II and SATA I/II/III
  • Lockable, secure drive door
  • Venting to optimize heat dissipation




Technical details
Key lock Yes Data transfer rate 6 Gbit/s
Hard drive interface Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS) Hot-swap Yes
Maximum hard drive capacity 10000 GB RoHS compliance Yes
Material Aluminium Colour of product Black
Hard drive size 3.5" Number of hard drives supported 1
LED indicators Activity, Power Type Carrier panel
Certification CE, FCC Size 13.3 cm (5.25")
Weight & dimensions
Width 146 mm
Weight & dimensions
Height 42 mm Depth 179.4 mm
Weight 400 g
Packaging data
Package weight 418 g Package dimensions (WxDxH) 150 x 197 x 40 mm

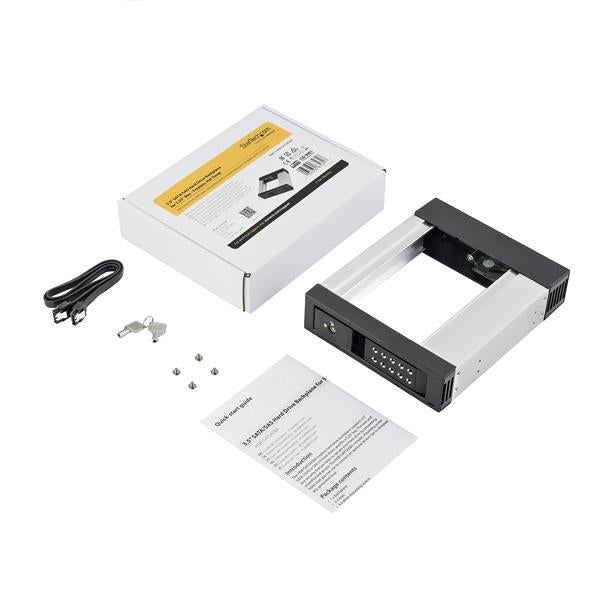

Packaging content
Manual Yes Number of lock keys included 2 pc(s)
Screws included Yes Cables included SATA
Operational conditions
Operating relative humidity (H-H) 5 - 85% Operating temperature (T-T) 0 - 50 °C
Storage relative humidity (H-H) 5 - 95%
