Item model number: HDBOOST
  • Discreet installation with a small form factor and no external power adapter
  • Works at varying distances up to 115 ft. with a built-in equalization switch
  • Maintain high-definition resolutions up to 1080p
  • Supports 7.1 surround sound audio
  • Mounting hardware included




Technical details
Supported graphics resolutions 1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1360 x 768 (WXGA),1440 x 900,1600 x 900,1680 x 1050 (WSXGA+) Maximum resolution 1920 x 1080 pixels
Audio output channels 7.1 channels Rack mounting Yes
Supported video modes 720p,1080p RoHS compliance Yes
Audio support Yes Maximum transfer distance 35 m
Colour of product Black Audio system Multichannel
Type AV repeater Certification CE, FCC
Ports & interfaces

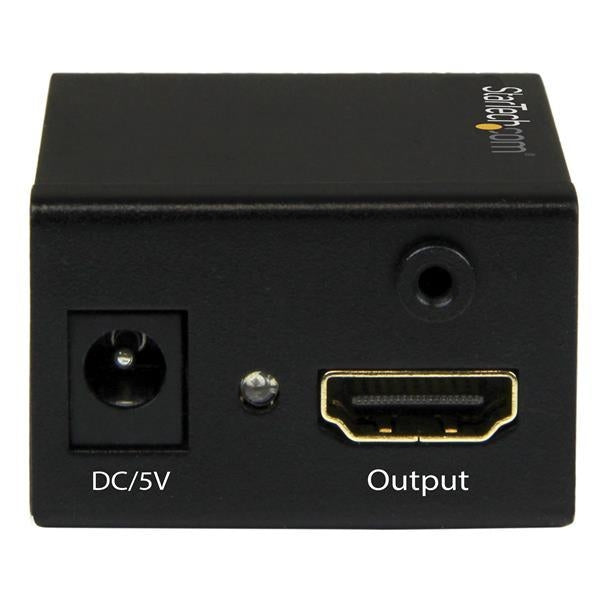

Number of HDMI outputs 1 HDMI in 1
DC-in jack Yes
Indication
LED indicators Power
Operational conditions
Operating relative humidity (H-H) 5 - 90% Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -10 - 80 °C
Power
Plug type Type N (BR) Output current 1 A
Operating voltage 5 V AC input voltage 100-240
Weight & dimensions
Dimensions (WxDxH) 42.2 x 54.2 x 26.2 mm Weight 72 g
Packaging data
Package weight 100 g Package dimensions (WxDxH) 143 x 168 x 63 mm
Packaging content
Mounting brackets included Yes
