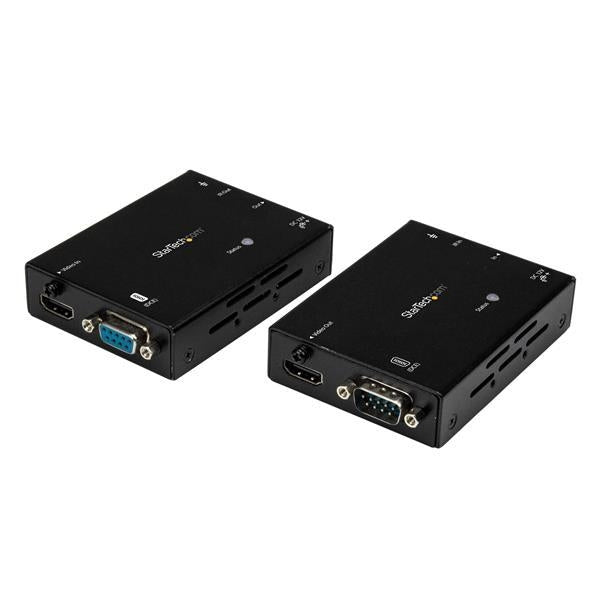

Item model number: ST121HDBTL
  • Get hassle-free video and control extension with HDMI, IR, RS-232 and power extended over a single CAT5e or CAT6 cable
  • Ensure a reliable video extension with an HDBaseT certified extender kit
  • Maintain astonishing picture quality at up to 115 ft. (35 m) away, with support for Ultra HD 4K over non-proprietary CAT5e or CAT6 cabling
  • Also supports HD video resolutions such as 1920x1200 or 1080p at distances up to 230 ft. (70 m)
  • Includes mounting hardware for professional installations




Technical details
Supported graphics resolutions 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160,4096 x 2160 Maximum resolution 4096 x 2160 pixels
Audio output channels 7.1 channels HDBaseT certified Yes
Daisy chain No Supported video modes 720p,1080p
RoHS compliance Yes Maximum transfer distance 100 m
Colour of product Black Cable types supported Cat5e,Cat6
Audio system Multichannel Type AV transmitter & receiver
Certification FCC Maximum refresh rate 60 Hz

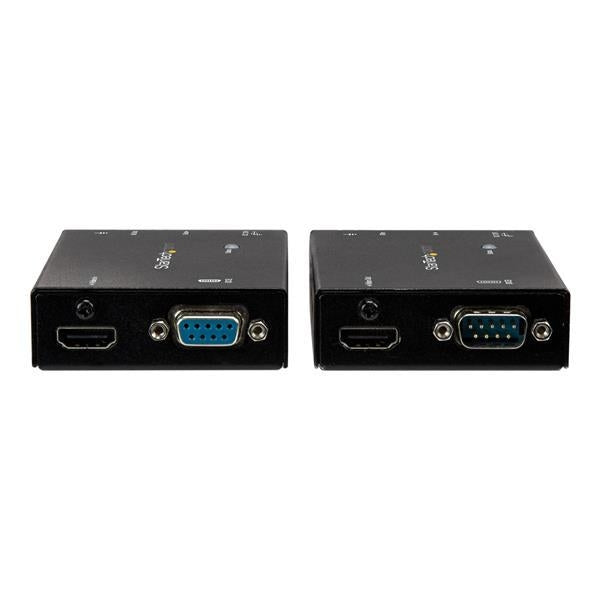

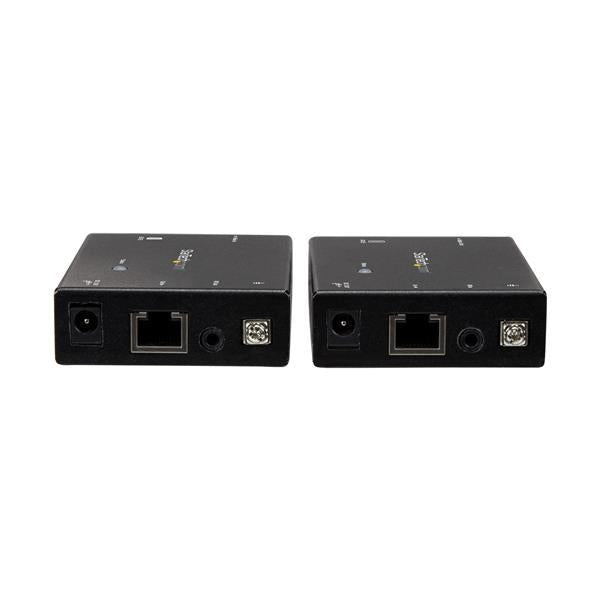

Ports & interfaces
RJ-45 output ports 1 Number of HDMI outputs 1
Serial interface type RS-232 RS-232 input ports 1
HDMI in 1 Remote (IR) output 1
RJ-45 input ports 1 RS-232 output ports 1
Remote (IR) input 1
Indication
LED indicators Status
Power
Plug type Type M Output current 1.5 A
External power adapter Yes Input current 0.6
Operating voltage 12 V AC input voltage 100 - 240
Power consumption (typical) 18 W
Weight & dimensions
Receiver dimensions (WxDxH) 66 x 92 x 27 mm Transmitter dimensions (WxDxH) 66 x 92 x 27 mm
Transmitter weight 452 g Receiver weight 452 g
Packaging data
Package weight 1.1 kg Package dimensions (WxDxH) 194 x 281 x 70 mm

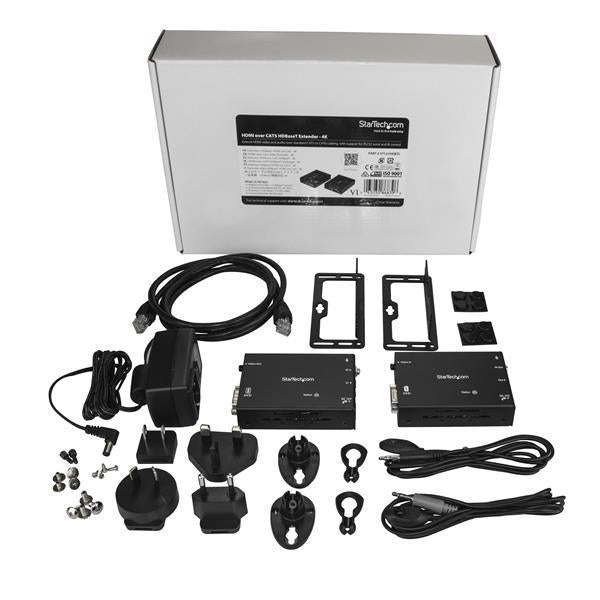

Packaging content
Mounting brackets included Yes IR blaster included Yes
AC adapter included Yes Cables included LAN (RJ-45)
IR receiver included Yes
