Item model number: HD2A
  • Easily integrates the audio from your HDMI source with equipment that doesn't support HDMI
  • Extracts analog and digital audio with an included 3.5mm to SPDIF adapter
  • Expand the capabilities of the audio extractor by converting to RCA audio, using an inexpensive 3.5mm to RCA adapter (sold separately)
  • Discreet installation with small footprint
  • Supports resolutions up to 1080p with HDMI pass-through
  • HDCP compliant
  • USB-powered




Video
Supported video modes 480p,720p,1080p HDCP Yes
Audio
Audio output channels 2.1 channels Audio support Yes
Technical details
Maximum resolution 1920 x 1080 pixels Chipset Explore-EP93Z3E
Ports & interfaces

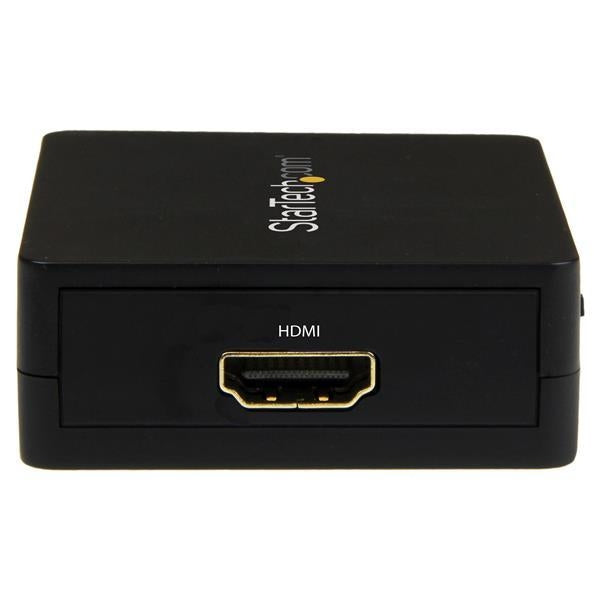

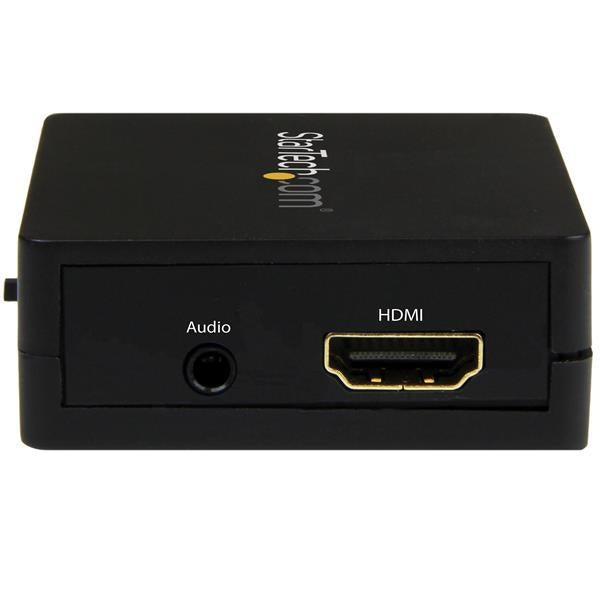

Audio output 3.5 mm Output interface HDMI
Host interface HDMI
Power

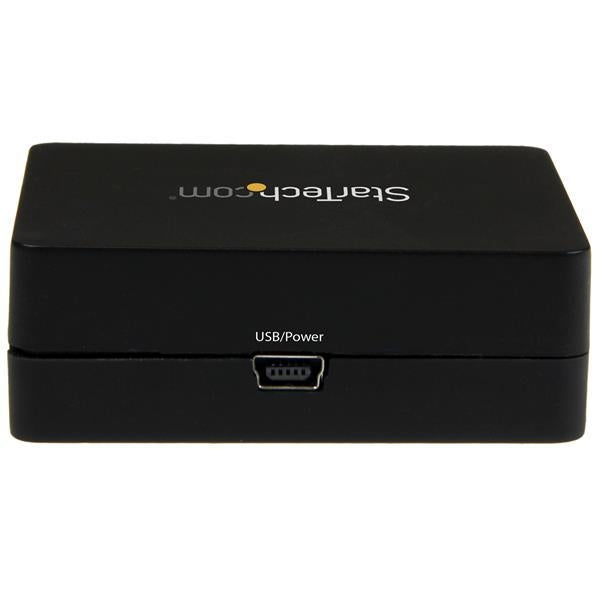

USB powered Yes
Certificates
Certification CE, FCC
Weight & dimensions
Width 55 mm Height 20 mm
Depth 60 mm Weight 38 g
Packaging data
Package weight 100 g Package height 90 mm
Package depth 132 mm Package width 23 mm
Packaging content

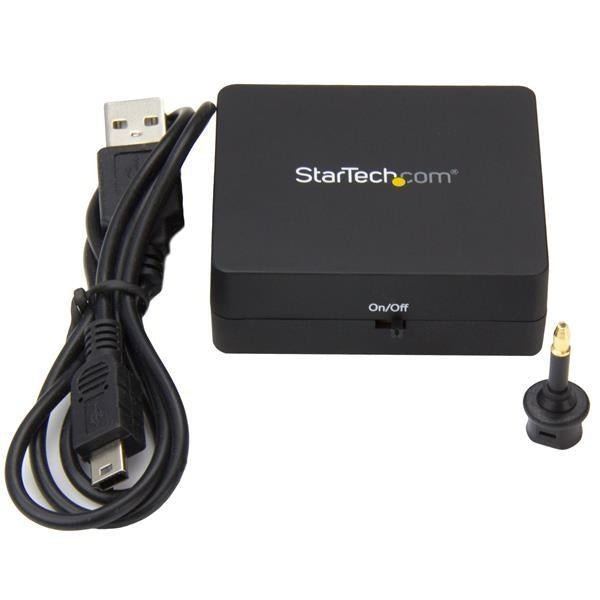

Cables included USB
