Item model number: HB30C3A1GE
  • Expand your laptop’s connectivity through USB-C by adding three USB-A ports (5Gbps) and a GbE RJ45 port
  • Compact, small-footprint design makes it perfect for travel, or for desktop placement
  • Built-in, extended length (30 cm) USB Type-C cable, for flexible desk placement options
  • .
  • Included power adapter ensures your connected devices are fully powered and operational
  • Integrated cable features a small and reversible USB-C connector, and it’s Thunderbolt 3 data port compatible
  • Fast, easy installation with native support in most operating systems
  • Supports Wake-On-LAN, Energy-Efficient Ethernet, jumbo frames, full duplex flow control, VLAN tagging, and layer 2 priority encoding
  • Backward compatible, for use with your older USB 3.0 and 2.0 devices
  • Dongle-style combination hub provides three SuperSpeed USB 3.0 (USB 3.1 Gen 1) ports, with throughput support up to 5Gbps
  • Plug-and-play and hot-swap compatible




Ports & interfaces
Ethernet LAN (RJ-45) ports 1 USB 3.0 (3.1 Gen 1) Type-A hub ports quantity 3
USB version 3.0 (3.1 Gen 1) Internal No
Interface Ethernet Connectivity technology Wired
Host interface USB
Bandwidth
Full duplex Yes Data transfer rate (max) 1000 Mbit/s
Networking
VLAN tagging Yes Flow control support Yes
Jumbo frames 4000 Jumbo frames support Yes
Networking standards IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x Chipset Genesys Logic - GL3522 (USB 3.0), ASIX - AX88179 (LAN)
Power
Power consumption (typical) 10 W Input current 0.5
Input voltage 100-240 Output current 2 A
Output voltage 5 V Plug type Type H (IL)
Design
Housing material Plastic Colour of product Black
LED indicators Activity, Link
Performance
Auto MDIX IEEE Yes Wake-on-LAN ready Yes
Performance
Mac operating systems supported Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks Hot-swap Yes
Other operating systems supported Chrome Server operating systems supported Windows Server 2008 R2,Windows Server 2012
Plug and Play Yes Auto-negotiation Yes
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64 Cable length 0.3 m
Weight & dimensions
Width 45 mm Package weight 337 g
Package height 51 mm Height 14 mm
Package depth 213 mm Depth 87 mm
Package width 149 mm Weight 50 g
Certificates
Certification CE, FCC RoHS compliance Yes
Operational conditions
Operating relative humidity (H-H) 0 - 85% Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -10 - 70 °C

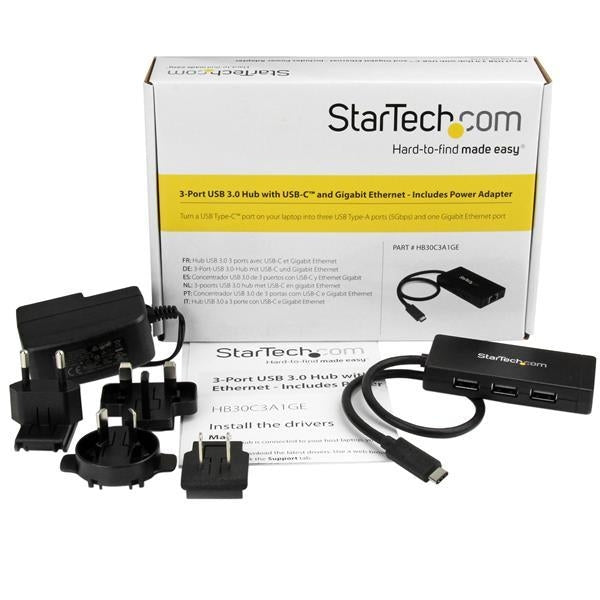

Packaging content
AC adapter included Yes Included power plug types AU,EU,NA,UK
