Item model number: ARMDUAL

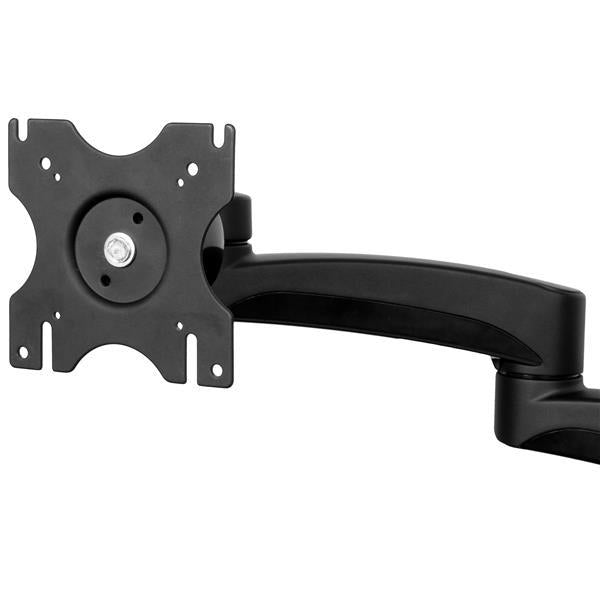

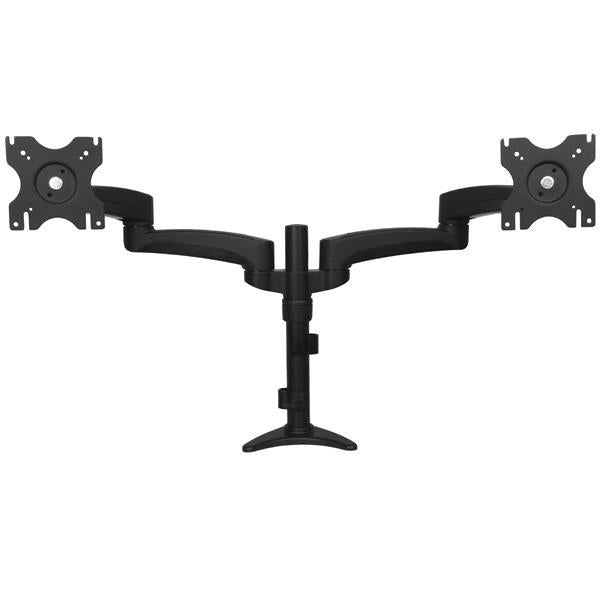

  • Dual articulating arms for a wide range of motion
  • Supports displays from 12 to 24” (30lbs / 13.6kg capacity)
  • 360° rotation around the support post and at the elbow
  • 180° rotation at the shoulder
  • +/-90° Tilt and +/-90° Pan

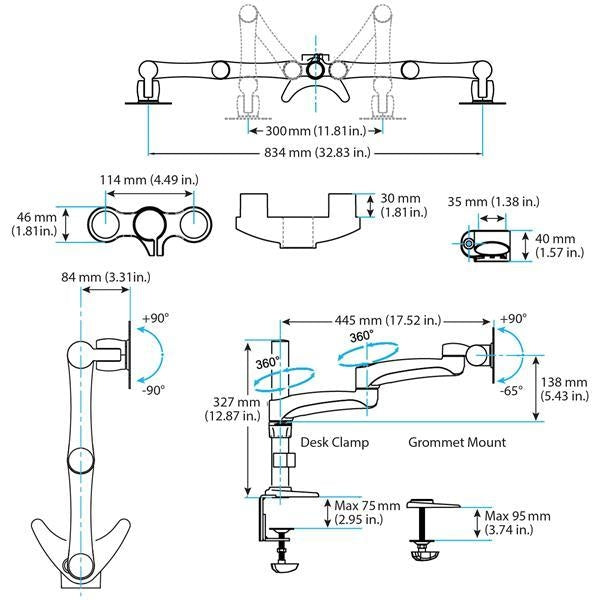

  • Maximum arm extension of 17.5in (445mm)

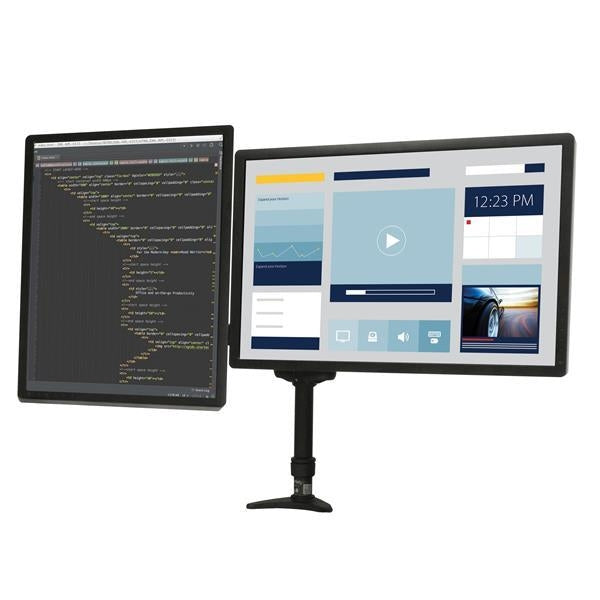

  • Landscape to portrait screen rotation

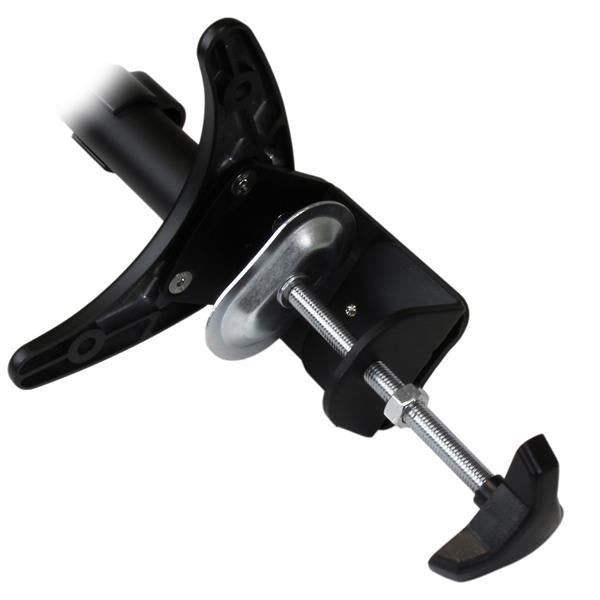

  • Includes convertible desk / grommet mount clamp
  • Desk clamp fits desks up to 2.95in (75mm) thick, grommet clamp fits up to 3.74in (95mm)

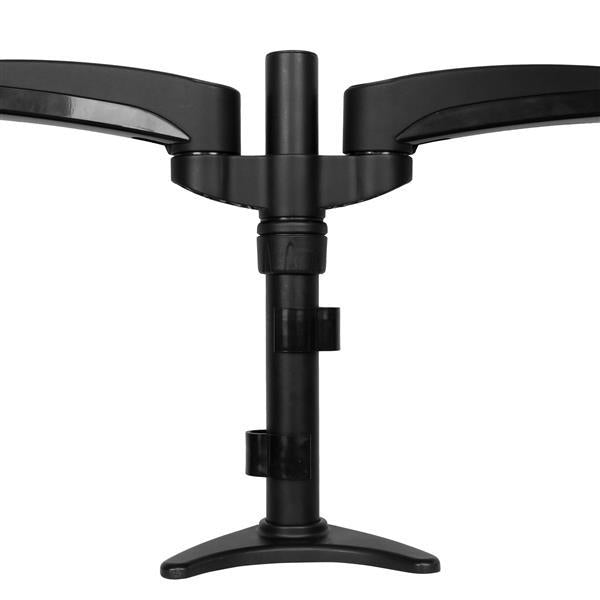

  • Integrated cable management




Mounting
Minimum VESA mount 75 x 75 mm Maximum VESA mount 100 x 100 mm
Mounting Clamp Number of displays supported 2
Suitable for Computer monitor Desk thickness (min) 1 cm
Minimum screen size compatibility 30.5 cm (12") Desk thickness (max) 7.5 cm
Maximum weight capacity 13.6 kg Maximum screen size compatibility 61 cm (24")
Ergonomics
Pan range -90 - 90° Tilt angle range -90 - 90°
Swivel angle 360° Height adjustment Yes
Ergonomics
Angle of rotation 360°
Design
Colour of product Black Material Plastic, Steel
RoHS compliance Yes
Technical details
Cable management Yes
Weight & dimensions
Package weight 5.4 kg Package height 280 mm
Package depth 550 mm Package width 300 mm
Weight 4.3 kg
Packaging data

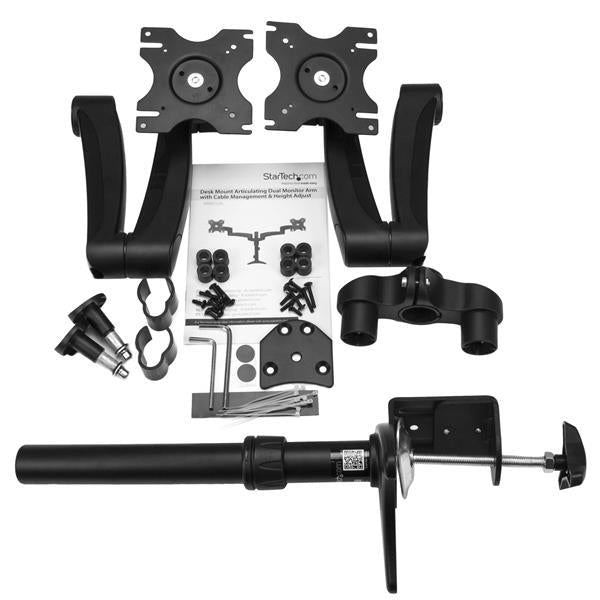

Manual Yes Screws included Yes
Clamp included Yes Wrench included Yes
