Item model number: ICUSB2328I

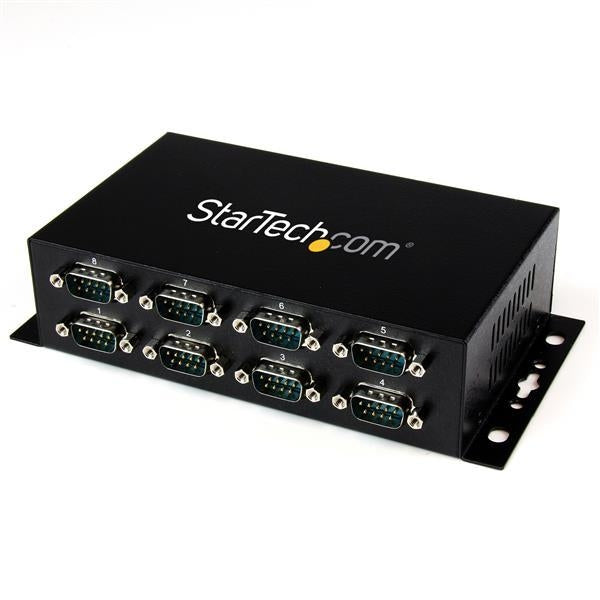

  • USB to 8-Port Straight-Through RS232 Serial Adapter
  • Rugged metal construction
  • Wall-mountable, and includes DIN Rail clips
  • COM Retention: COM Port assignments maintained across reboot
  • Baud Rate up to 921.6 Kbps
  • Powered by an available USB port - no external power adapter required




Ports & interfaces

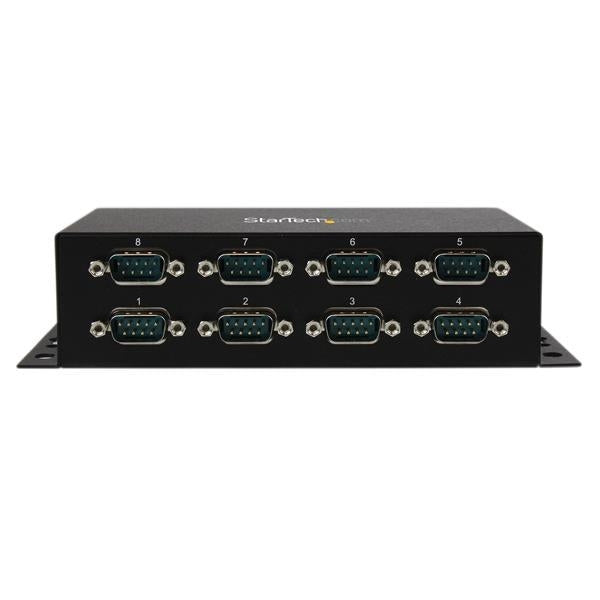

RS-232 ports 8 Hub interfaces Serial

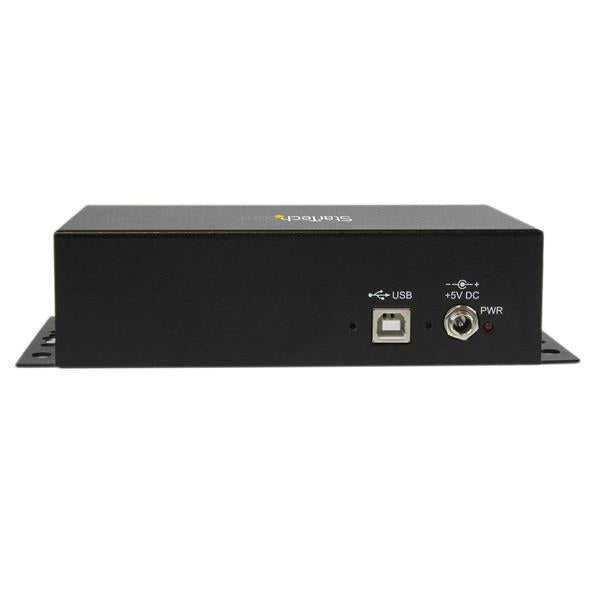

Ports quantity 8 Host interface USB 2.0 Type-B
Performance
Card reader integrated No
Power
Input current 0.25 Input voltage 5
USB powered Yes Plug type Type M
Design
Material Steel Colour of product Black
LED indicators Activity
System requirements
Linux operating systems supported Yes Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
System requirements
Mac operating systems supported Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Operational conditions
Operating relative humidity (H-H) 5 - 95% Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -20 - 85 °C
Weight & dimensions
Width 100 mm Package weight 900 g
Package height 65 mm Height 43.2 mm
Package depth 295 mm Depth 180 mm
Package width 190 mm Weight 544 g

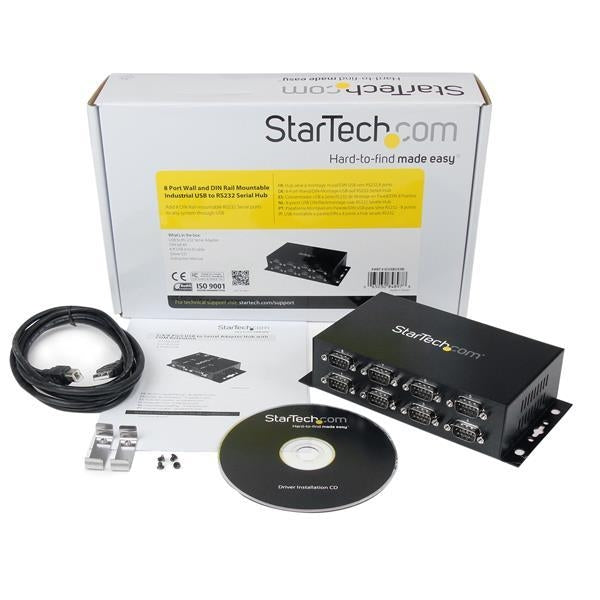

Packaging content
Cables included USB
Other features
Chipset FTDI - FT232RL
