Item model number: ST12MHDLAN4K
  • Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension
  • Astonishing picture quality over IP with support for 4K at 30Hz resolution
  • Free mobile app makes it easy to manage switching video wall control (iOS / Android / Chrome browser)
  • Tidy, professional installation using the included mounting hardware
  • Connect using a Gigabit LAN network
  • Easy point-to-point or point-to-multipoint setup
  • Extend HDMI using existing network infrastructure




Technical details
Supported graphics resolutions 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160 Maximum resolution 3840 x 2160 pixels
Rack mounting Yes Daisy chain Yes
Supported video modes 720p,1080p,2160p RoHS compliance Yes
Material Aluminium Audio support Yes
Maximum transfer distance 100 m Colour of product Black
Cable types supported Cat5e Audio system stereo
Type AV transmitter & receiver Certification CE, FCC
Maximum refresh rate 30 Hz

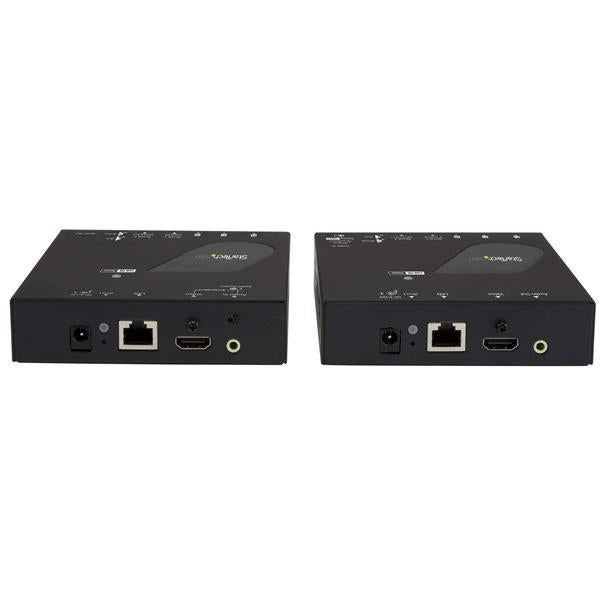

Ports & interfaces
RJ-45 output ports 1 Number of HDMI outputs 1
Audio output 2 x 3.5mm RJ-11 ports quantity 4
HDMI in 1 Audio input 2 x 3.5mm
Remote (IR) output 2 RJ-45 input ports 1
Remote (IR) input 2
Indication
LED indicators Link, Power, Reset
Operational conditions
Operating relative humidity (H-H) 0 - 80% Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 60 °C
Power
Plug type Type M Operating voltage (receiver) 12 V
Output current 1.5 A Operating voltage (transmitter) 12 V
Input current 0.6 AC input voltage 100-240
Power consumption (typical) 18 W
Weight & dimensions
Receiver dimensions (WxDxH) 117 x 130 x 30 mm Transmitter dimensions (WxDxH) 117 x 130 x 30 mm
Transmitter weight 592 g Receiver weight 592 g
Packaging data
Package weight 2.3 kg Package dimensions (WxDxH) 235 x 370 x 76 mm

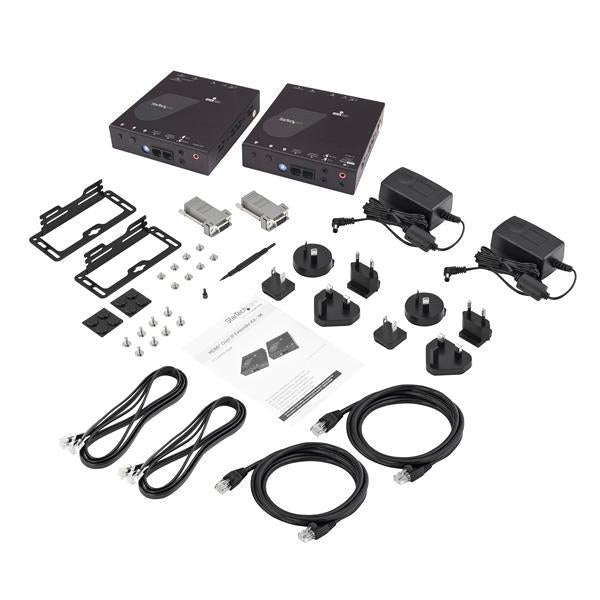

Packaging content
Mounting brackets included Yes Cables included LAN (RJ-45), Phone (RJ-11)
Quick start guide Yes
