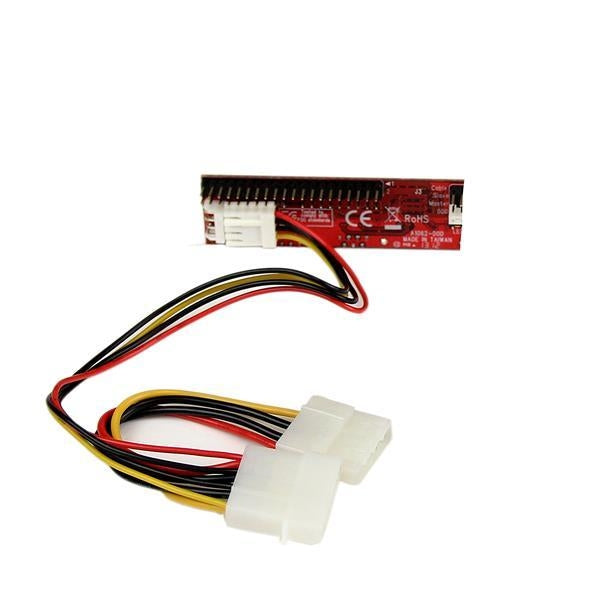

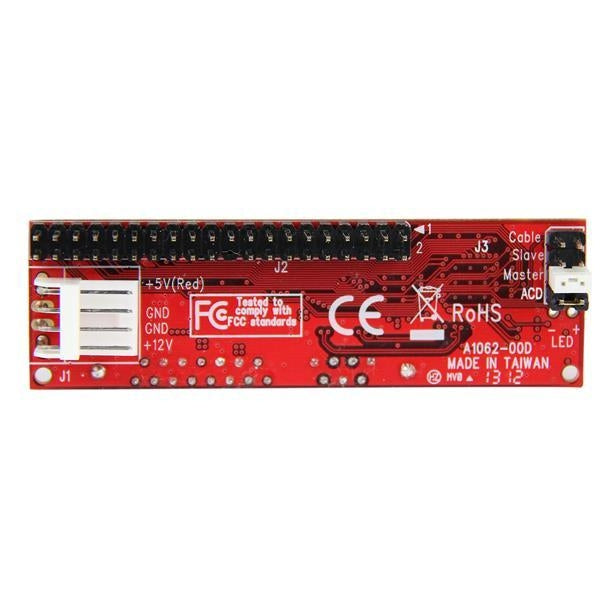

Item model number: IDE2SAT2
  • Connect a SATA device to an IDE/ATA motherboard or controller card
  • Complete hardware solution; no software required
  • Support for 48-bit Logical Block Addressing (LBA)
  • Compliant with SATA revision 1.0 specification
  • Supports SATA I/II/III (1.5/3/6Gbps) drives
  • Compatible with Ultra ATA 133 specification
  • Supports 2.5", 3.5", and 5.25" SATA Drives
  • ODD (Optical Disk Drive) support, including Blu-ray, DVD, and CD-ROM drives




Ports & interfaces
Connector(s) 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) Output interface SATA
Internal Yes Host interface IDE
Performance
Data transfer rate (max) 0.133 Gbit/s Logical block addressing (LBA) support 48 bit

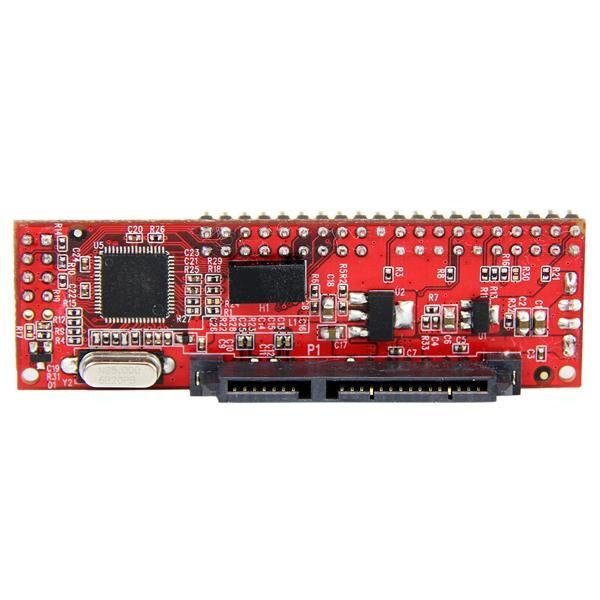

Chipset Marvell - 88SA8852
Design
RoHS compliance Yes Colour of product Red
Certification FCC, CE
Operational conditions
Operating relative humidity (H-H) 15 - 90% Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -25 - 80 °C
Weight & dimensions
Width 20 mm Package weight 80 g
Package height 47 mm Height 23 mm
Package depth 218 mm Depth 75.5 mm
Package width 158 mm Weight 15 g
