Item model number: HB30C3A1GEA

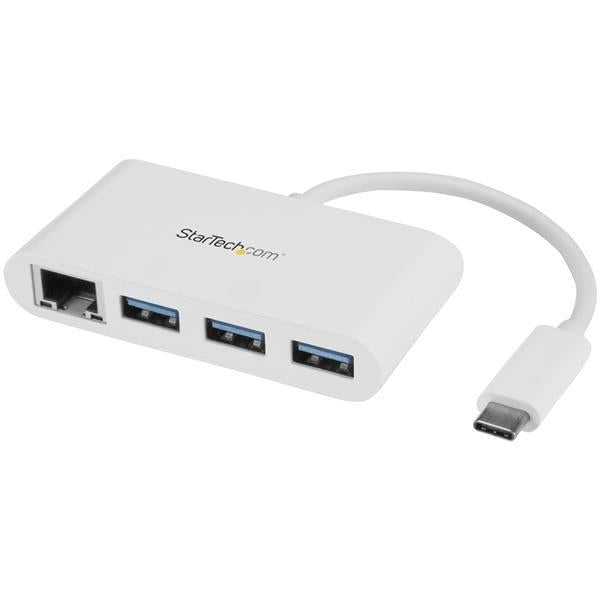

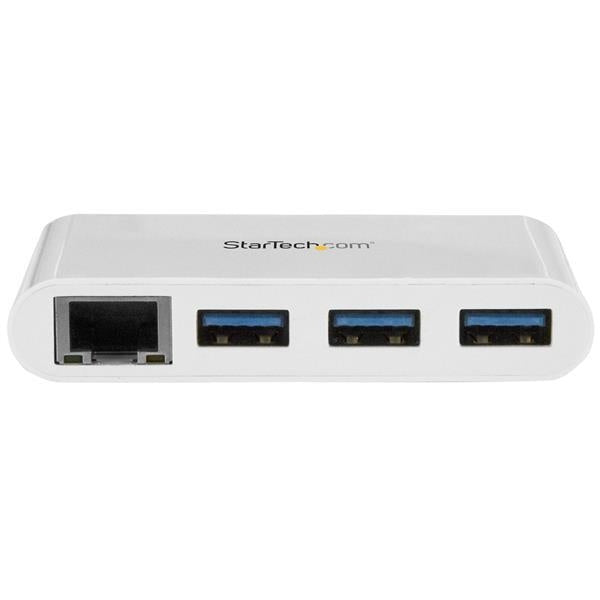

  • Expand your laptop or MacBook connectivity through USB-C by adding three USB-A ports (5Gbps) and a GbE RJ45 port
  • Compact, lightweight housing with a small-footprint design for travel or desktop placement
  • USB bus-powered and features a built-in USB Type-C cable, so you can carry the hub with you anywhere

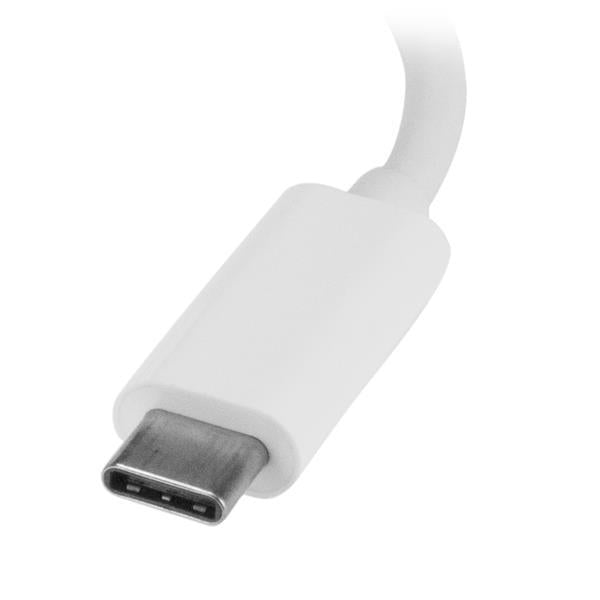

  • Integrated cable features a small and reversible USB-C connector, and it’s Thunderbolt 3 data port compatible
  • Multi-platform compatible, with native support in most operating systems including Windows® 10, macOS Sierra (10.12), and Chrome OS™
  • Backward compatibility lets you save money by connecting your existing USB 2.0 and 1.x devices
  • Offers plug-and-play installation, and supports hot-swapping or hot-plugging
  • Supports Wake-On-LAN, Energy-Efficient Ethernet, jumbo frames, full-duplex flow control, VLAN tagging, and layer 2 priority encoding




Ports & interfaces
USB ports quantity 3 Ethernet LAN (RJ-45) ports 1
USB 3.0 (3.1 Gen 1) Type-A hub ports quantity 3 USB version 3.0 (3.1 Gen 1)
Internal No Interface Ethernet
Connectivity technology Wired Host interface USB
Bandwidth
Full duplex Yes Data transfer rate (max) 1000 Mbit/s
Networking
VLAN tagging Yes Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000BaseT(X) Ethernet LAN Yes
Flow control support Yes Jumbo frames 9000
Jumbo frames support Yes Networking standards IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Chipset VIA/VLI - VL812, Realtek - RTL8153 Ethernet LAN data rates 10,100,1000 Mbit/s
Power
USB powered Yes
Design
Colour of product White
Design
Housing material Plastic
Performance
UASP support Yes Hot-Plug support Yes
Hot-swap Yes Wake-on-LAN ready Yes
Auto MDIX IEEE Yes Plug and Play Yes
Auto-negotiation Yes Cable length 0.095 m
Weight & dimensions
Width 41 mm Package weight 102 g
Package height 30 mm Height 15 mm
Package depth 170 mm Depth 78 mm
Package width 142 mm Weight 36 g
Certificates
Certification CE, FCC RoHS compliance Yes
Operational conditions
Operating relative humidity (H-H) 5 - 90% Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -10 - 70 °C
