Item model number: ICUSB2324852
  • Backwards compatible with USB 1.1
  • USB-powered; No additional external power adapter required
  • Both ports can function simultaneously with mixed or matched communication protocols
  • Includes a bracket for wall mounting the USB to Serial adapter
  • Features rugged screw-lock USB port to ensure cords are not accidentally disconnected
  • Ability to rename devices for easy recognition
  • COM Port assignments maintained after reboot

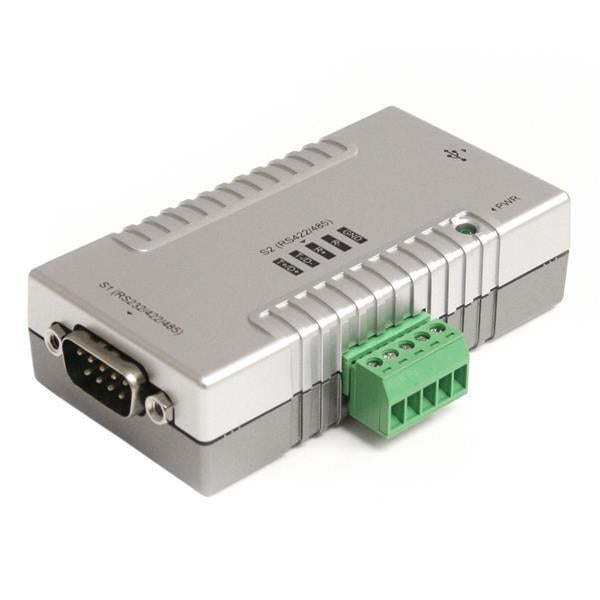

  • Port 1 (DB9) configurable for RS232, RS422, or RS485; Port 2 (Terminal Block) configurable for RS422 or RS485
  • Multiple interface modes, including: 4 wire RS422(TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-)
  • Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware
  • External power adapter can be used (not required) if your device needs extra power beyond what the USB host can provide
  • Transmission Echo for RS485 collision detection

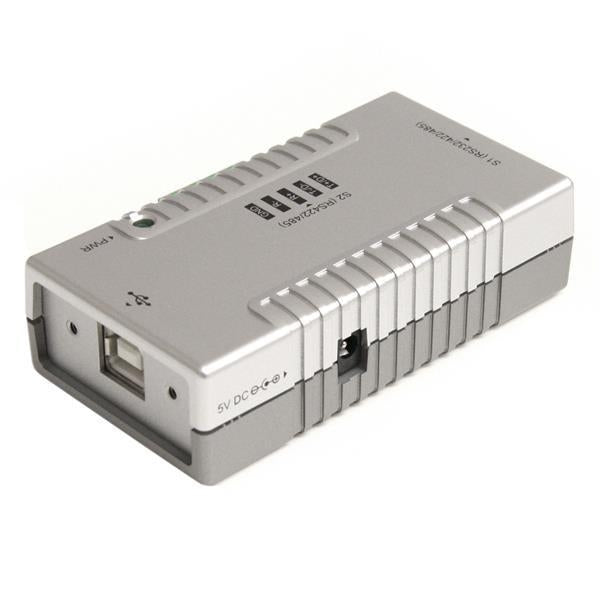

  • USB to 2 Port Straight-Through RS232/422/485 Serial Adapter




Ports & interfaces
Gender Male/Male Connector 1 USB 2.0 A
Connector 2 DB-9
Design
RoHS compliance Yes Material Plastic
Colour of product Grey LED indicators Power
Certification CE, FCC
Performance
Baud rate 921.6 Kbit/s Data bits 7, 8
FIFO (First In, First Out) 128 B Parity bit Even, Mark, N, Odd, Space
Flow Control type N, XON/XOFF Output current 385 mA
Compatible operating systems - Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 - Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016 - Mac OS X® 10.6 to 10.12 - Linux 2.4.x to 4.4.x LTS Stop bits 1, 2
Chipset FTDI - FT2232H
Power
Output voltage 5 V
Operational conditions
Operating temperature (T-T) 0 - 55 °C Relative humidity 5 - 95%
Storage temperature (T-T) -25 - 85 °C
Weight & dimensions
Width 44.2 mm Height 23.2 mm
Depth 82.3 mm Weight 310 g
Packaging data
Package weight 310 g Package height 160 mm
Package depth 230 mm Package width 40 mm

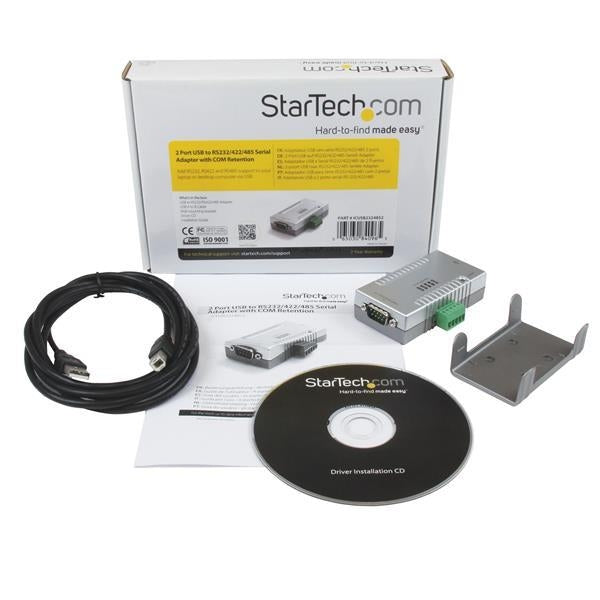

Packaging content
Manual Yes Cables included USB
Quantity 1
Other features
Power plug B
