Item model number: ICUSB232FTN

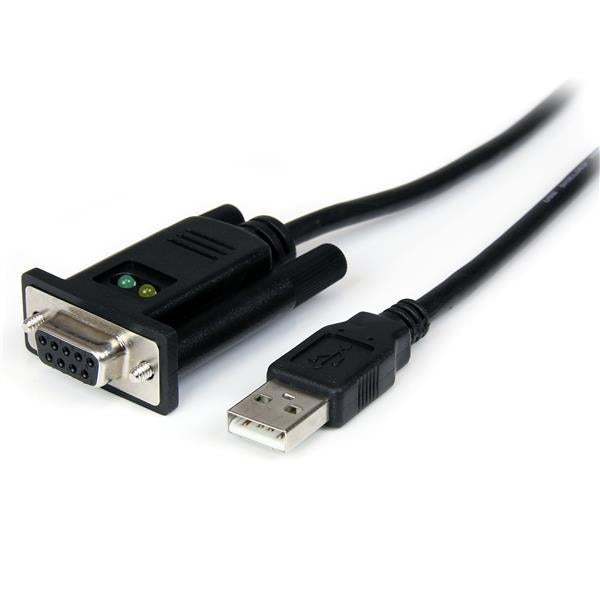

  • USB to Null Modem (Cross-Wired) RS232 Serial Adapter
  • Integrated FTDI USB UART Chip
  • Baud Rate up to 921.6Kbps
  • COM Port assignments maintained across reboot
  • USB-powered - no external power adapter required
  • Compatible with USB 1.1 or 2.0 Ports
  • Compatible with Windows®, Mac OS and Linux
  • Single cable design for portability




Ports & interfaces
Gender Male/Female Connector 1 USB
Connector 2 RS-232
Design
Cable length 0.179 m Material Plastic
Colour of product Black
Performance
Baud rate 921.6 Kbit/s Data bits 7, 8
FIFO (First In, First Out) 256 B Parity bit Even, Mark, N, Odd, Space
Compatible operating systems - Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 - Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016 - Mac OS 10.6 to 10.12 - Linux 2.4.x to 4.4.x LTS Stop bits 1, 2
Chipset FTDI - FT232RL
Operational conditions
Operating temperature (T-T) 0 - 55 °C Relative humidity 5 - 95%
Storage temperature (T-T) -20 - 85 °C
Weight & dimensions
Width 33.5 mm Height 16.5 mm
Depth 179 mm Weight 88 g
Packaging data
Package weight 200 g Package height 40 mm
Package depth 145 mm Package width 210 mm
Packaging content
Manual Yes Drivers included Yes
Quantity 1
