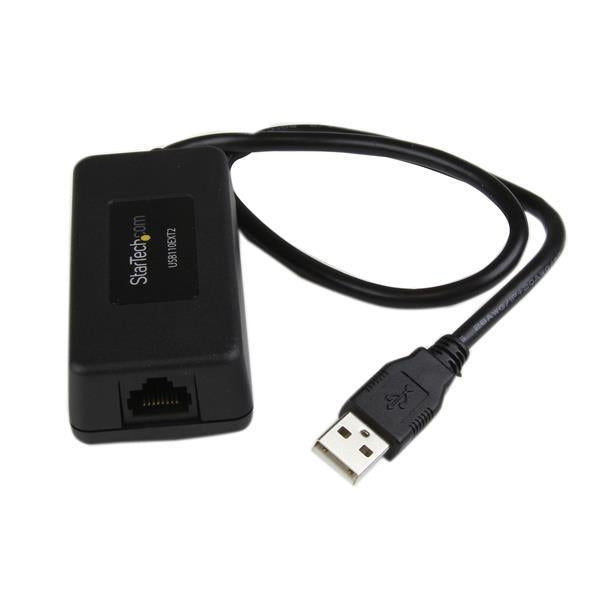

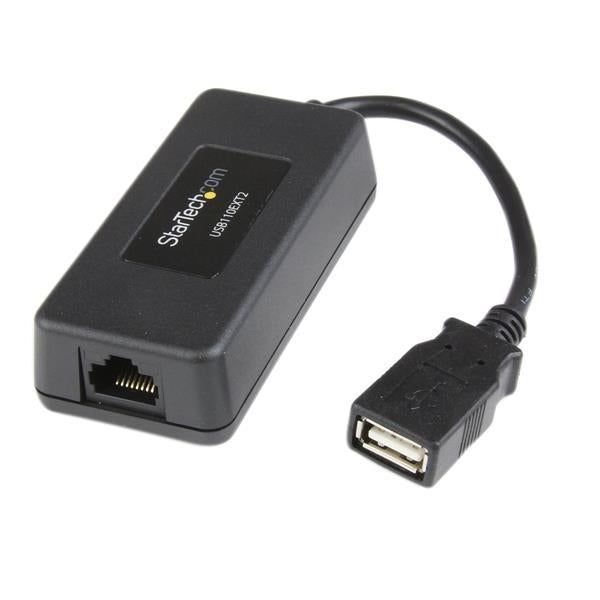

Item model number: USB110EXT2
  • 1x USB 1.1 port, 1x RJ45 port
  • Support for a maximum distance of up to 40m (131ft), over Cat5 or Cat6 cabling
  • Full Speed USB 1.1 compliant host interface, with data bandwidth up to 12 Mbps
  • Efficient circuit design provides up to 300mA of power at the remote end
  • 8kV Contact and 16kV Air Electrical Static Discharge (ESD) protection
  • Integrated USB cables
  • No driver or software required




Performance
Data transfer rate 12 Mbit/s Maximum transfer distance 40 m
Cable types supported Cat5,Cat6 Type Network transmitter & receiver
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Design
RoHS compliance Yes Colour of product Black
Certification CE, FCC
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Operational conditions
Operating relative humidity (H-H) 20 - 80% Storage temperature (T-T) -20 - 70 °C
Weight & dimensions
Width 40 mm Height 25 mm
Depth 85 mm Weight 50 g
Packaging data
Package weight 185 g Package height 60 mm
Package depth 126 mm Package width 126 mm
