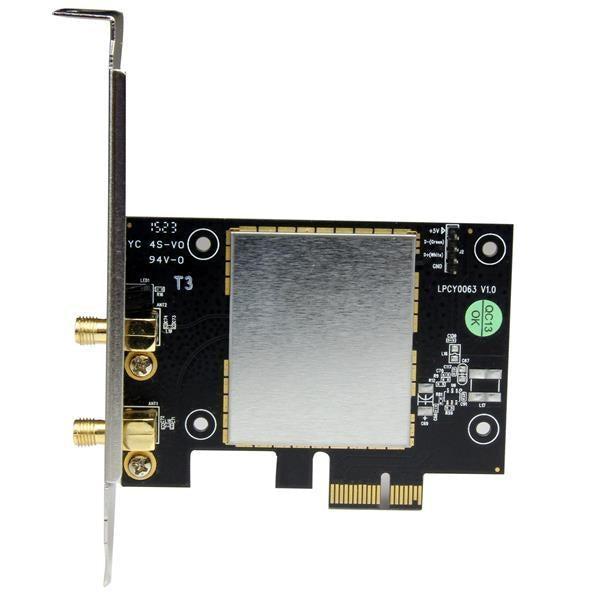

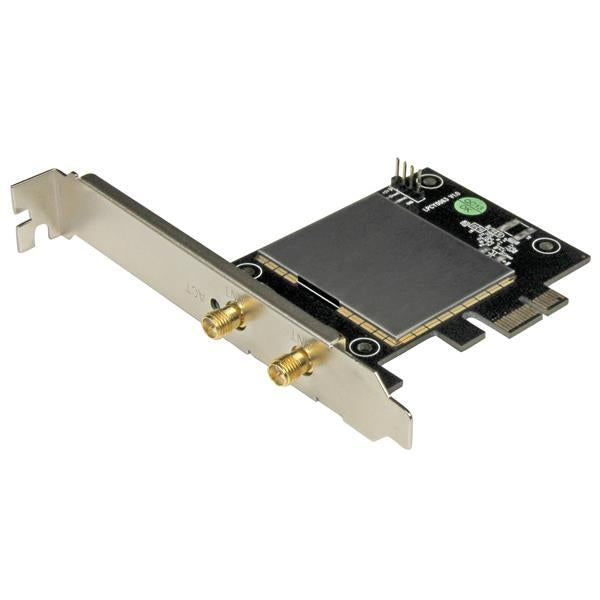

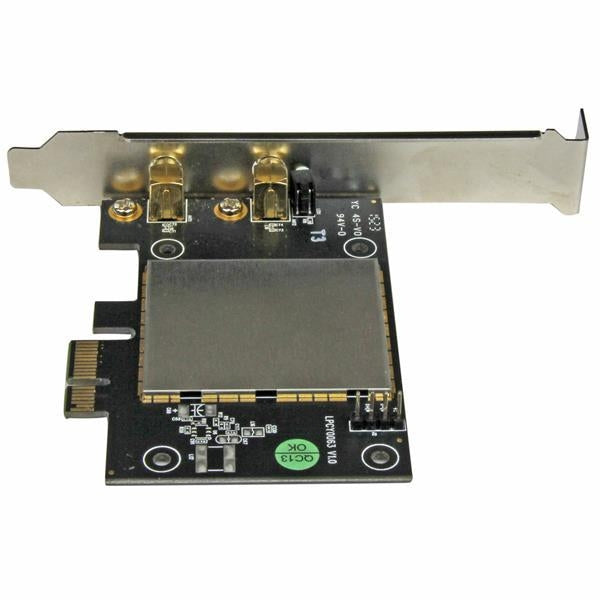

StarTech AC600 Wireless-AC Network Adapter - 802.11ac, PCI Express (PEX433WAC11)
$80.98 CAD
/
Shipping calculated at checkout.
Item model number: PEX433WAC11
- Wireless AC600 compatible with speeds up 433Mbps (5GHz) and up to 150Mbps (2.4GHz)
- Dual band 2.4 / 5GHz support (802.11ac is 5 GHz only)
- Compliant with 802.11 ac/a/b/g/n networks
- Single antenna (1T1R) for transmitting and receiving

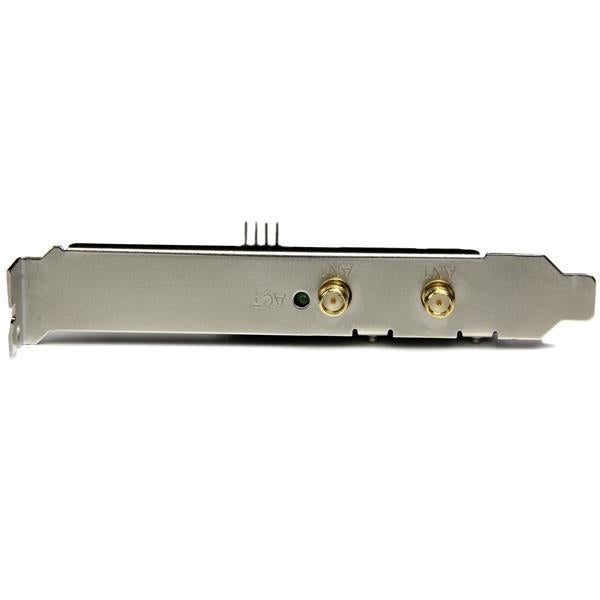

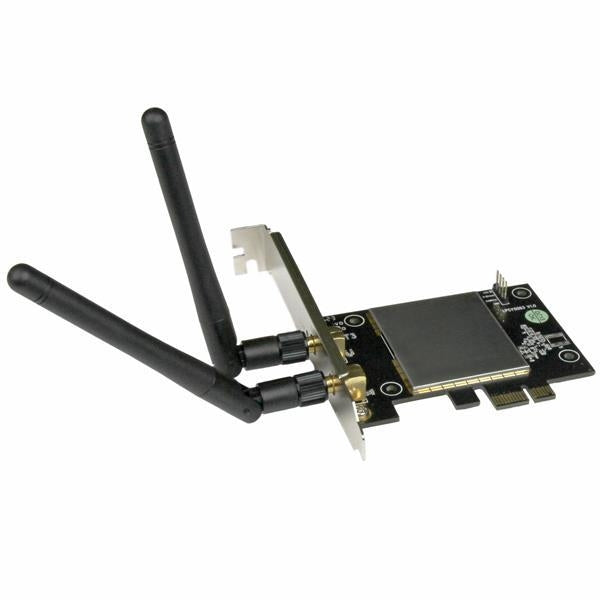

- Dual external (detachable) dual-band 3dBi antennas
- PCI Express host interface
- Wireless security with 64/128bit WEP, WPA, WPA2 and TKIP/AES
- Supports WMM Quality of Service and WMM-PS
- Supports Soft AP mode
- Configured with standard profile bracket, low profile and half-height bracket included
Specification
| Ports & interfaces | |||
|---|---|---|---|
| Internal | Yes | Interface | WLAN |
| Connectivity technology | Wireless | Host interface | PCI-E |
| Bandwidth | |||
|---|---|---|---|
| Full duplex | No | Data transfer rate (max) | 433 Mbit/s |
| Bandwidth | 0.08 GHz | ||
| Networking | |||
|---|---|---|---|
| Maximum operating distance | 30 m | Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Chipset | Realtek 8821AE | ||
| Wireless LAN features | |||
|---|---|---|---|
| Wi-Fi | Yes | Wi-Fi standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| WLAN data transfer rates supported | 150,433 Mbit/s | Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | IEEE 802.11ac | ||
| Antenna | |||
|---|---|---|---|
| Detachable antenna(s) | Yes | Antenna connector type | RP-SMA |
| Antennas quantity | 2 | Gain | 3 dBi |
| Design | |||
|---|---|---|---|
| LED indicators | Activity, Link | ||
| Performance | |||
|---|---|---|---|
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012 | Auto MDIX IEEE | No |
| Security algorithms | 64-bit WEP,128-bit WEP,AES,TKIP,WPA,WPA2 | Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Weight & dimensions | |||
|---|---|---|---|
| Width | 97 mm | Package weight | 170 g |
| Package height | 32 mm | Height | 22 mm |
| Package depth | 163 mm | Depth | 121 mm |
| Package width | 136 mm | Weight | 48 g |
| Certificates | |||
|---|---|---|---|
| Certification | CE, FCC, UL | RoHS compliance | Yes |
| Operational conditions | |||
|---|---|---|---|
| Operating relative humidity (H-H) | 0 - 90% | Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 10 - 70 °C | ||

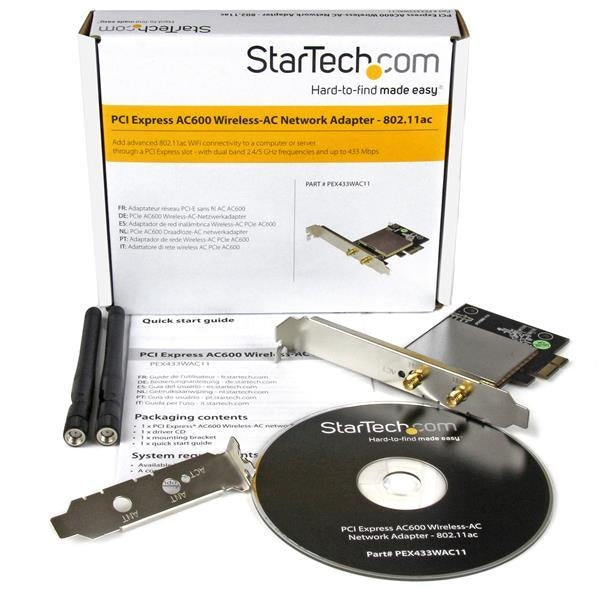

| Packaging content | |||
|---|---|---|---|
| Drivers included | Yes | Low-profile bracket | Yes |
| Quick start guide | Yes | ||
