Item model number: PEXUSB3S7

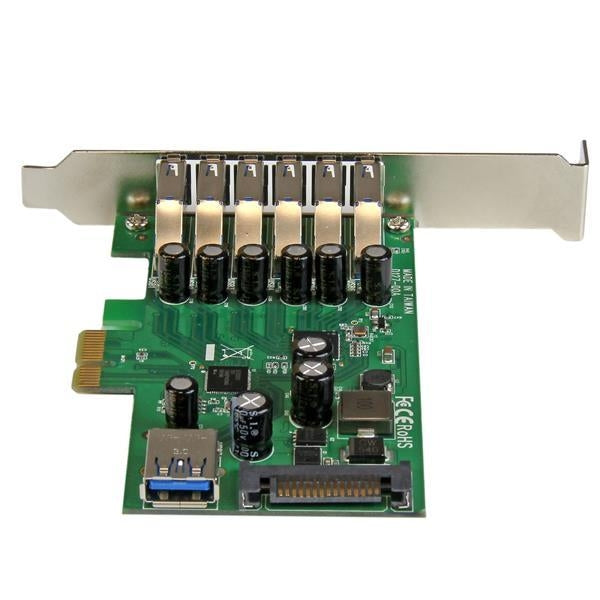

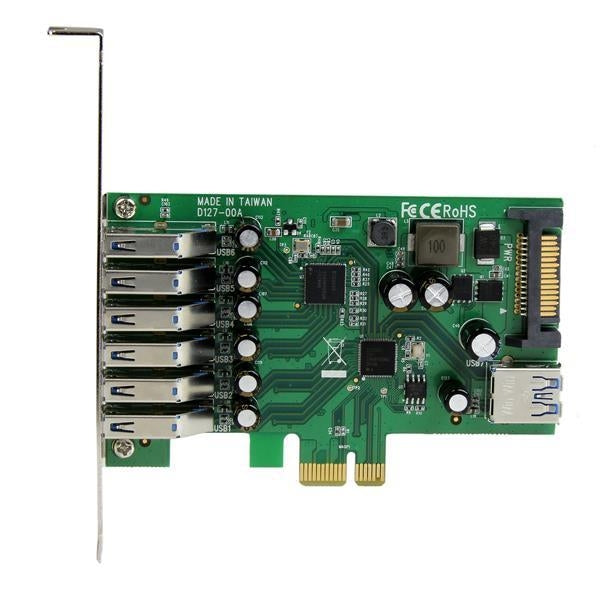

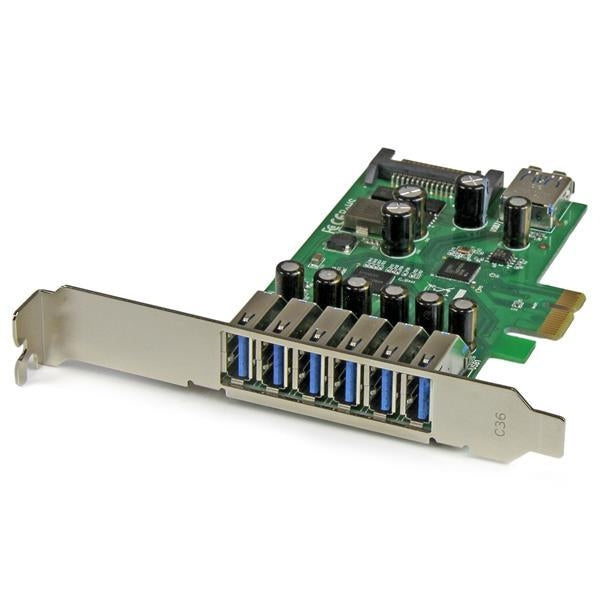

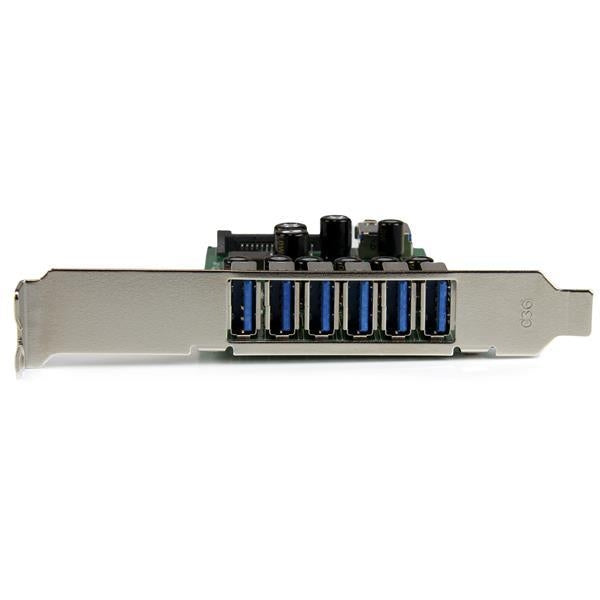

  • Extend your system capabilities by adding 7 USB 3.0 ports – 6 external and 1 internal – to any PCIe compatible computer
  • Unique dual-profile design fits standard and low-profile computers
  • Get up and running quickly with native OS support in Windows 8.1, 8, and Linux kernel 2.6.31 or later
  • Enjoy fast file transfers with USB 3.0 5Gbps and UASP support
  • Backward compatible with USB 2.0 and 1.x devices
  • SATA power connector with up to 900mA per port for high-power USB devices
  • PCIe x1 interface compliant with PCI Express 2.0 specifications




Ports & interfaces
Internal USB 3.0 ports quantity 1 Internal SATA ports quantity 1
USB 3.0 (3.1 Gen 1) Type-A ports quantity 6 Output interface SATA,USB 3.0
Internal Yes PCI Card form factor Full-height (low-profile)
Host interface PCIe
Performance
Data transfer rate (max) 5 Gbit/s Maximum cable length 3 m
UASP support Yes Chipset Renesas / NEC - µPD720201 & µPD720210
Design
Mean time between failures (MTBF) 1920042 h RoHS compliance Yes
Colour of product Green, Metallic Certification CE, FCC
System requirements
Linux operating systems supported Yes Server operating systems supported Windows Server 2008 R2,Windows Server 2012
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Operational conditions
Operating relative humidity (H-H) 20 - 80% Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Weight & dimensions
Width 20 mm Package weight 150 g
Package height 30 mm Height 120 mm
Package depth 170 mm Depth 115 mm
Package width 142 mm Weight 70 g

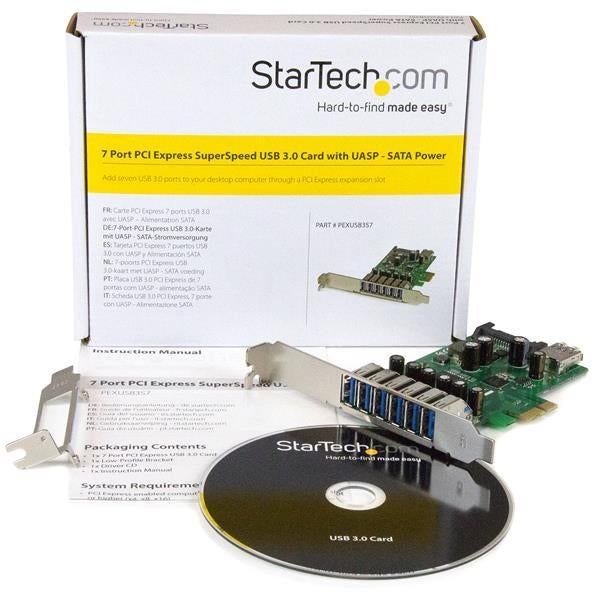

Packaging content
Manual Yes Mounting brackets included Yes
Drivers included Yes
