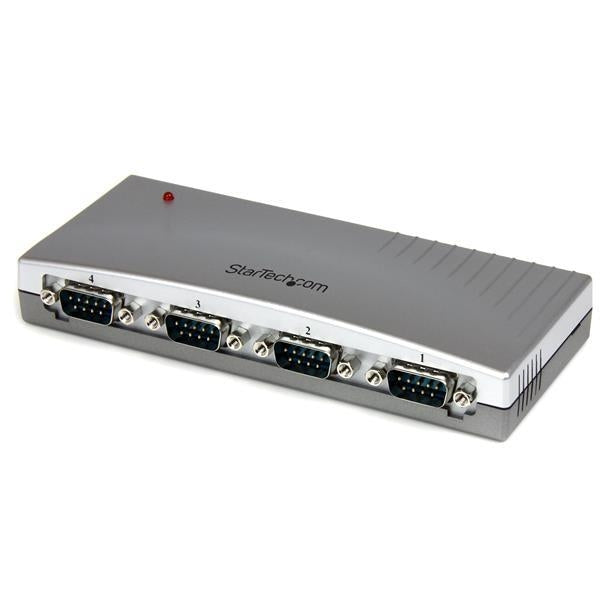

Item model number: ICUSB2324
  • Bus powered, no external power adapter required
  • Easy Plug-and-Play installation
  • Fully compliant with USB 1.1 specifications and compatible with USB 2.0

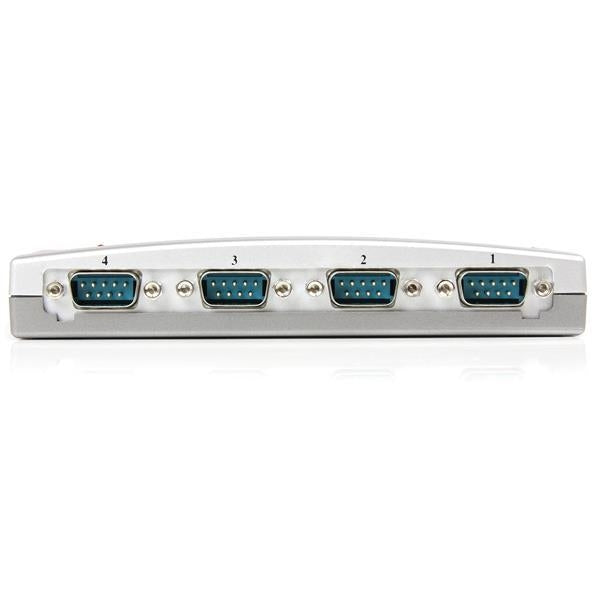

  • Provides you with four additional RS232 serial ports




Ports & interfaces
RS-232 ports 4 Hub interfaces Serial
Ports quantity 4 Host interface USB
Performance
Plug and Play Yes Certification CE, FCC, RoHS
Power
Power consumption (typical) 1 W Power consumption (max) 1.5 W
Design
Material Plastic Colour of product Silver
System requirements
Linux operating systems supported Yes Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
System requirements
Mac operating systems supported Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Operational conditions
Operating relative humidity (H-H) 5 - 95% Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -20 - 85 °C
Weight & dimensions
Width 66.5 mm Package weight 400 g
Package height 42 mm Height 26 mm
Package depth 230 mm Depth 150 mm
Package width 165 mm Weight 110 g

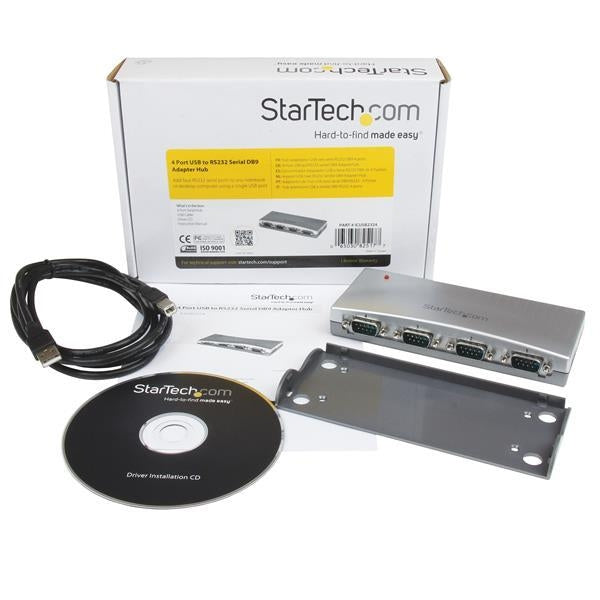

Packaging content
Manual Yes Cables included USB
Other features
Chipset FTDI - FT232RL
