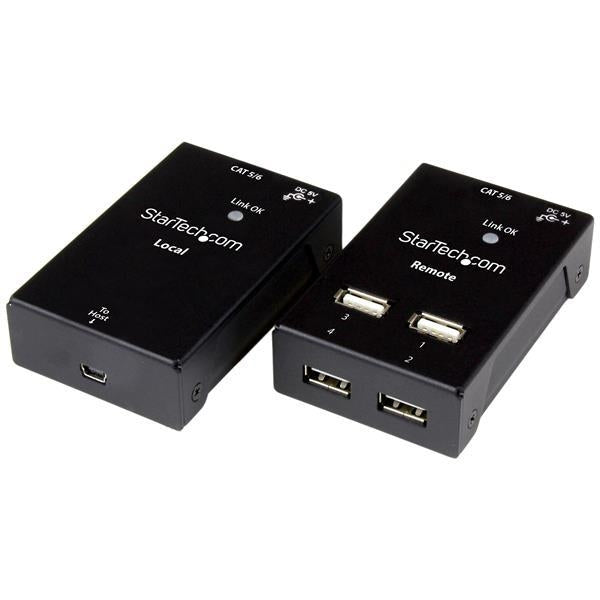

Item model number: USB2004EXTV
  • Place your devices where you need them with this cost-effective USB extender
  • Unique 4-port design with 2 ports on top for easy access
  • OS independent for fast, hassle-free set-up




Ports & interfaces
RJ-45 ports quantity 2 USB 2.0 ports quantity 4
Mini-USB 2.0 ports quantity 1 DC-in jack Yes
Technical details
Data transfer rate 480 Mbit/s Housing material Steel
RoHS compliance Yes Maximum transfer distance 50 m
Cable types supported Cat5,Cat5e,Cat6,Cat6a,Cat6e,Cat7 LED indicators Link, Power
Type Console transmitter & receiver Rubber feet Yes
Weight & dimensions
Weight 325 g Width 52 mm
Height 22 mm Package width 143 mm
Depth 80 mm
Weight & dimensions
Package weight 850 g Package height 63 mm
Package depth 168 mm
Operational conditions
Operating relative humidity (H-H) 0 - 80% Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Colour
Colour of product Black
Packaging content
Manual Yes AC adapter included Yes
Cables included LAN (RJ-45), USB
Power
Plug type Type M Output current 2 A
Output voltage 5 V Input voltage 100 - 240
Power consumption (max) 10 W
