Item model number: PEX4S553B
  • Native single chip design

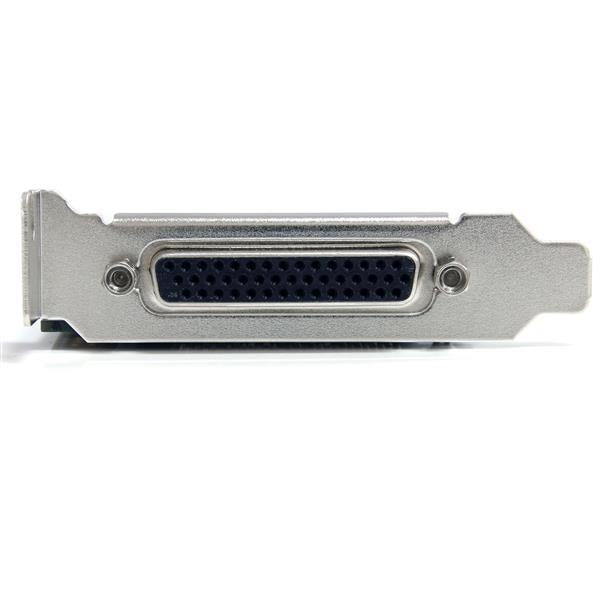

  • Includes a full profile and low profile/half-height bracket
  • On chip 256-byte depth FIFO in transmit/receive path of each port
  • Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
  • Supports hardware and software flow control
  • Supports data transfer rates up to 250Kbps on each port
  • Compliant with PCI Express base specifications revision 1.0a
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR




Ports & interfaces
Serial ports quantity 4 Host interface PCIe
Performance
Chipset MosChip MCS9901
Operational conditions
Storage temperature (T-T) -40 - 85 °C Operating temperature (T-T) 0 - 70 °C
Operating relative humidity (H-H) 5 - 85%
Weight & dimensions
Width 20 mm Height 62 mm
Depth 70 mm
Weight & dimensions
Package height 40 mm Package depth 175 mm
Package width 142 mm Weight 226.24 g
Other features
Data transfer rate 0.25 Mbit/s Connectivity technology Wired
Mac compatibility Yes Compatible operating systems DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Linux, Mac OS 10.4.x, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0
Ports quantity 4
