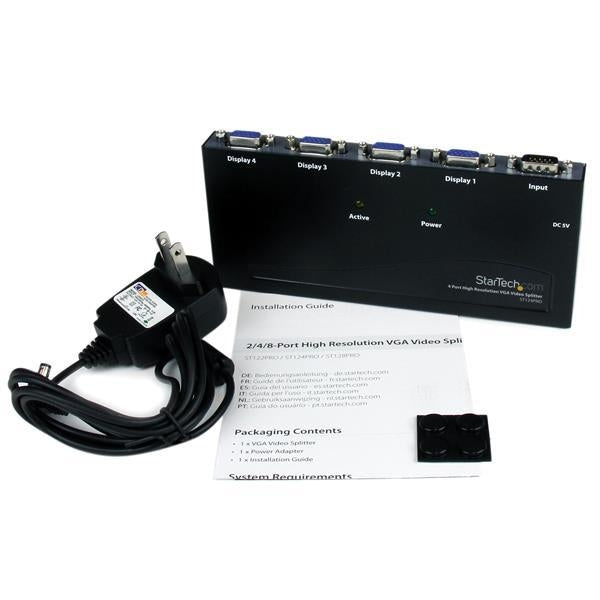

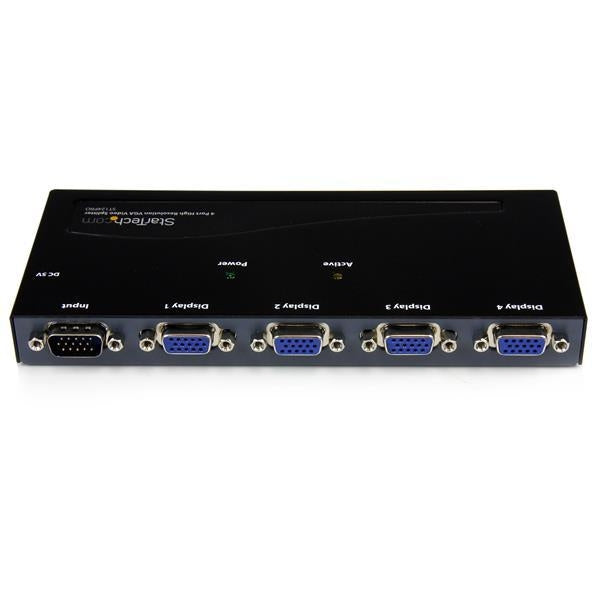

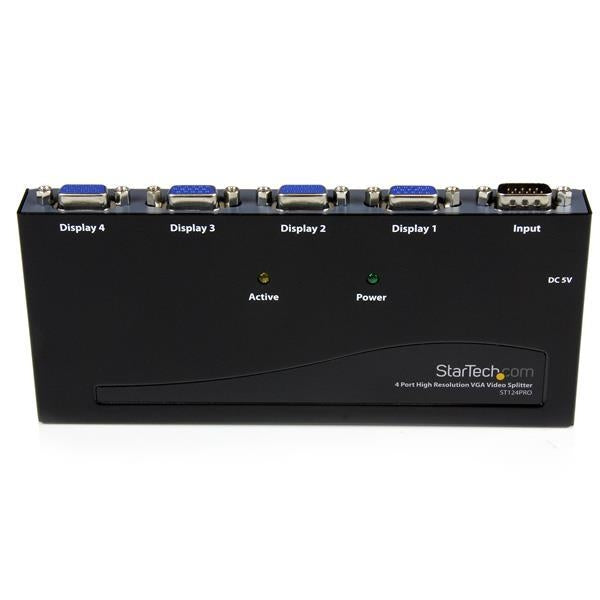

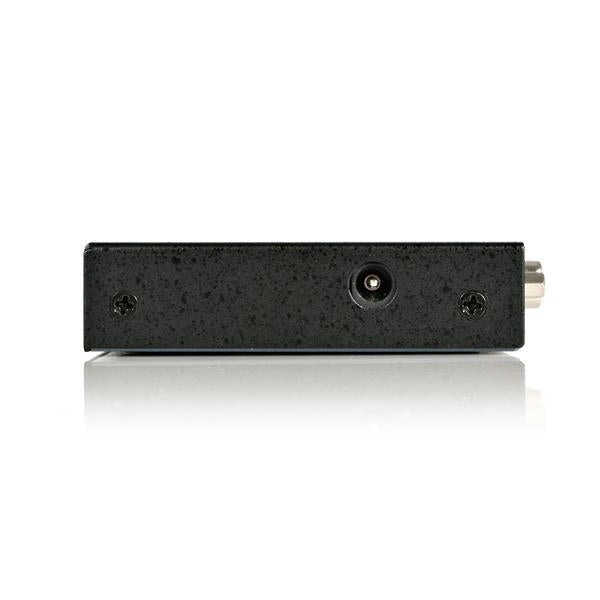

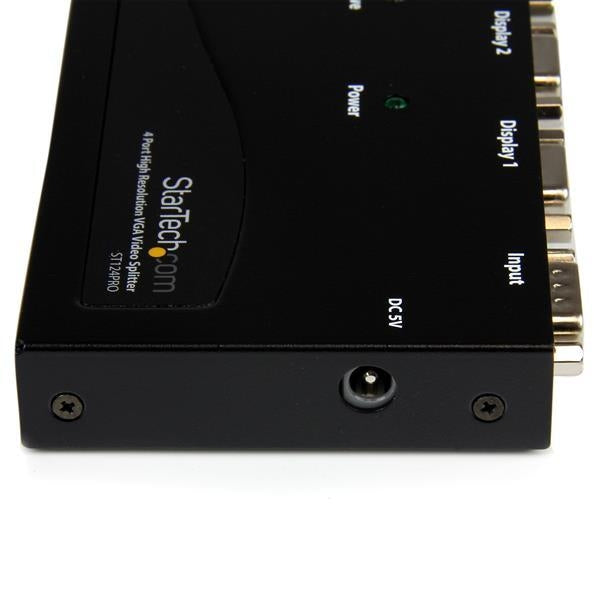

Item model number: ST124PRO
  • Allows 1 VGA video source to simultaneously display on 4 different monitors
  • Supports resolutions up to 2048x1536 @ 80Hz
  • High video bandwidth (350 MHz)
  • Daisy chainable for almost unlimited expansion
  • Maximum VGA cable length of 210ft (65m)
  • Uses standard monitor extension cables (See Accessories)
  • DDC compatible




Ports & interfaces
Connector(s) 1xHDDB15 Male (in) / 4xHDDB15 Female (out) Video ports quantity 4
Video
Maximum resolution 2048 x 1536 pixels Bandwidth 350 MHz
Technical details
Maximum operating distance 65 m
Weight & dimensions
Package height 89 mm Dimensions (WxDxH) 152 x 224 x 52 mm
Package width 184 mm
