Item model number: POEINJ4G

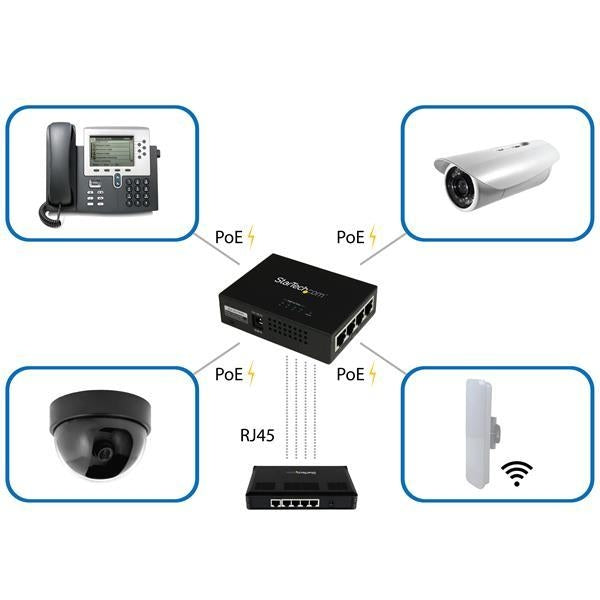

  • Easily connect, power, and operate up to four Gigabit PoE-powered devices (PD)
  • Delivers full power to each port — up to 30.8 watts (802.3at) or 15.4 watts (802.3af) to each connected device

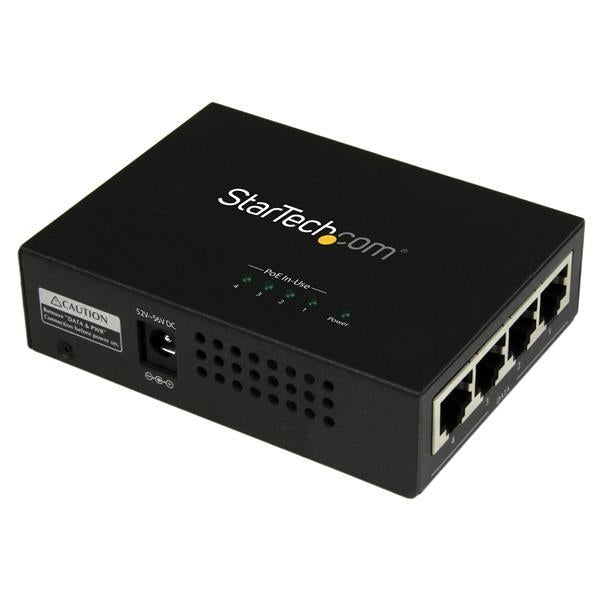

  • Flexible setup, with a desktop-sized, or wall-mountable metal housing
  • Plug-and-play setup and operation
  • Automatically detects the powered device to provide the appropriate level of power output
  • Circuit protection prevents power interference between each port
  • Support for 10/100/1000 Mbps networks and devices, as well as Auto-Negotiation and auto-MDIX




Performance
Full duplex Yes Auto MDIX IEEE Yes
Data transfer rate 2000 Mbit/s Mean time between failures (MTBF) 50000 h
Plug and Play Yes Power over Ethernet (PoE) Yes
Maximum transfer distance 100 m Type Network transmitter
Duplex system Full Auto-negotiation Yes
Networking
Cabling technology 10/100/1000Base-T(X) Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Ports & interfaces

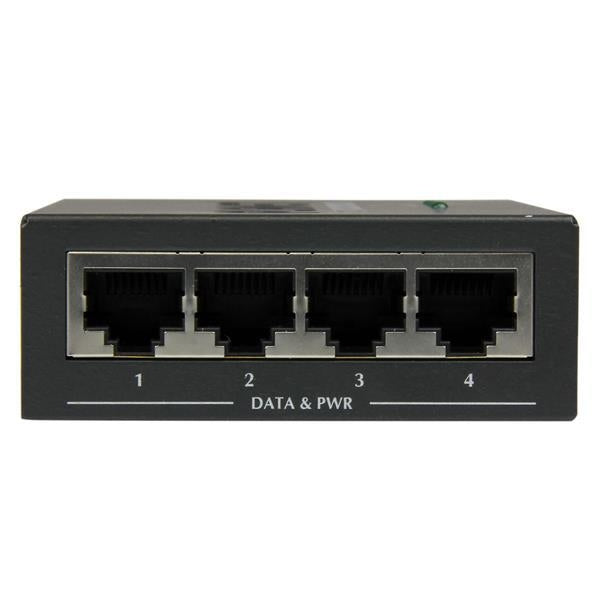

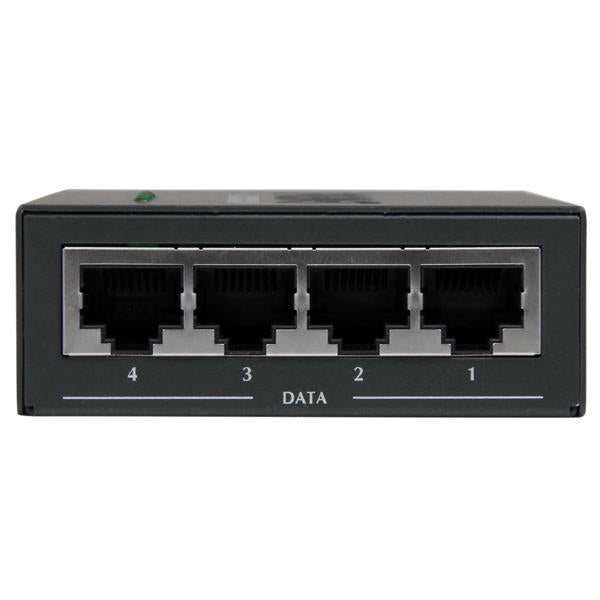

Power over Ethernet (PoE) ports quantity 4 Ethernet LAN (RJ-45) ports 8

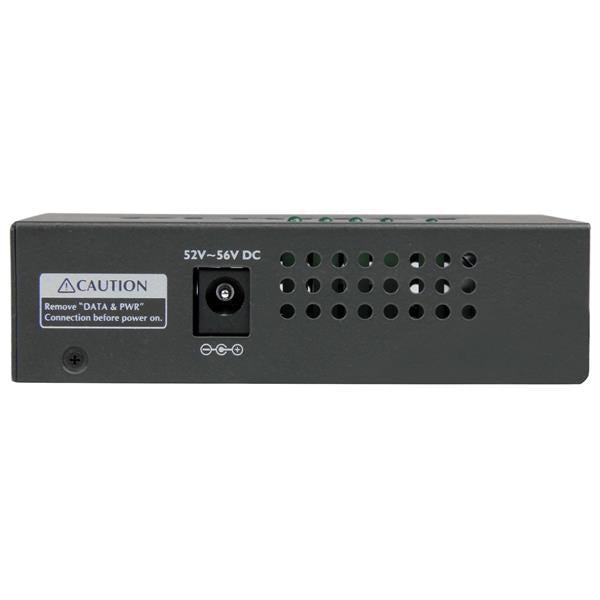

DC-in jack Yes
Design
Housing material Steel RoHS compliance Yes
Colour of product Black LED indicators PoE, Power
Certification CE, FCC
Power
Plug type Type M Output current 2.31 A
Output voltage 52 V AC input voltage 100-240
Power consumption (max) 120 W
Operational conditions
Operating relative humidity (H-H) 5 - 95% Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -10 - 70 °C
Weight & dimensions
Width 70 mm Height 26 mm
Depth 94 mm Weight 204 g

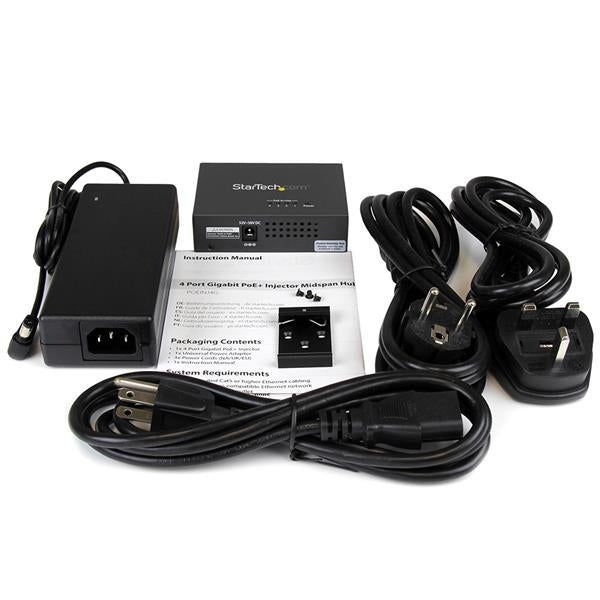

Packaging content
Manual Yes AC adapter included Yes
Cables included AC
Packaging data
Package weight 1.5 kg Package height 100 mm
Package depth 255 mm Package width 220 mm
