StarTech.com

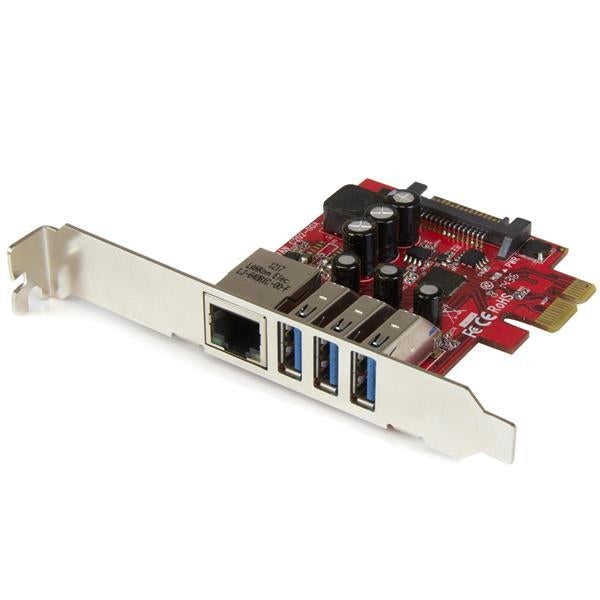

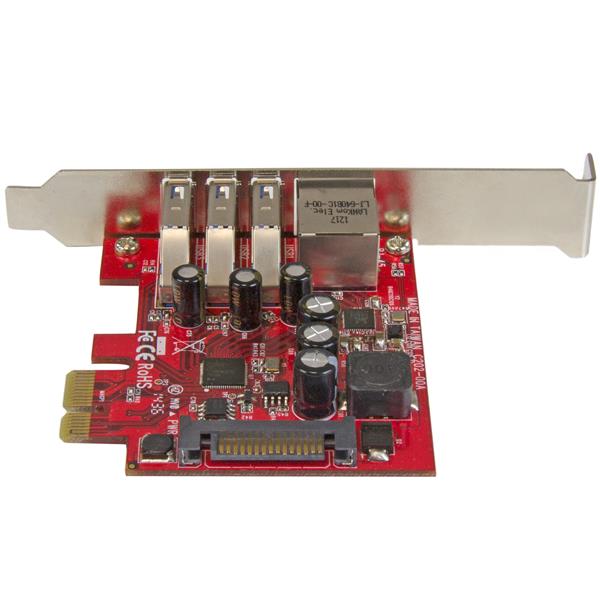

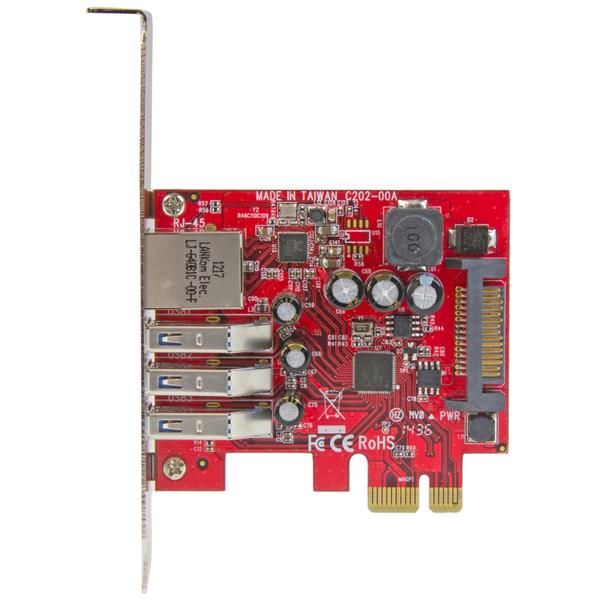

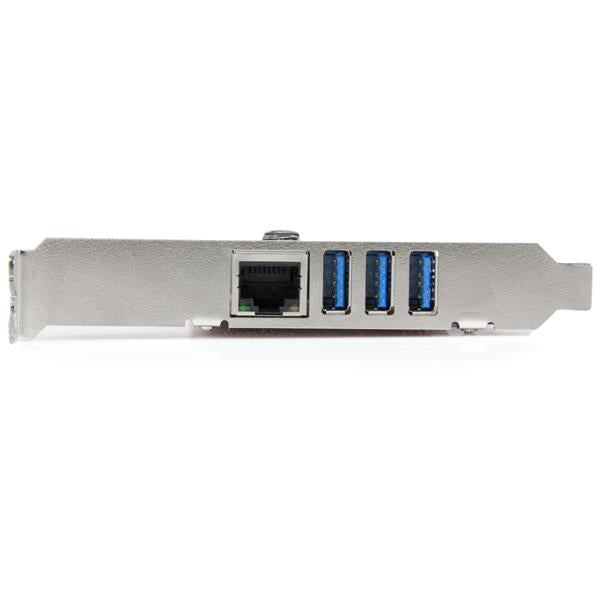

StarTech 3-Port PCI Express USB 3.0 Card + Gigabit Ethernet (PEXUSB3S3GE)
$75.98 CAD
/
Item model number: PEXUSB3S3GE
- Frees up a PCIe slot by consolidating 3x USB 3.0 & 1x Gigabit Ethernet ports into a single card
- Provides installation flexability for standard and low-profile computers, with a dual-profile design
- Lets you save money and connect your existing devices with USB 2.0 and 1.x backward compatibility
- Perfect for high-powered USB devices, with optional SATA power providing up to 900mA per port
- PCIe x1 interface, compliant with PCI Express 2.0 specifications
- Supports Wake-On-LAN, Energy-Efficient Ethernet, jumbo frames, full duplex flow control, VLAN tagging, and layer 2 priority encoding
Specification
Ports & interfaces | |||
---|---|---|---|
PCI version | 2.0 | Ethernet LAN (RJ-45) ports | 1 |
USB 3.0 (3.1 Gen 1) Type-A hub ports quantity | 3 | USB version | 3.0 (3.1 Gen 1) |
Internal | Yes | Interface | Ethernet |
Connectivity technology | Wired | Host interface | PCI-E |
Bandwidth | |||
---|---|---|---|
Full duplex | Yes | Data transfer rate (max) | 5000 Mbit/s |
Networking | |||
---|---|---|---|
VLAN tagging | Yes | Cabling technology | 10/100/1000BaseT(X) |
Ethernet LAN | Yes | Flow control support | Yes |
Jumbo frames | 9000 | Jumbo frames support | Yes |
Networking standards | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x | Chipset | Renesas / NEC - µPD720201, Realtek - RTL8153 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Design | |||
---|---|---|---|
Colour of product | Metallic, Red | LED indicators | Activity, Link |
PCI Card form factor | Full-height (low-profile) |
Performance | |||
---|---|---|---|
Auto MDIX IEEE | Yes | Mean time between failures (MTBF) | 1920042 h |
Wake-on-LAN ready | Yes |
Performance | |||
---|---|---|---|
Linux operating systems supported | Yes | UASP support | Yes |
Server operating systems supported | Windows Server 2008 R2,Windows Server 2012 | USB data transfer rates | 5000 Mbit/s |
Auto-negotiation | Yes | Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
Weight & dimensions | |||
---|---|---|---|
Width | 18 mm | Package weight | 150 g |
Package height | 30 mm | Height | 120 mm |
Package depth | 142 mm | Depth | 77 mm |
Package width | 170 mm | Weight | 60 g |
Certificates | |||
---|---|---|---|
Certification | CE, FCC | RoHS compliance | Yes |
Operational conditions | |||
---|---|---|---|
Operating relative humidity (H-H) | 20 - 80% | Operating temperature (T-T) | 5 - 50 °C |
Storage temperature (T-T) | -25 - 70 °C |

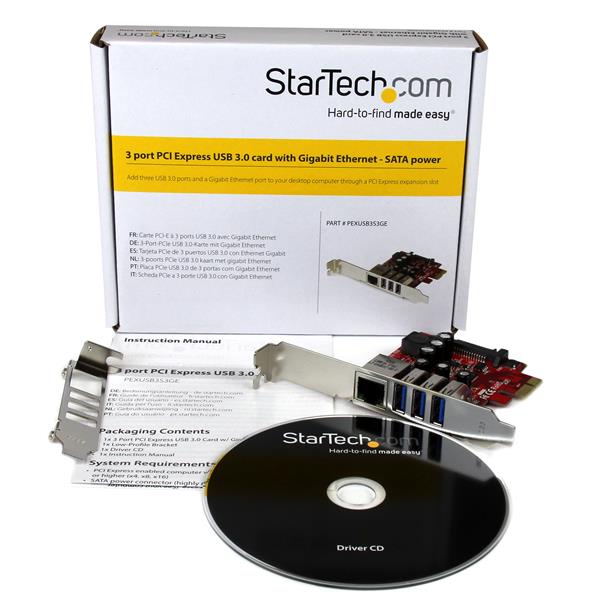

Packaging content | |||
---|---|---|---|
Number of products included | 1 pc(s) | Manual | Yes |
Mounting brackets included | Yes | Drivers included | Yes |
