Item model number: PEXM2SAT32N1

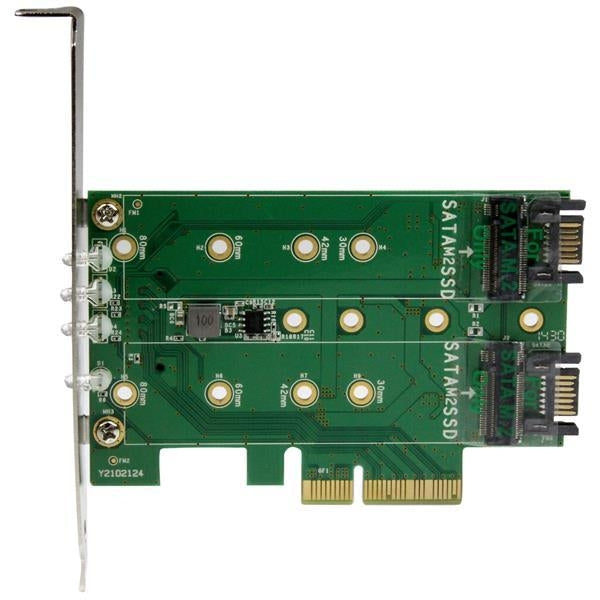

  • Expand the storage and improve the performance of your computer, with slots for two M.2 SATA SSDs and one M.2 PCIe SSD

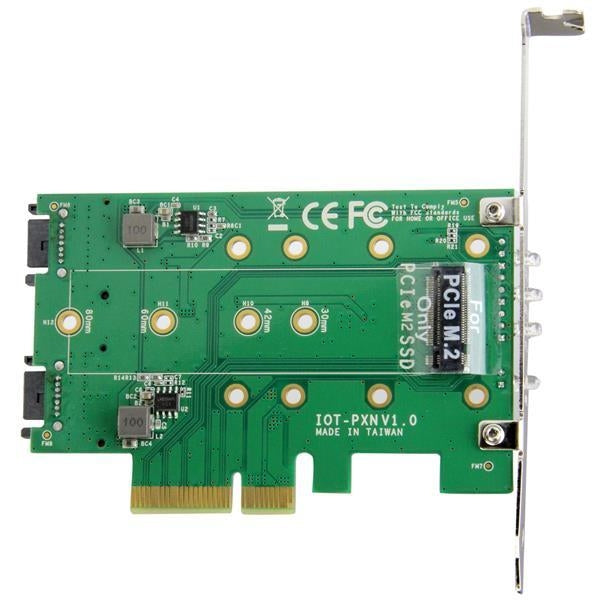

  • Supports PCI Express 3.0 (x4), ideal for a high-performance M.2 PCIe SSD (NVMe)
  • SATA slots feature a passthrough design, so your drives can connect to the SATA ports on your host PC
  • Full bandwidth is available for each M.2 drive simultaneously (up to approximately 40Gbps for M.2 PCIe drives, and up to 6Gbps for M.2 SATA III drives)
  • Wide installation compatibility, with support for a range of M.2 drives (2280, 2260, 2242, 2230)
  • Adjustable stand-offs and multiple mounting holes support 80 mm, 60 mm, 42 mm, and 30 mm SSDs
  • OS independent with no drivers required, for a fast, hassle-free setup

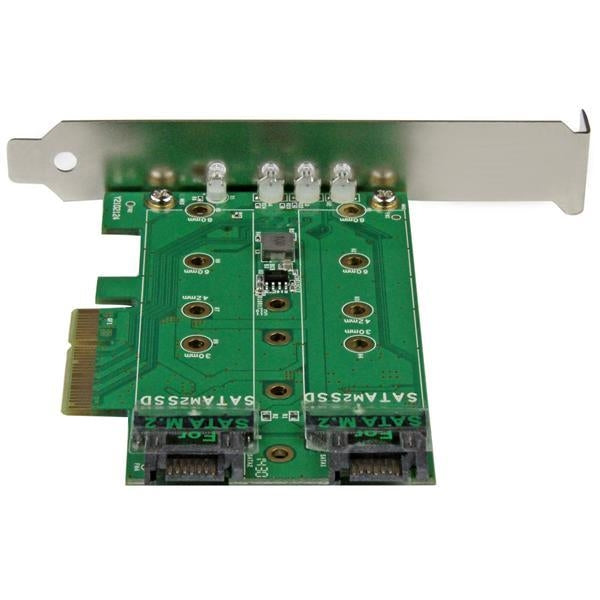

  • Equipped with a full-profile bracket, includes a low-profile (half-height bracket) for installation in small form-factor computers
  • Installs into x4, x8, or x16 PCIe slots




Ports & interfaces
Internal SATA ports quantity 2 PCIe version 3.0
Output interface M.2,SATA SATA revision 3.0
Internal Yes PCI Card form factor Full-height (low-profile)
Host interface PCIe
Performance
Port multiplier No Data transfer rate (max) 6 Gbit/s
Design
Mean time between failures (MTBF) 50000 h RoHS compliance Yes
Certification CE, FCC
Operational conditions
Operating relative humidity (H-H) 20 - 80% Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Weight & dimensions
Width 20 mm Package weight 122 g
Package height 44 mm Height 120 mm
Package depth 160 mm Depth 120 mm
Package width 130 mm Weight 46 g

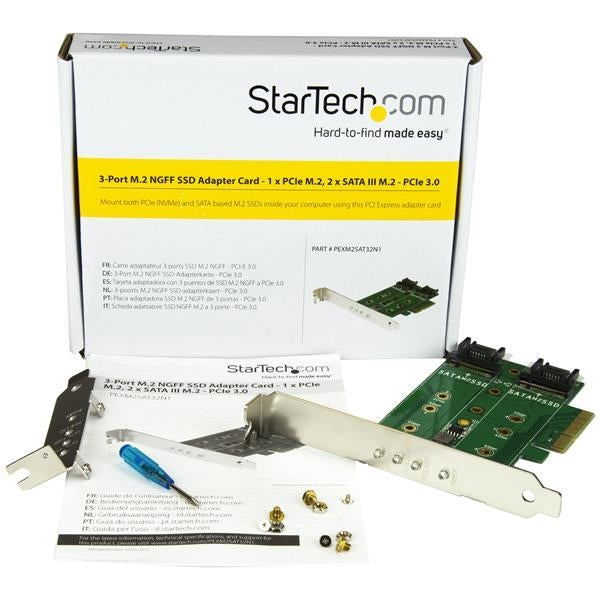

Packaging content
Mounting brackets included Yes Quick installation guide Yes
