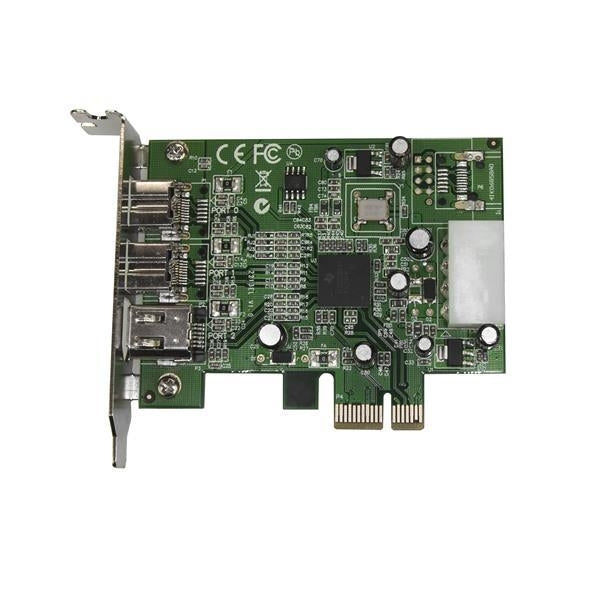

Item model number: PEX1394B3LP
  • Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
  • One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
  • Includes full/standard profile installation bracket
  • Built with a native PCI Express chipset, no bridge chip
  • Internal power connector for high-powered FireWire devices
  • Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
  • Plug-and-Play and hot-swap compatible




Ports & interfaces
Firewire (IEEE 1394) ports 3 FireWire 800 ports quantity 2
FireWire 400 ports quantity 1 Output interface IEEE 1394/Firewire
Internal Yes Host interface PCIe
Performance
Data transfer rate (max) 0.8 Gbit/s Hot-swap Yes
Plug and Play Yes Chipset LSI/Agere - FW643
Design
RoHS compliance Yes Colour of product Green
Certification CE, FCC
System requirements
Mac operating systems supported Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
System requirements
Linux operating systems supported Yes Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012
Operational conditions
Operating relative humidity (H-H) 0 - 90% Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -20 - 90 °C
Weight & dimensions
Width 58 mm Package weight 190 g
Package height 30 mm Height 20 mm
Package depth 175 mm Depth 90 mm
Package width 145 mm Weight 40 g
Packaging content
Manual Yes Mounting brackets included Yes
Cables included FireWire
