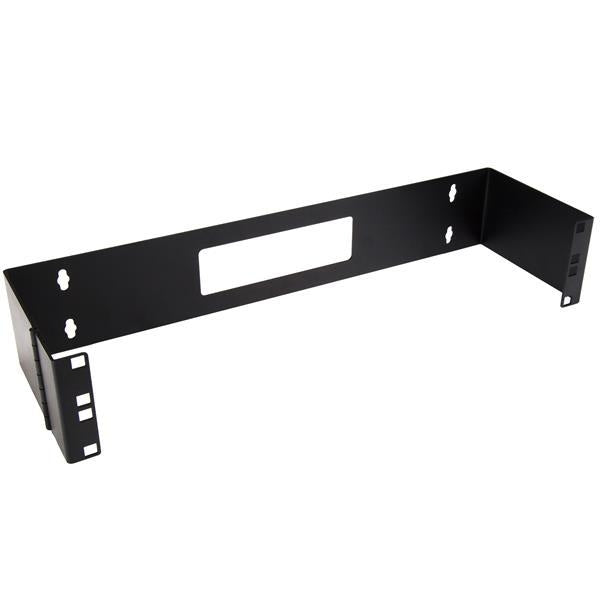

StarTech 2U 19in Hinged Wall Mount Bracket for Patch Panels (WALLMOUNTH2)

Item model number: WALLMOUNTH2

• Sturdy cold rolled steel construction
• 2U rack height
• Hinged side panel for easy equipment access
• 10 kg (22 lbs) weight capacity
• Wall mounting holes are 16” center to center for greater stability, and mounting to standard wall studs

Specification

Features
Mounting hole shape	Square	Adjustable mounting rails	No
Material	Aluminium, Steel	Maximum weight capacity	10 kg
Frame type	Open	Colour of product	Black
Type	Wall mounted rack	Castor wheels	No
Cable management	No	Certification	RoHS
Design	2-post

Weight & dimensions
Width	501 mm	Depth	151 mm

Weight & dimensions
Inner width	49.7 cm	Package weight	800 g
Package height	105 mm	Inner depth	14.8 cm
Height	88 mm	Package depth	525 mm
Package width	195 mm

Packaging content
Nuts included	Yes	Number of nuts	4

Technical details
Rack capacity	2U

Other features
Compliance industry standards	EIA-310-D
