StarTech.com

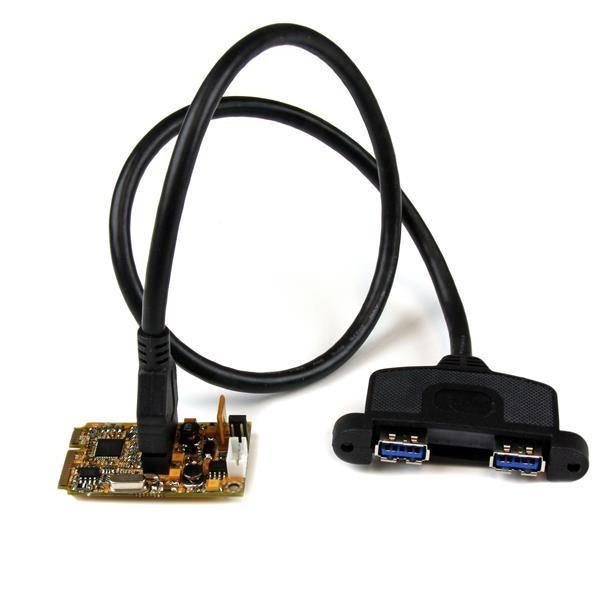

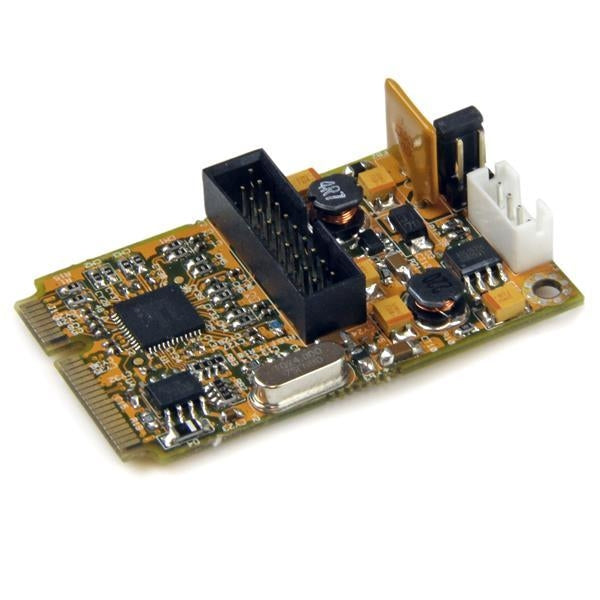

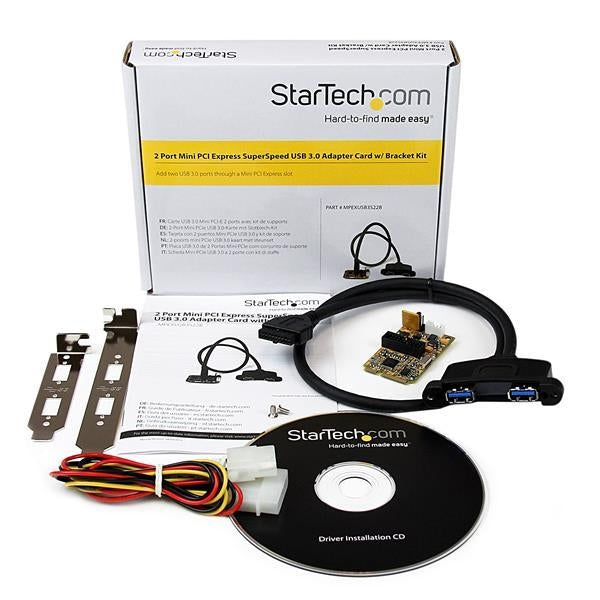

StarTech 2 Port SuperSpeed Mini PCI Express USB 3.0 Adapter Card w/ Bracket Kit and UASP Support (MPEXUSB3S22B)
$82.98 CAD
/
Shipping calculated at checkout.
Pickup available at 11771 Horseshoe Way
Usually ready in 24 hours
Item model number: MPEXUSB3S22B
- Two external USB 3.0 type A ports
- UASP support for more efficient data transfer
- Provides up to 900mA of power per port
- Fully Compliant with USB 3.0 and Intel xHCI Specification
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- PCI Express Base Specification 2.0 Compliant (backward compatible with 1.0a/1.1)
- Supports Control / Bulk / Interrupt / Isochronous USB Transfer Modes
Specification
| Ports & interfaces | |||
|---|---|---|---|
| Connector(s) | 1 x IDC, 1 x SP4, 1 x Mini PCI Express x1, 2 x USB 3.0 A | USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
| Output interface | USB 3.0 | Internal | No |
| Host interface | PCIe | ||
| Performance | |||
|---|---|---|---|
| Data transfer rate (max) | 5 Gbit/s | Chipset | Renesas - uPD720202 |
| Design | |||
|---|---|---|---|
| RoHS compliance | Yes | Colour of product | Black |
| Certification | FCC, CE | ||
| System requirements | |||
|---|---|---|---|
| Windows operating systems supported | Yes | ||
| System requirements | |||
|---|---|---|---|
| Server operating systems supported | Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2 | ||
| Operational conditions | |||
|---|---|---|---|
| Operating temperature (T-T) | 0 - 55 °C | Storage temperature (T-T) | -20 - 85 °C |
| Weight & dimensions | |||
|---|---|---|---|
| Width | 30 mm | Package weight | 207 g |
| Package height | 32 mm | Package depth | 175 mm |
| Depth | 51 mm | Package width | 143 mm |
| Weight | 61 g | ||
| Other features | |||
|---|---|---|---|
| Compliance industry standards | Intel xHCI | Cable length | 0.6 m |
