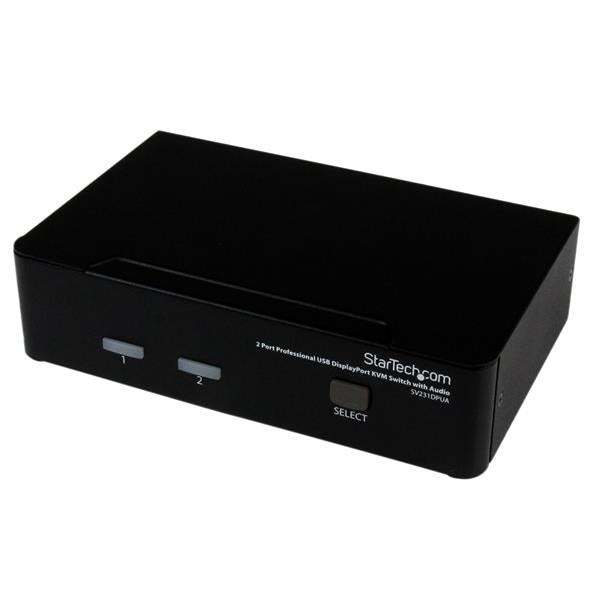

StarTech 2 Port Professional USB DisplayPort KVM Switch with Audio (SV231DPUA)

Item model number: SV231DPUA

• Supports native DisplayPort computer connections - no adapter required
• Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p
• Supports a maximum resolution of 3840 x 2400 at lower refresh rates

Specification

Networking
Ethernet LAN	No

Ports & interfaces
Audio connections	Yes	Number of microphone inputs	3
USB 2.0 hub ports quantity	2	Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Headphone outputs	3	Video port type	DisplayPort
Mouse port type	USB	Keyboard port type	USB
USB connector type	USB Type-A	DC-in jack	Yes
Number of computers controlled	2

Video
HD type	4K Ultra HD	Maximum resolution	3840 x 2400 pixels

Design
Rack mounting	No	Hot keys	Yes
Material	Steel	Colour of product	Black
Push button	Yes	LED indicators	Yes

Display
On Screen Display (OSD)	No	Built-in display	No

Performance
Hot-Plug support	Yes	DDC2B support	Yes
Daisy chain	No	Audio channels	7.1
Plug and Play	Yes

Power
Compatible power plug types	AU,EU,UK,US	Plug type	Type M
Output current	2 A	Output voltage	12 V
External power adapter	Yes	Input current	0.8
AC input voltage	110 - 240	Power consumption (typical)	24 W

Technical details
USB hub	Yes

Operational conditions
Operating relative humidity (H-H)	0 - 80%	Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Certificates
Certification	CE, UL, FCC, CEA	RoHS compliance	Yes

Weight & dimensions
Width	220 mm	Package weight	1.3 kg
Package height	181 mm	Height	44 mm
Package depth	250 mm	Depth	130 mm
Package width	100 mm	Weight	1.1 kg

Packaging content
Manual	Yes	AC adapter included	Yes
Rubber feet	Yes

Other features
Audio support	No	IP control	No
