Item model number: PEXUSB3S25
  • Provides two external USB 3.0 ports with UASP support
  • Supports data rates up to 5 Gbps
  • Compliant with PCI Express 2.0 specifications
  • Optional LP4 power connector provides up to 900mA per USB port
  • Supports USB Battery Charging Specification 1.2
  • Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
  • Backward compatible with USB 2.0 and USB 1.0/1.1 devices
  • Includes a Low-Profile/half-height installation bracket




Ports & interfaces
PCIe version 2.0 USB 3.0 (3.1 Gen 1) Type-A ports quantity 2
Output interface USB 3.0 Internal Yes
PCI Card form factor Full-height (low-profile) Host interface PCIe
Performance
Data transfer rate (max) 5 Gbit/s Maximum cable length 3 m
UASP support Yes Chipset Renesas / NEC - µPD720202
Design
RoHS compliance Yes Certification CE, FCC
System requirements
Linux operating systems supported Yes Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
System requirements
Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Operational conditions
Operating relative humidity (H-H) 5 - 85% Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Weight & dimensions
Width 18 mm Package weight 153 g
Package height 28 mm Height 120 mm
Package depth 170 mm Depth 82 mm
Package width 142 mm Weight 51 g

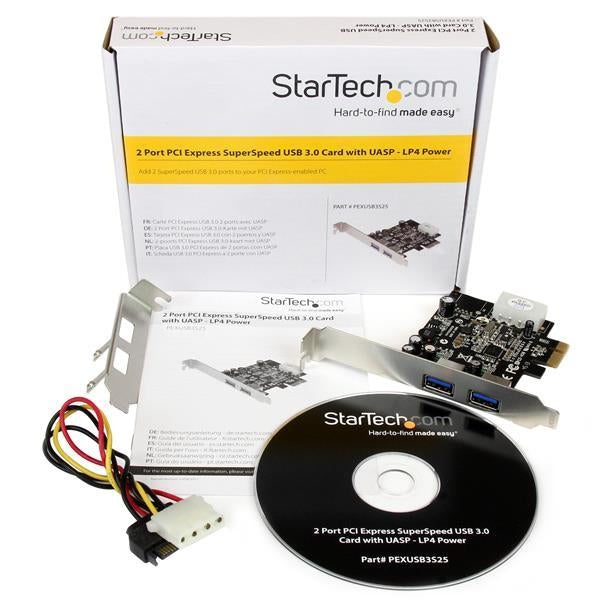

Packaging content
Manual Yes Drivers included Yes
Cables included SATA
