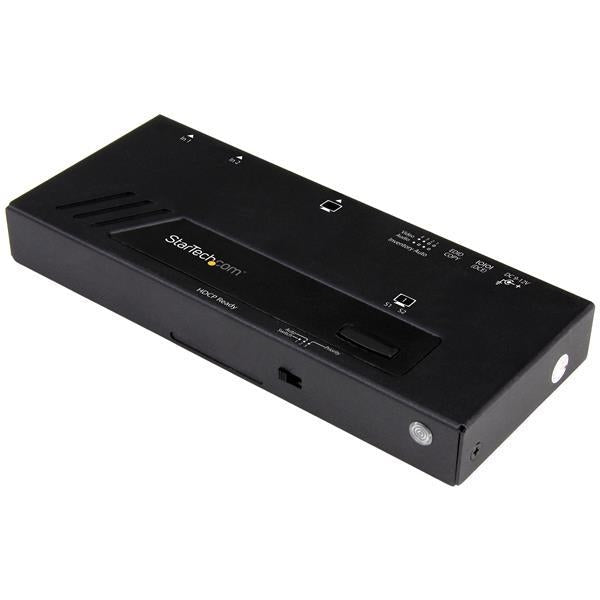

StarTech 2-Port HDMI Automatic Video Switch - 4K with Fast Switching (VS221HD4KA)

Item model number: VS221HD4KA

• Switch between two HDMI sources on a single HDMI display w/ 4K video resolution and fast switching for minimal disruption
• 2-port HDMI automatic video switch / RS-232 serial control interface
• 4K 2x1 HDMI switch w/ fast switching and auto-sensing / Backward compatible w/ high-definition 1080p
• Two port 4K Ultra High Def HDMI switch with remote control switching / Versatile audio configuration w/ support for 5.1 or 7.1 surround sound
• Support for EDID copy ensures accurate display output

Specification

Technical details
Supported graphics resolutions	1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA)	Maximum resolution	3840 x 2160 pixels
Audio output channels	7.1 channels	Remote control type	IR
HDMI version	1.4	Audio support	Yes
Colour of product	Black	LED indicators	Activity, Power
HDCP	Yes

Ports & interfaces
Number of HDMI outputs	1	HDMI in	2
DC-in jack	Yes

Operational conditions
Storage temperature (T-T)	-20 - 70 °C	Operating temperature (T-T)	0 - 50 °C

Operational conditions
Operating relative humidity (H-H)	0 - 80%

Certificates
Certification	CE, FCC	RoHS compliance	Yes

Power
AC adapter output voltage	12 V	AC adapter input voltage	100 - 240 V
AC adapter input current	1.5 A

Weight & dimensions
Package weight	65 g	Package height	64 mm
Package depth	235 mm	Package width	155 mm

Packaging content
Mounting brackets included	Yes	Handheld remote control	Yes
AC adapter included	Yes	Cables included	Phone (RJ-11)
