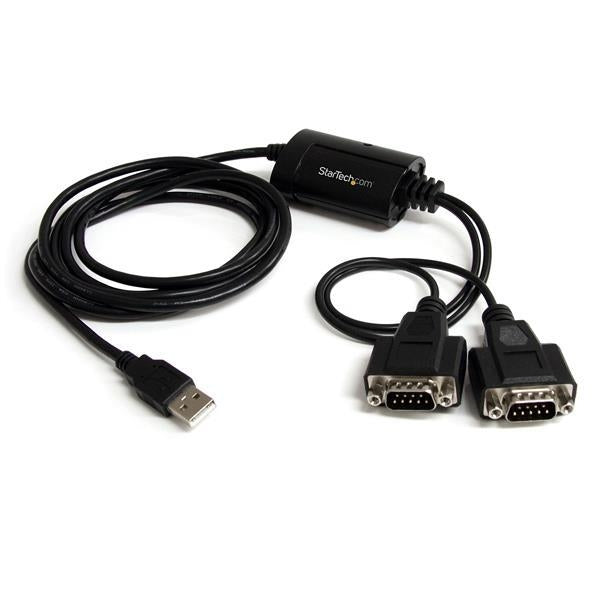

Item model number: ICUSB2322F
  • Single cable design for portability
  • Wall mountable design
  • Integrated FTDI USB UART Chip
  • COM Port assignments maintained across reboot
  • Compatible with Windows®, Mac OS and Linux
  • Baud Rate up to 921.6 Kbps
  • Powered by the USB port - no external power adapter required
  • Designed to make serial port expansion quick and easy
  • 6-foot cable length for connecting to devices without having to be too close




Ports & interfaces
Gender Male/Male Connector 1 USB 2.0 A
Connector 2 DB9
Design
Cable length 2.133 m RoHS compliance Yes
Material Plastic Colour of product Black
Certification CE, FCC
Performance
Baud rate 921.6 Kbit/s Data bits 7, 8
FIFO (First In, First Out) 128 B Parity bit Even, Mark, N, Odd, Space
Stop bits 1, 2 Chipset FTDI - FT2232D
Performance
Compatible operating systems Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ 2000/ CE(4.2+), Windows Server 2008 R2/ 2003(32/64), Mac OS 9.x, 10.x, Linux
Operational conditions
Operating temperature (T-T) 0 - 55 °C Relative humidity 5 - 95%
Storage temperature (T-T) -20 - 85 °C
Weight & dimensions
Width 45 mm Height 20 mm
Depth 2133 mm Weight 159 g
Packaging data
Package weight 200 g Package height 30 mm
Package depth 175 mm Package width 145 mm
Packaging content
Manual Yes Drivers included Yes
Quantity 1
