StarTech.com

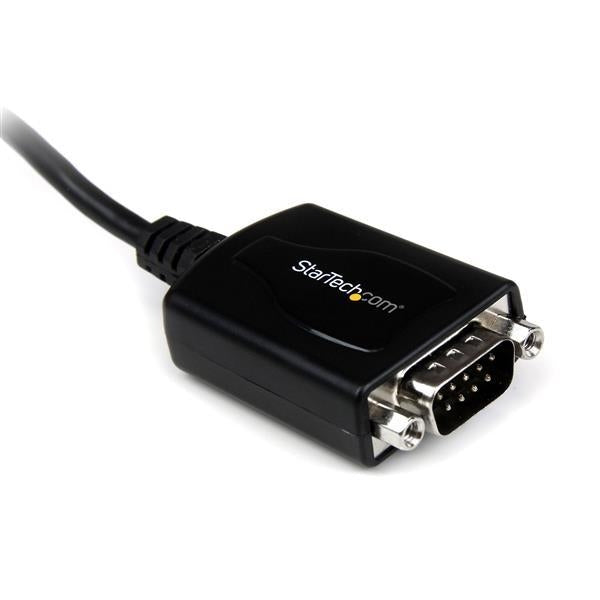

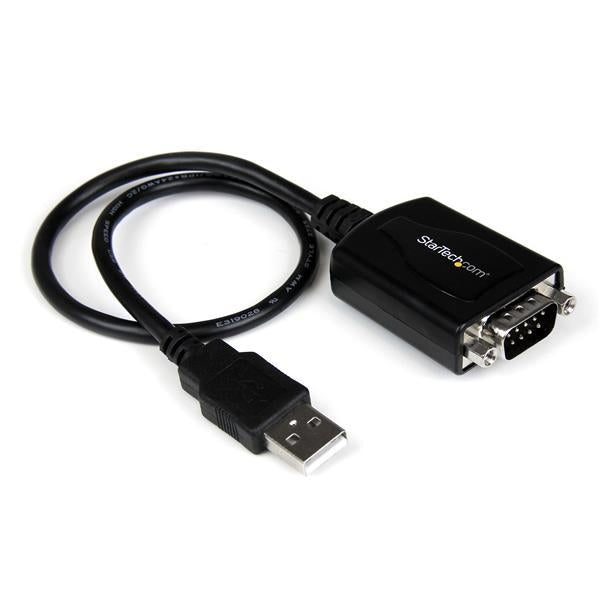

StarTech 1ft USB to RS232 DB9 Adapter Hub with COM Retention Retail (ICUSB232PRO)
$42.98 CAD
/
Shipping calculated at checkout.
Item model number: ICUSB232PRO
- USB to Straight-Through RS232 Serial Adapter
- Supports data transfer rates of up to 920kpbs
- COM Port assignments maintained across reboot
- Powered by an available USB port - no external power adapter required
- Provides dual buffers for upstream and downstream data transfer
- Supports remote wake up and power management control
- Supports automatic handshake mode
Specification
| Ports & interfaces | |||
|---|---|---|---|

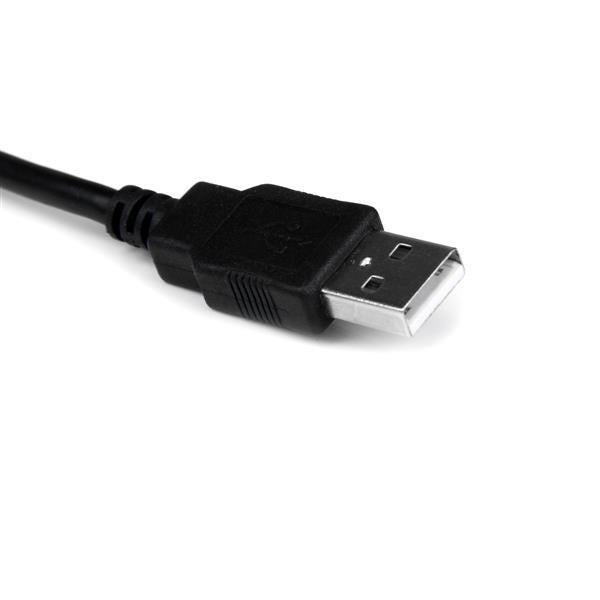

| Gender | Male/Male | Connector 1 | USB 2.0 A |
| Connector 2 | DB-9 | ||
| Design | |||
|---|---|---|---|
| Cable length | 0.3 m | RoHS compliance | Yes |
| Material | Plastic | Colour of product | Black |
| Certification | CE, FCC | ||
| Performance | |||
|---|---|---|---|
| Baud rate | 921.6 Kbit/s | Compatible operating systems | - Windows PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10 - Windows Server 2003, 2008 R2, 2012, 2016 - Mac OS X 10.6 to 10.12 - Linux 2.4.x to 4.4.x LTS Versions only |
| Chipset | Prolific - PL-2303 Interface Serial | ||
| Operational conditions | |||
|---|---|---|---|
| Operating temperature (T-T) | -10 - 80 °C | Relative humidity | 5 - 85% |
| Storage temperature (T-T) | -20 - 100 °C | ||
| Weight & dimensions | |||
|---|---|---|---|
| Width | 34 mm | Height | 15 mm |
| Depth | 400 mm | Weight | 70 g |
| Packaging data | |||
|---|---|---|---|
| Package length | 8.27 mm | Package weight | 100 g |
| Package height | 142 mm | Package depth | 210 mm |
| Package width | 38 mm | ||

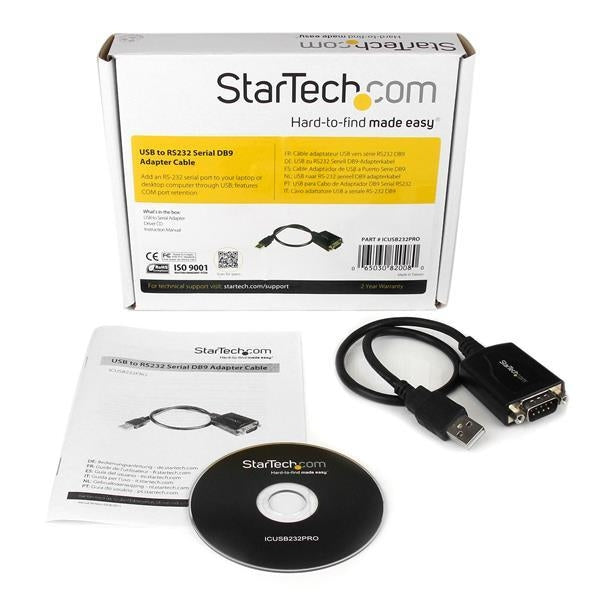

| Packaging content | |||
|---|---|---|---|
| Manual | Yes | Drivers included | Yes |
| Quantity | 1 | ||
