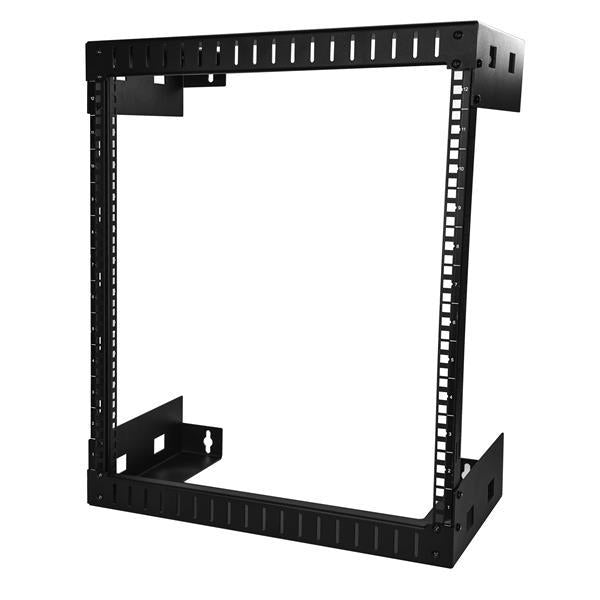

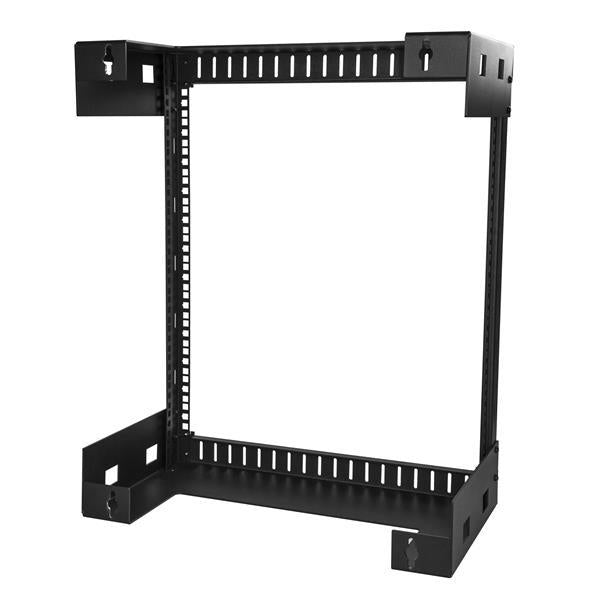

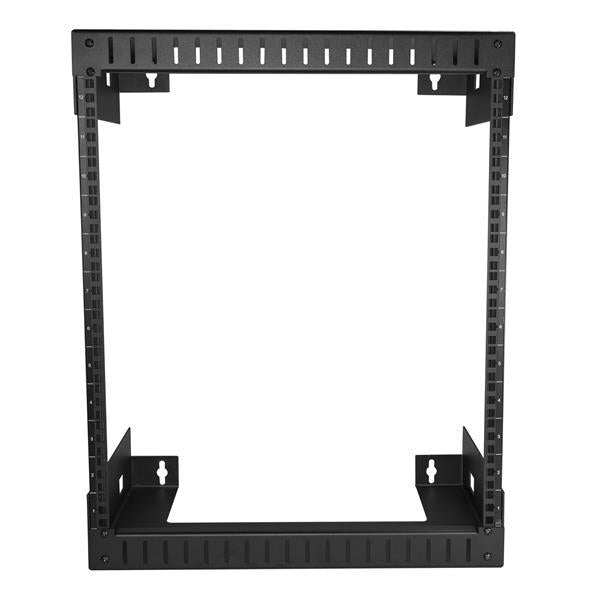

Item model number: RK12WALLO
  • Save space by mounting your equipment on the wall
  • Easy installation with mounting holes spaced 16 in. apart to match standard wall studs

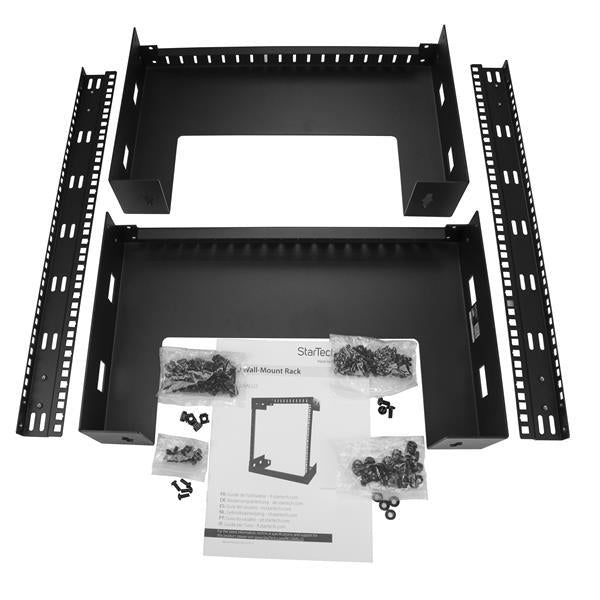

  • Comes in a flat-pack, for easy transport
  • Open frame provides passive cooling for equipment




Features

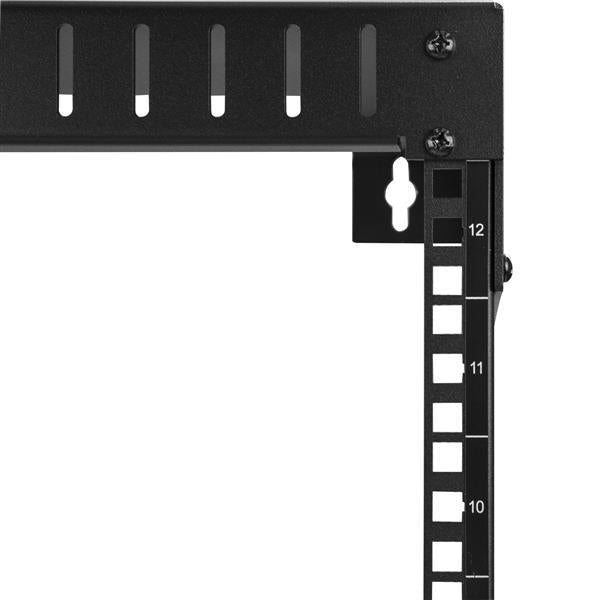

Mounting hole shape Square Adjustable mounting rails No
Material Steel Maximum weight capacity 90 kg
Frame type Open Type Wall mounted rack
Cable management No Certification RoHS
Design 2-post
Weight & dimensions
Width 504 mm Height 641 mm
Inner depth 29.2 cm Inner width 45 cm
Depth 305 mm
Weight & dimensions
Package weight 11 kg Package height 130 mm
Inner height 53.4 cm Package depth 670 mm
Mounting depth (max) 30.5 cm Package width 530 mm
Weight 10 kg
Packaging content
Nuts included Yes Manual Yes
Number of nuts 48
Technical details
Rack capacity 12U
Other features
Compliance industry standards EIA-310-D
