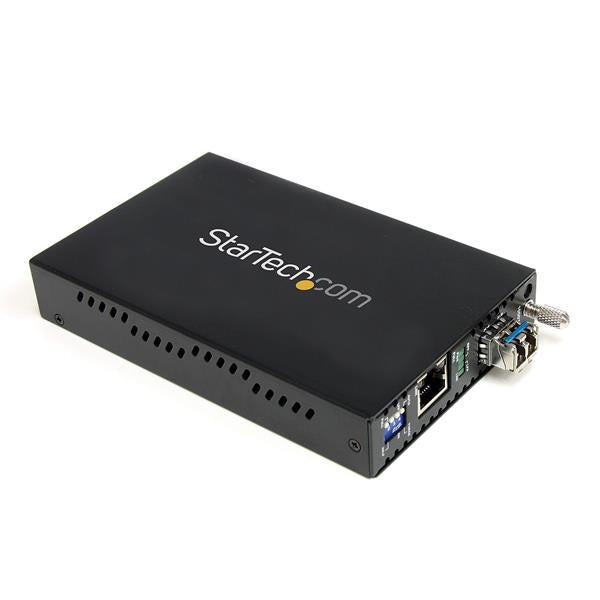

StarTech 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km (ET1000S40LC2)

Item model number: ET1000S40LC2

• Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
• Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
• Maximum Fiber Cable length of 40 Km
• Supports full or half-duplex operation
• Easy installation

Specification

Networking
Ethernet interface type	Gigabit Ethernet	Data transfer rate (max)	2000 Mbit/s
Auto MDI/MDI-X	Yes	Duplex system	Full, Half
Converter output interface	1000Base-LX,1000Base-SX	Converter input interface	1000Base-T
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces
Fiber optic connector	LC	Fiber ports quantity	1
Ethernet LAN (RJ-45) ports	1	DC-in jack	Yes

Performance
Wavelength	1310 nm	Mean time between failures (MTBF)	65000 h
Maximum transfer distance	40000 m	Fiber mode structure	Single-mode

Design
Colour of product	Black	Internal	No

Power
Output voltage	12 V

Power
Output current	1 A	External power adapter	Yes

Packaging content
Manual	Yes

Management features
Plug and Play	Yes

Operational conditions
Operating relative humidity (H-H)	10 - 90%	Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C

Certificates
Certification	CE, FCC	RoHS compliance	Yes

Weight & dimensions
Package weight	700 g	Package height	90 mm
Package depth	203 mm	Package width	135 mm
Weight	620 g

Other features
Dimensions (WxDxH)	95 x 160 x 20 mm	Full duplex	Yes
