Item model number: PM1115U2
  • Share a single USB printer with multiple users over a network
  • Print from any network computer, across the office or over the Internet
  • Provides a reliable Ethernet connection with 10Base-T/100Base-TX auto-sensing
  • Compliant with USB 2.0
  • Compatible with most standard printers
  • Easy to configure using Windows based setup program or web-based management
  • Supports LPR network printing, Bonjour Print Services
  • Full-duplex support
  • Jumbo frame support
  • Auto MDI-X support
  • Compact housing




Networking
Copper ethernet cabling technology 10BASE-T,100BASE-TX Networking standards IEEE 802.3,IEEE 802.3u
Network connection type Ethernet LAN Ethernet LAN data rates 10,100 Mbit/s
Protocols
Web-based management Yes Supported network protocols LPR
Ports & interfaces

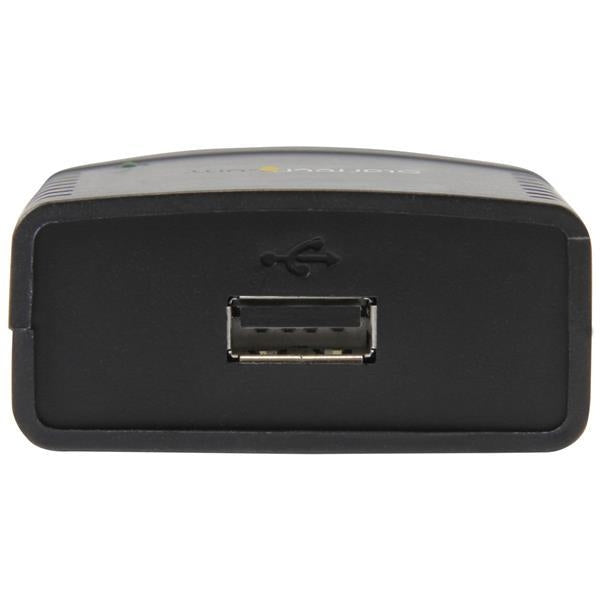

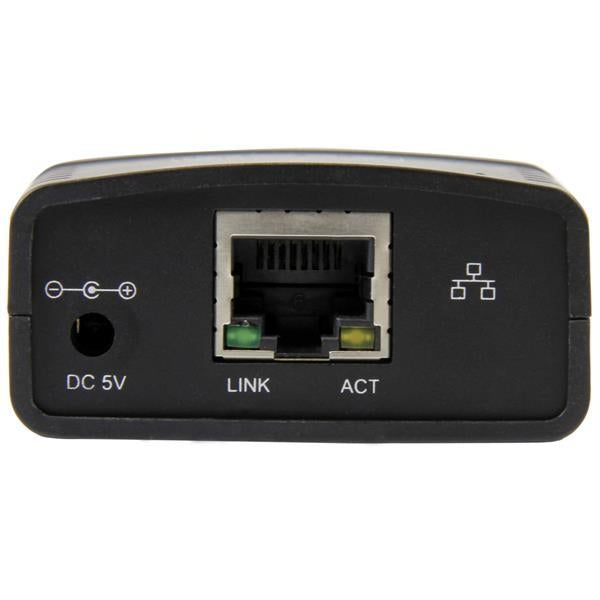

USB 2.0 ports quantity 1 Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Technical details
Built-in display No Colour of product Black
Internal No Chipset EST2862B
Software
Mac operating systems supported Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks Windows operating systems supported Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows RT,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Weight & dimensions
Width 52 mm
Weight & dimensions
Height 25 mm Depth 55 mm
Weight 60 g
Indication
LED indicators Activity, Link, Power Power LED Yes
Power
Input current 0.3
Operational conditions
Operating relative humidity (H-H) 10 - 90% Storage temperature (T-T) 0 - 40 °C
Certificates
Certification CE, FCC RoHS compliance Yes
Other features
Data transfer rate 100 Mbit/s
Packaging data
Package weight 280 g Package dimensions (WxDxH) 140 x 210 x 53 mm

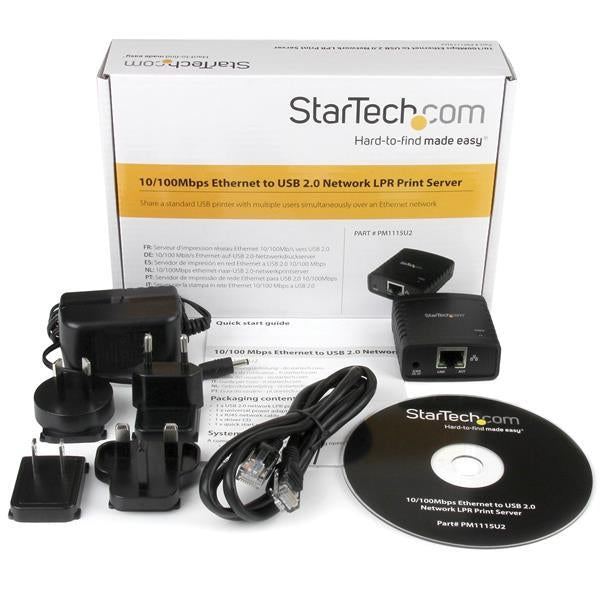

Packaging content
Cables included LAN (RJ-45) External power adapter No
User guide Yes
