Item model number: ST1000SPEX2L
  • A single 10/100/1000Mbps compatible RJ45 Ethernet port
  • Gigabit detection and Link/Activity LED indicators
  • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
  • Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
  • Jumbo frame support
  • Full and half duplex support
  • Supports Wake-on-LAN function
  • Crossover Detection & Auto-Correction (Auto MDI/MDI-X)




Ports & interfaces
Internal Yes Interface Ethernet
Connectivity technology Wired Host interface PCI-E
Bandwidth
Full duplex Yes Data transfer rate (max) 1000 Mbit/s
Networking
Cabling technology 10/100/1000BaseT(X) Ethernet LAN Yes
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x Chipset Realtek RTL8111E
Ethernet LAN data rates 10,100,1000 Mbit/s
Performance
Auto MDIX IEEE Yes Linux operating systems supported Yes
Windows operating systems supported Windows 2000,Windows 2000 Professional,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Weight & dimensions
Width 49 mm Package weight 127 g
Package height 34 mm Height 18 mm
Package depth 144 mm Depth 70 mm
Package width 176 mm Weight 30 g
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) 0 - 100 °C
Packaging content
Manual Yes
Other features

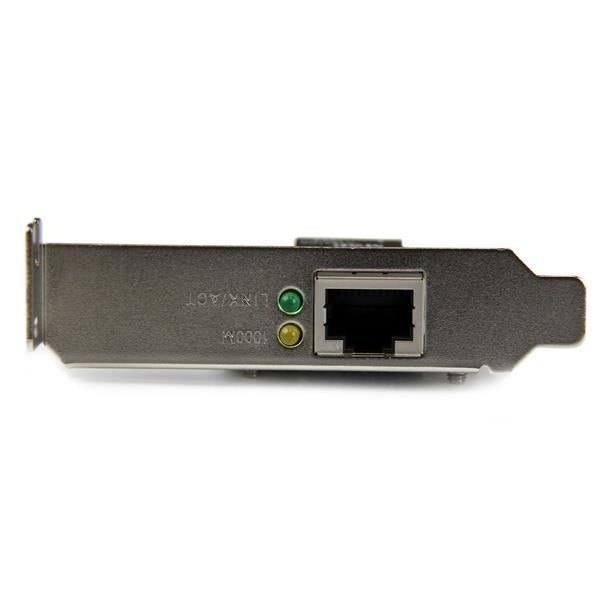

Power LED Yes Link/Act LED Yes
