Item model number: POEEXT1GAT

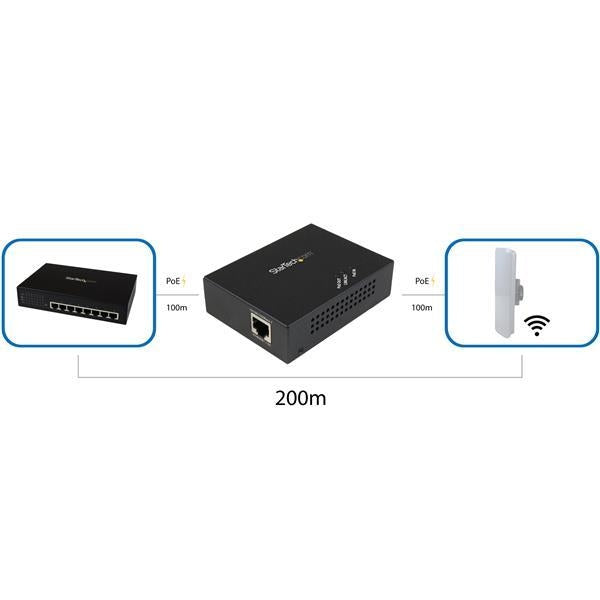

  • Deploy and access your Gigabit PoE-powered devices (PD) further away

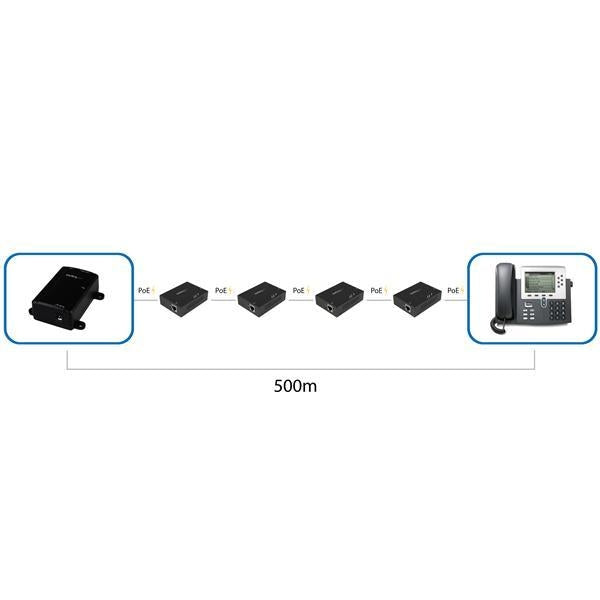

  • Extend your PoE PDs over longer distances by daisy-chaining four extenders up to 500m (1640ft) total range (reduced power output at each connection)
  • Compact, wall-mountable, and rugged metal housing for convenience and reliability
  • 2kV ESD and surge protection
  • Plug-and-play setup with no power adapter required
  • IEEE 802.3at 30W input to IEEE 802.3at/af 24W output
  • 52V to 56V output voltage
  • Automatically detects your connected PD to prevent damage if incorrectly installed




Performance
Full duplex Yes Auto MDIX IEEE Yes
Data transfer rate 2000 Mbit/s Mean time between failures (MTBF) 50000 h
Jumbo frames support No Plug and Play Yes
Power over Ethernet (PoE) Yes Maximum transfer distance 100 m
Type Network repeater Duplex system Full, Half
Auto-negotiation Yes
Networking
Cabling technology 10/100/1000Base-T(X) Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Ports & interfaces
Power over Ethernet (PoE) ports quantity 2
Design
Housing material Steel Colour of product Black
Design
Certification CE, FCC LED indicators Activity, Link, PoE
RoHS compliance Yes
Power
Power consumption (max) 3.2 W
Operational conditions
Operating relative humidity (H-H) 5 - 95% Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -10 - 85 °C
Weight & dimensions
Width 69 mm Height 25 mm
Depth 94 mm Weight 188 g
Packaging content

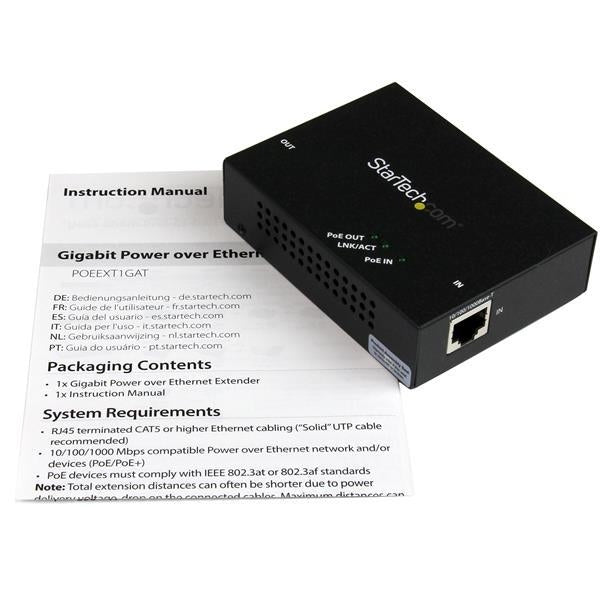

Manual Yes
Packaging data
Package weight 339 g Package height 67 mm
Package depth 203 mm Package width 134 mm
