Item model number: POEINJ1G
  • Easily connect, power, and operate a Gigabit PoE-powered device (PD)
  • Supplies up to 30-watts power output
  • Flexible setup, with a desktop-sized, or surface-mountable housing
  • Save money by using your existing Cat5 or better Ethernet cable
  • Fast, plug-and-play setup and operation, with no configuration required
  • Provides one PoE+ (PSE, power and data) 10/100/1000Mbps compliant RJ45 port - 802.3at and 802.3af
  • Integrates shielded RJ45 connectors
  • Automatically detects the powered device to provide the appropriate level of power output




Networking
Cabling technology 10Base-T, 100Base-TX, 1000Base-T Ethernet interface type Fast Ethernet, Gigabit Ethernet
Cable standard Cat5 Power over Ethernet (PoE) Yes
Duplex system Full Ethernet LAN data rates 10,100,1000 Mbit/s
Features
Maximum operating distance 100 m Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Plug and Play Yes Colour of product Black
LED indicators Power Certification RoHS, CE, FCC
Ports & interfaces
Ethernet LAN (RJ-45) ports 2 DC-in jack Yes
Power
Power over Ethernet (PoE) voltage 48 V
Power
Output current 0.64 A Input current 0.75
Input voltage 100 - 240 Output power 30 W
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Package length 19 cm Package weight 995 g
Package height 76 mm Dimensions (WxDxH) 63 x 70 x 25 mm
Package width 230 mm Weight 52 g

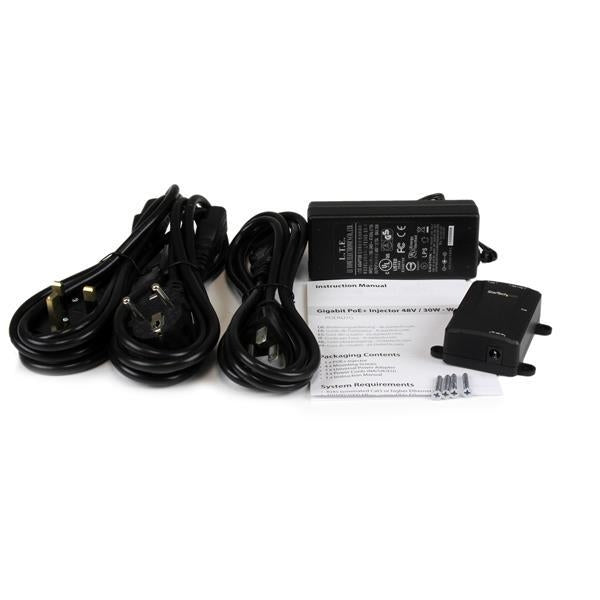

Packaging content
Manual Yes Power cord included Yes
