Item model number: GS105NA
  • The standards-based ProSAFE Gigabit switches senses and adjusts for network speed and cabling type automatically

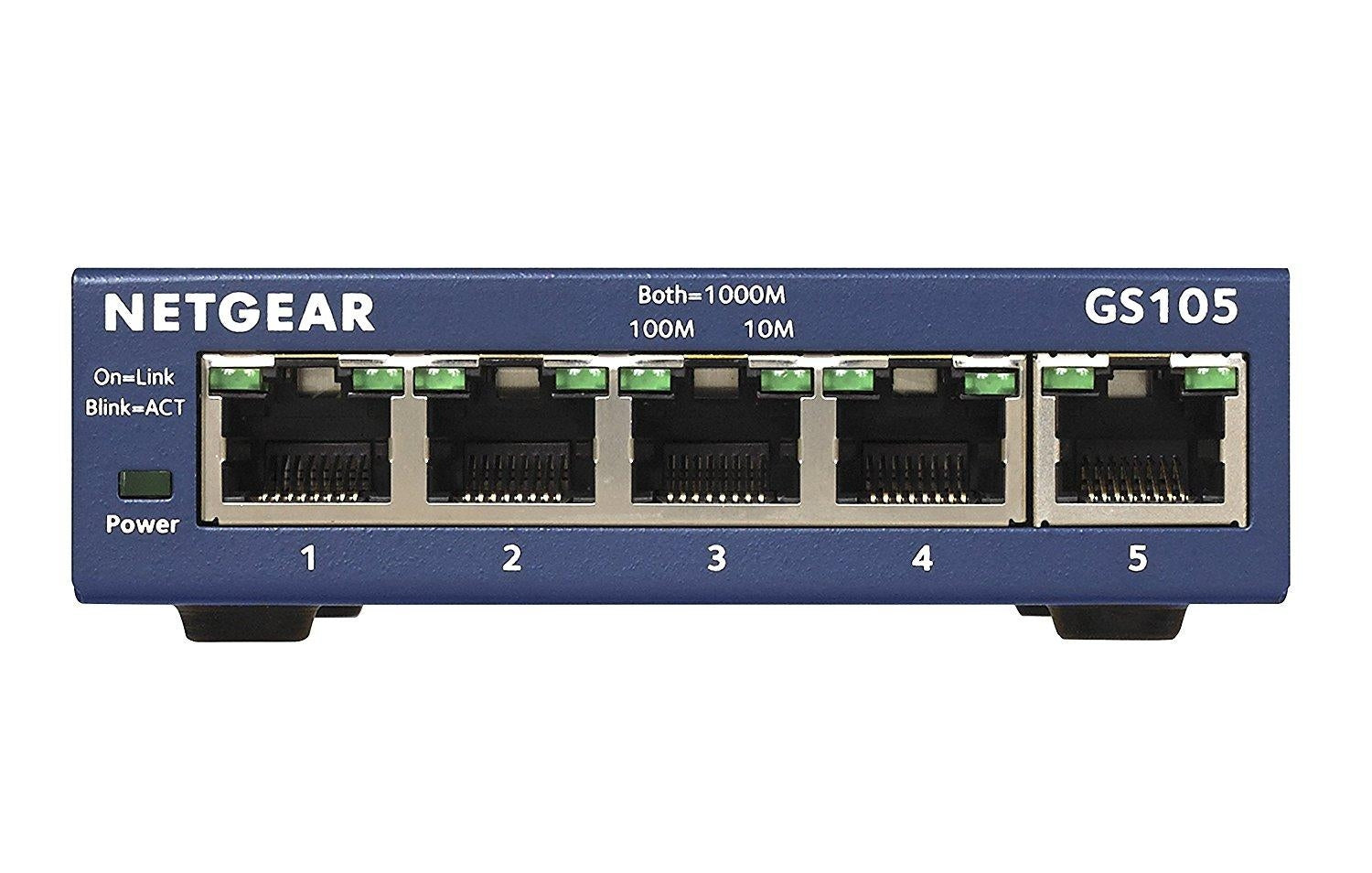

  • Front panel LEDs keep you informed of power status, link speed and link activities
  • Superior network performance at non-blocking rate delivers true Gigabit speed with no compromise
  • Simple set up with no software or configuration needed
  • LIFETIME Warranty
  • Desktop Switch has five Gigabit auto-sensing UTP ports
  • Simple set up requires no software installation
  • Fanless design for noiseless operation
  • Backed by lifetime warranty
  • Device measures 3.7 x 1.1 x 4.1 inches (WxHxD)




Management features
Switch type Unmanaged network switch
Ports & interfaces
Copper ethernet cabling technology 1000Base-T,100Base-TX,10Base-T Basic switching RJ-45 Ethernet ports quantity 5
Networking
Full duplex Yes Flow control support Yes
Networking standards IEEE 802.3,IEEE 802.3u,IEEE 802.3z
Data transmission
Maximum data transfer rate 1 Gbit/s Supported data transfer rates 10/100/1000 Mbps
MAC address table 8000 entries
Design
Safety UL (UL 60950), CUL, C-Tick, CE Mark, TUV (EN 60950)
Performance
Mean time between failures (MTBF) 87600 h
Power
Power consumption (typical) 14.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
System requirements
Compatible operating systems Windows, Mac OS, NetWare, Linux
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Weight & dimensions
Weight 490 g
Other features
Connectivity LEDs Yes Networking features Gigabit Ethernet

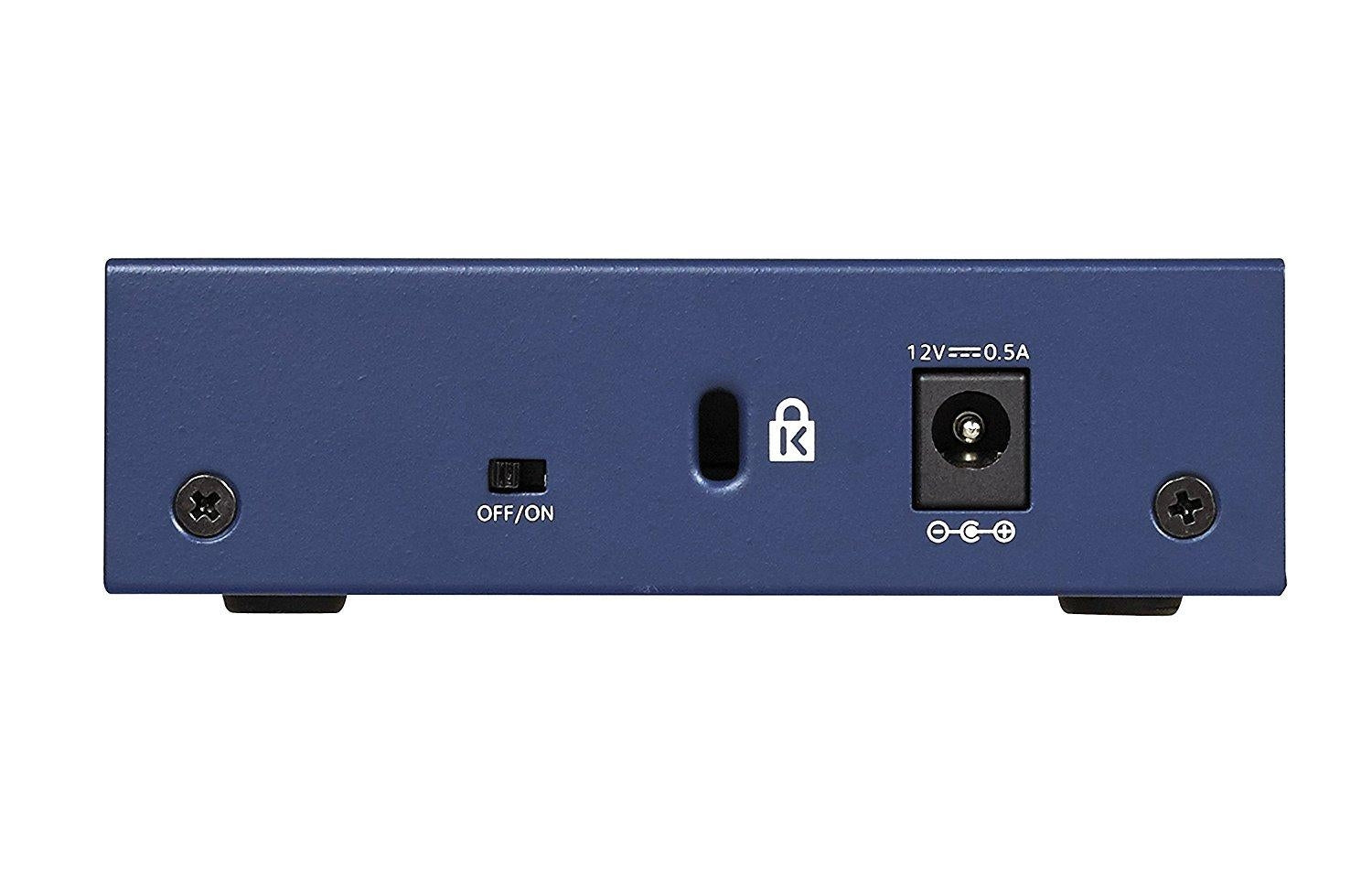

Power requirements 12VAC, 1.2A Electromagnetic emissions FCC Class A & VCCI Class A, CE Class A, MIC
Latency 20 µs Dimensions (WxDxH) 158 x 105 x 25 mm
I/O ports 5x 10/100/1000 (RJ-45) Bandwidth 10 Gbit/s
